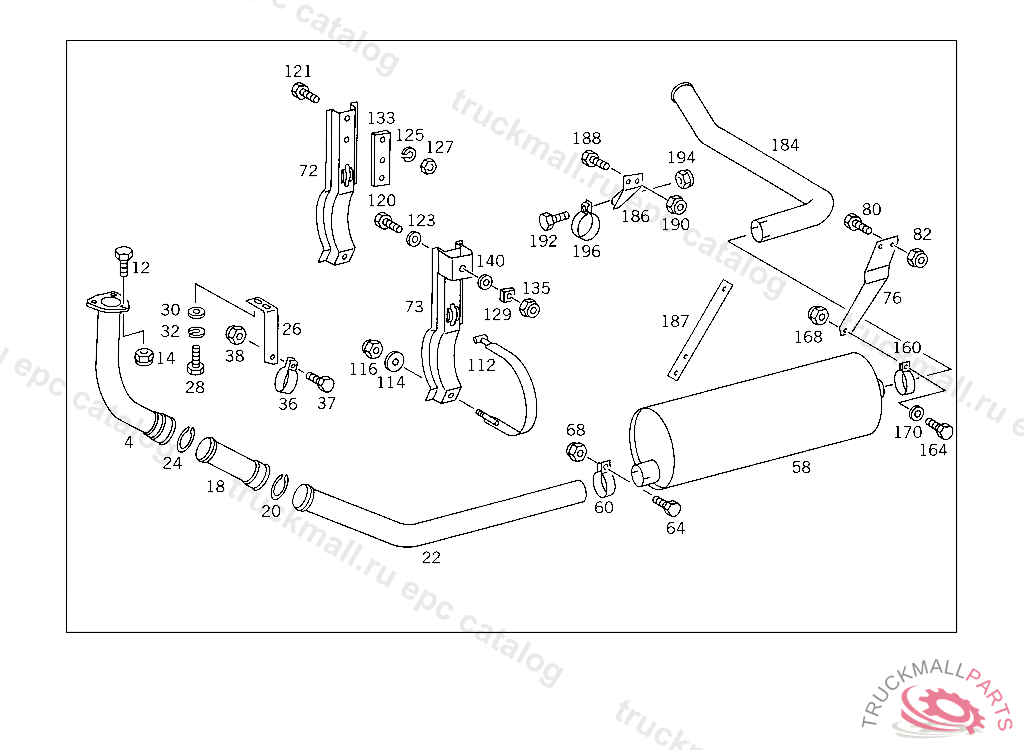

Поз.
Артикул
Описание
4
EXHAUST PIPE FRONT
12
SCREW , Replaced By: N000931012186
12
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
14
NUT CONNECTOR TO EXHAUST MANIFOLD
18
CONNECTOR LEFT
20
SEAL RING ,5 129244
22
EXHAUST PIPE CENTRAL,6 012581
22
EXHAUST PIPE , Replaced By: A3974901119
24
SEAL RING ,5 129244
26
BRACKET FRONT EXHAUST PIPE
28
SCREW , Replaced By: N308676014008
30
WASHER , Replaced By: N000125015019
32
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
36
CLAMP , Replaced By: N071555090502
37
SCREW , Replaced By: N304017010002
38
NUT , Replaced By: N910113010000
58
EXHAUST MUFFLER
60
CLAMP , Replaced By: N071555094502
64
SCREW , Replaced By: N304017010002
68
NUT , Replaced By: N910113010000
72
BRACKET EXHAUST MUFFLER SUSPENSION
72
BRACKET , Replaced By: A6214910641
76
SUPPORT , Replaced By: A3974920216
76
SUPPORT REAR EXHAUST MUFFLER
112
STRAP PARTICLE FILTER
112
STRAP PARTICLE FILTER
112
STRAP , Replaced By: A6554900942
114
SPHERICAL WASHER EXHAUST MUFFLER AND STRAP TO BRACKET
116
NUT , Replaced By: N910113010000
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
123
WASHER , Replaced By: N000125015019
127
NUT , Replaced By: N910113014001
129
SHIM UNDERRUN PROTECTION AND BRACKET TO FRAME
133
BASE PLATE BRACKET TO FRAME
135
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
140
WASHER
160
CLAMP , Replaced By: N071555090502
164
SCREW , Replaced By: N304017010002
168
NUT , Replaced By: N910113010000
170
WASHER AIR RESERVOIR TO REAR CROSS MEMBER
170
WASHER CROSS MEMBER TO REINFORCEMENT
184
REAR EXHAUST PIPE , Replaced By: A3974921204
184
REAR EXHAUST PIPE ,5 134921
186
BRACKET BRACKET TO SIDE PART,FRONT,5 433281
186
BRACKET , Replaced By: A3974922841
188
SCREW EXHAUST PIPE TO BRACKET
188
SCREW REAR EXHAUST PIPE TO MUFFLER
190
NUT , Replaced By: N910113010000
192
SCREW , Replaced By: N304017010002
194
NUT , Replaced By: N910113010000
196
CLAMP , Replaced By: N071555090502
