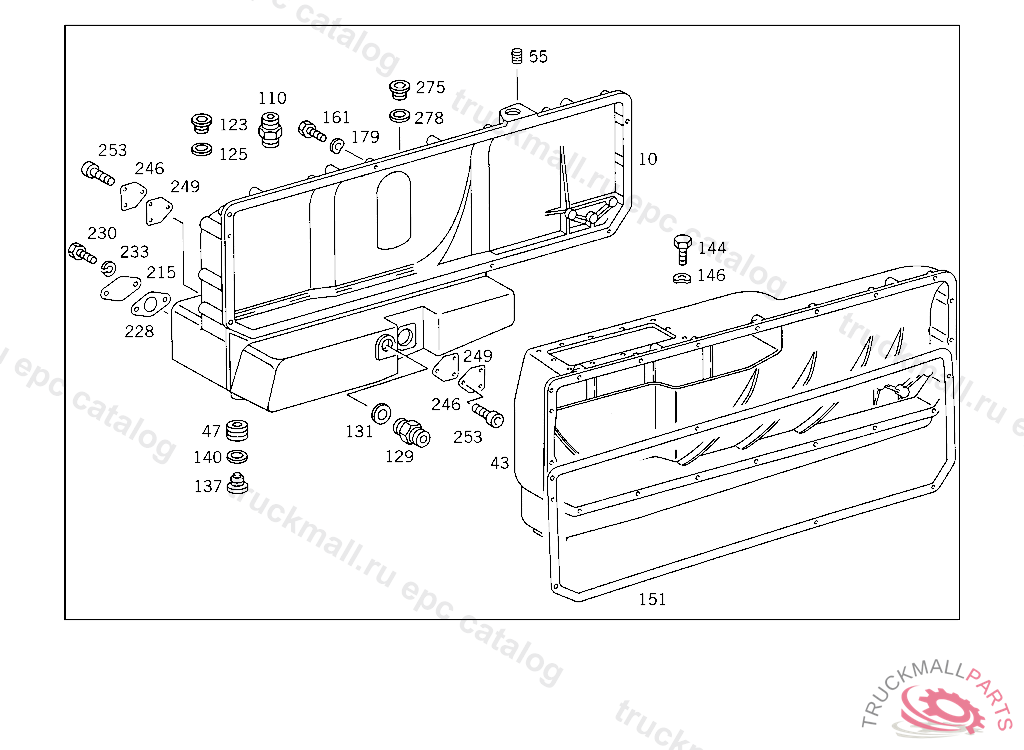

Поз.
Артикул
Описание
10
OIL PAN
10
OIL PAN
10
OIL PAN
10
OIL PAN
10
OIL PAN
10
OIL PAN ,030352
10
OIL PAN , OIL SCAVENGE BORE TO BE LOCKED BY MEANS OF 007603 018101 SEAL RING AND 915048 018000 SCREW PLUG030363 407.913407.907,911
10
OIL PAN
10
OIL PAN , Replaced By: A4070101313
10
OIL PAN , Replaced By: A4070102213
10
OIL PAN , Replaced By: A4070102813
10
OIL PAN ,030351, Replaced By: A4270101113, +001A4270100272, +001A4271800852, +001A4271800952, +002A0065428417
10
OIL PAN , 407030610 427002385, Replaced By: A4470100313, +001A4270100272, +001A4271800852, +001A4271800952
10
OIL PAN ,030362 407.913407.907,911, Replaced By: A4270101013, +001A4270100272, +001A4271800852, +001A4271800952, +002A0065428417
10
OIL PAN , Replaced By: A4470100913, +001A4270100272, +001A4271800852, +001A4271800952, +002A0065428417
10
OIL PAN , Replaced By: A4070104513
10
OIL PAN ,030351, Replaced By: A4270102713, +001A4270100272, +001A4271800852, +001A4271800952, +002A0065428417
10
OIL PAN ,030351, Replaced By: A4270102713, +001A4270100272, +001A4271800852, +001A4271800952, +002A0065428417
10
OIL PAN , Replaced By: A4470100913, +001A3559970149, +001A4079975250, +002N000933010105
43
OIL PAN
47
THREADED INSERT
47
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
47
THREADED INSERT
55
THREADED INSERT ,5 462573
110
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
123
SCREW PLUG
125
SEAL RING OIL DRAIN 26X34 MM
129
SCREW FITTING
131
SEAL RING OIL LINE TO OIL COOLER
137
SCREW PLUG
137
SCREW PLUG
137
SCREW PLUG , Replaced By: A4039970032
137
SCREW PLUG , Replaced By: A4039970230
140
SEAL RING OIL DRAIN 26X34 MM
144
SCREW PIPE CLAMP
144
SCREW , Replaced By: N304017008021
146
SPRING WASHER , Replaced By: N000137008212
146
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
151
GASKET OIL PAN TO CYLINDER CRANKCASE
151
GASKET , Replaced By: A4490140022
151
GASKET , Replaced By: A4470140022
151
GASKET OIL PAN TO CYLINDER CRANKCASE
151
GASKET OIL PAN TO CYLINDER CRANKCASE
161
SCREW BRACKET TO EXHAUST PIPE,5 528482
161
SCREW BRACKET TO INTAKE MANIFOLD M 8X135
161
SCREW FAN TO CRANKSHAFT PULLEY
161
SCREW , Replaced By: N304017008018
161
SCREW BRACKET TO ALTERNATOR
161
SCREW ANTI-FREEZE PUMP TO BRACKET,950272
161
SCREW BRACKET TO ENGINE
161
SCREW SUPPORT TO FENDER
161
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
161
SCREW BRACKET TO 3/2-WAY VALVE
161
SCREW 3/2-WAY VALVE TO BRACKET M 8X95
161
SCREW SUPPORT TO INTAKE PIPE
179
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
179
WASHER EXHAUST MUFFLER TO STRAP
179
WASHER , Replaced By: N000125008443
179
SPRING WASHER , Replaced By: N000137008212
215
FLANGE
215
FLANGE COOLING WATER FEED LINE LOCK
228
GASKET , Replaced By: N917003040006
228
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
228
GASKET OUTLET TO ENGINE
230
SCREW , Replaced By: N304017010002
230
SCREW BRACKET TO SIDE MEMBER
230
SCREW END PIECE TO EXHAUST PIPE M 10X25
233
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
246
COVER
249
GASKET
249
GASKET , Replaced By: A4470140080
253
SCREW , Replaced By: N000000000190
253
SCREW
275
SCREW PLUG BELL HOUSING
278
SEAL RING VALVE TO VALVE,K 025179
278
SEAL RING SWITCH TO CASE COVER
999
OIL PUMP , 001923-121799 TOOTH WIDTH 28 MM PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
HOUSING , 001923-121799
999
SUCTION PIPE OIL PUMP
999
SUCTION PIPE OIL PUMP
999
COVER OIL PAN
999
SCREW PLUG
999
SCREW INTAKE MANIFOLD TO CYLINDER HEAD M 8X145
999
SCREW PLUG OIL FILLING
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
CLAMP HOSE TO COOLING WATER PIPE
