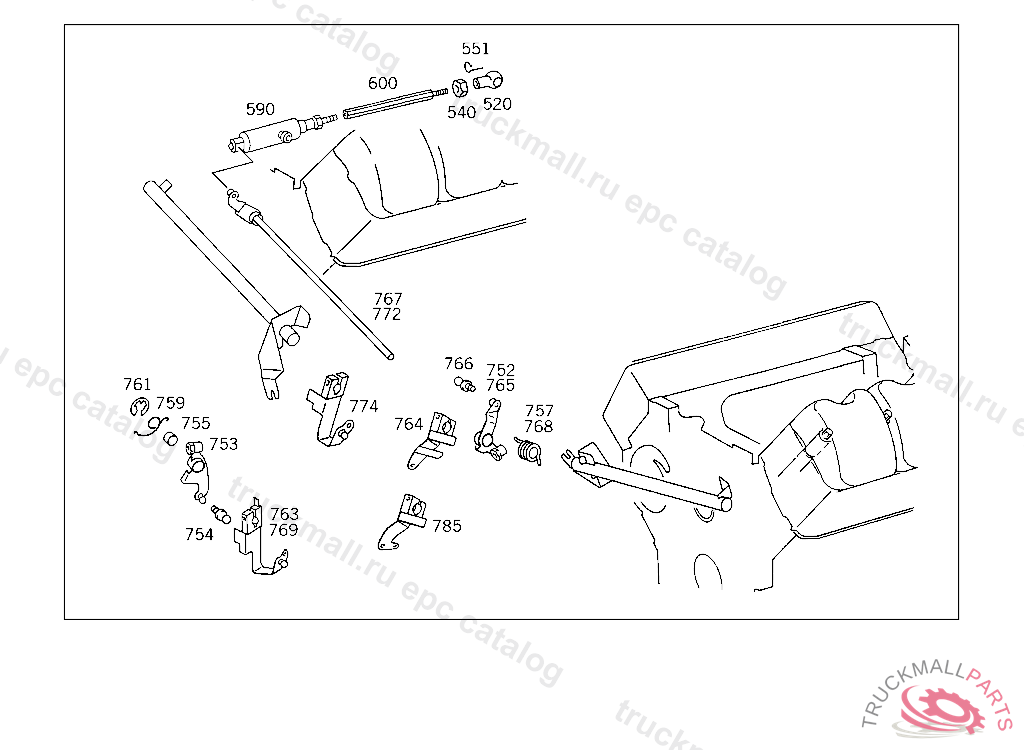

Поз.
Артикул
Описание
520
BALL SOCKET ROD TO LEVER
520
BALL SOCKET
520
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
540
NUT RELAY TO BRACKET M5
540
NUT IN CASE OF SUBSEQUENT INSTALLATION
540
NUT , Replaced By: N304032005005
540
NUT BALL PIVOT TO LEVER
551
CIRCLIP. SECURING CLIP CONTROL ROD
551
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
590
CYLINDER (OPERATING CYLINDER)
590
CYLINDER , NOT USED
590
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
600
ROD CYLINDER,927207/88
600
ROD CYLINDER
600
ROD , Replaced By: A3660720324
600
ROD
600
ROD CYLINDER, 401-403 266368 421-423 177788 442 007644
600
ROD
600
ROD , Replaced By: A4290720024
752
LEVER (DRAG LINK),CONTROL SHAFT
753
LEVER , Replaced By: A4420701721
753
LEVER (DRAG LINK),CONTROL SHAFT
754
BALL PIVOT , Replaced By: A3129910120
754
BALL PIVOT LEVER
755
BUSHING MOUNTING
757
SPRING CONTROL LEVER TO BEARING TUBE, ELIMINATED,NO LONGER REQUIRED
759
SPRING CONTROL
759
SPRING (RELEASE SPRING)
761
CLIP CABLE TO BRACKET,5 318121
763
LEVER INJECTION PUMP CONTROL
763
LEVER , Replaced By: A4420701621
764
LEVER INJECTION PUMP CONTROL
765
LEVER (DRAG LINK),CONTROL SHAFT
766
BALL PIVOT LEVER
766
BALL PIVOT , Replaced By: A3129910120
767
SHAFT ,460462
768
SPRING CONTROL LEVER TO BEARING TUBE, ELIMINATED,NO LONGER REQUIRED
769
LEVER INJECTION PUMP CONTROL
772
SHAFT
772
SHAFT ,460462
774
LEVER
785
LEVER
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER
999
LEVER
999
ROD (PUSH ROD),SPRING-LOADED
999
ROD CONTROL
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4220700621, +001A4220720621
999
BRACKET FINAL CONTROL ELEMENT
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET TELMA BRAKE CUT-OFF WHEN ACTUATING ACCELERATOR PEDAL
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET , Replaced By: A4030701023, +001A4420701319, +001A4220700921, +001A4030721250, +001A4429935010, +001N000931006118, +001N000934006007, +001N006888004012, +001N912004006102
999
ROD
999
ROD
999
ROD
999
BRACKET FINAL CONTROL ELEMENT
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
ROD
999
LEVER , Replaced By: A4420702121
999
SHAFT , Replaced By: A4220700723
999
BRACKET CONTROL LEVER
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
ROD (PUSH ROD),SPRING-LOADED
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4070704621
999
BRACKET BRACKET WITH TENSION SPRING TO FINAL CONTROL ELEMENT
999
LEVER
999
ROD
999
PIN , Replaced By: A4221440174, +001N999900008004
999
LEVER , Replaced By: A4410700621
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
WASHER INTERMEDIATE SPEED STOP TO INJECTION PUMP
999
CYLINDER , Replaced By: A0004304826
999
REPAIR KIT (POWER CYLINDER)
