Поз.
Артикул
Описание

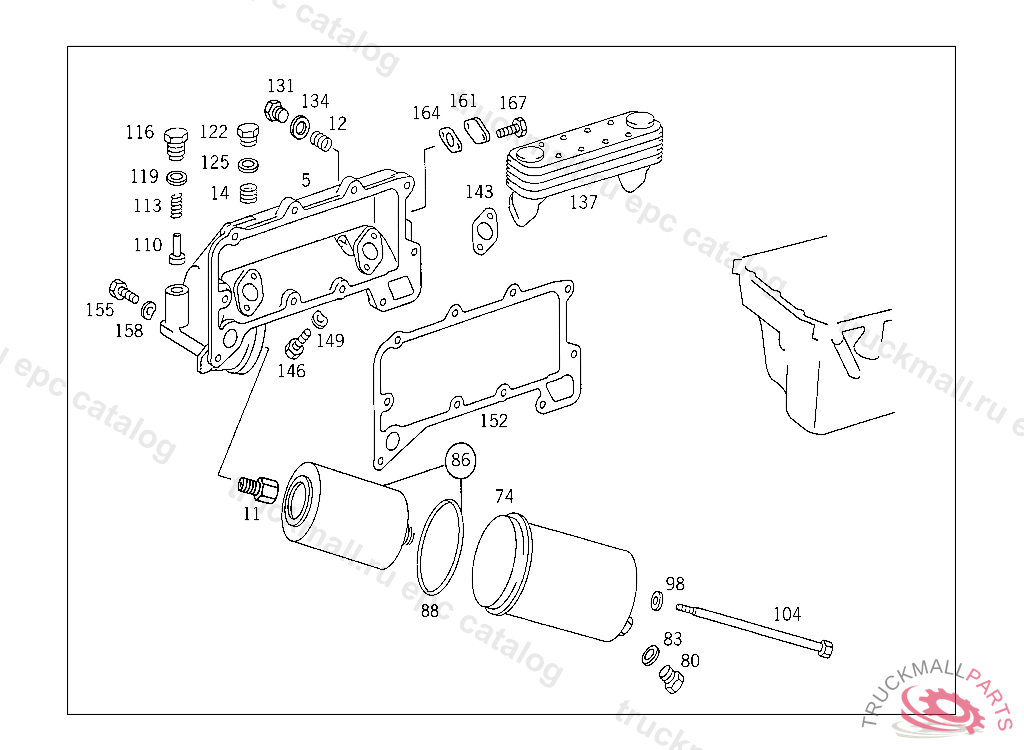

12
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
110
VALVE
113
SPRING BY-PASS VALVE
116
SCREW PLUG
119
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
122
SCREW PLUG
125
SEAL RING OIL DRAIN 26X34 MM
131
SCREW PLUG , Replaced By: A1119970330
134
SEALING RING. SEAL RING ENGINE BREATHING
143
SEAL. GASKET , Replaced By: A3661880880
146
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
146
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
146
SCREW VALVE TO BRACKET
146
SCREW ON STOP M 8X65
149
SPRING WASHER , Replaced By: N000137008212
149
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
152
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
155
SCREW CONNECTOR TO REAR SHIFTING ROD
155
SCREW PIPE ELBOW TO BRACKET M 10X50
155
SCREW SHIFTING ROD TO SHIFT LEVER
158
SPRING WASHER STEERING COLUMN BRACKET TO CAB
