Поз.
Артикул
Описание

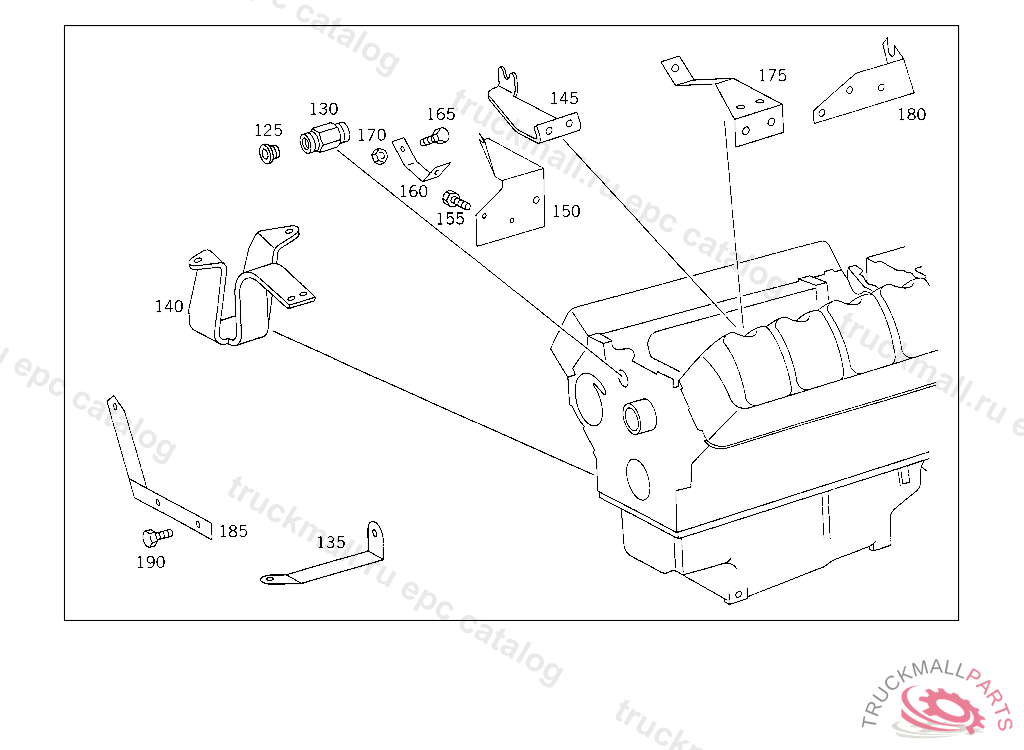

125
SCREW PLUG
130
INTERMEDIATE PIECE OIL PRESSURE GAUGE TO CYLINDER CRANKCASE
130
INTERMEDIATE PIECE OIL PRESSURE SENDER UNIT CONNECTION
135
BRACKET
135
BRACKET COMPRESSED AIR LINE MOUNTING
135
BRACKET
140
ENGINE SUPPORT FRONT
145
BRACKET
150
BRACKET BRACKET TO COMPRESSED AIR LINE BRACKET,REAR
155
HEXAGON HEAD BOLT BELLOWS TO BRACKET M8X12
155
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
155
SCREW , Replaced By: N304017008039
160
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
165
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
170
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
175
BRACKET CHOKE
180
BRACKET BRACKET TO INTAKE PIPE
185
BRACKET COOLING WATER PIPE TO RADIATOR,5 901844
190
SCREW ENGINE LEFT FRONT SUPPORT TO CRANKCASE M 14X35
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
999
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
999
SCREW SUPPORT TO FENDER
999
BALL PIVOT ROD TO INJECTION PUMP LEVER
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
SCREW , Replaced By: N304017008018
999
BRACKET BRACKET TO INTAKE PIPE
999
BRACKET BRACKET TO LONGITUDINAL INTAKE PIPE,064377
999
BRACKET , Replaced By: A6204202686
999
SPACER TUBE
999
BRACKET AT INTAKE MANIFOLD, DISCONTINUED,PART IS NO LONGER REQUIRED
999
BRACKET BEARING BRACKET
999
LEVER (LOAD RANGE SENSOR)
999
BRACKET BEARING BRACKET
999
OIL PAN ,176066
999
OIL PAN , Replaced By: A4410100413
999
OIL PAN , Replaced By: A4410100313
999
SHAFT ,460461, Replaced By: A4420700423, +001N071803010102, +001N913004006002
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
ROD
999
OIL PAN ,176065, Replaced By: A4410100013, +001A4219970072, +001N913004006002
999
LEVER AT INJECTION PUMP
999
ROD
999
LEVER , UP TO ENGINE 616806 EXCEPT FOR 616100, Replaced By: A4420700122, +001A4420700140
999
ROD
999
ROD
999
BRACKET
999
BOOT ROD
999
ROD CONTROL
999
SCREW PLUG OIL COOLER,5 360280
