Поз.
Артикул
Описание

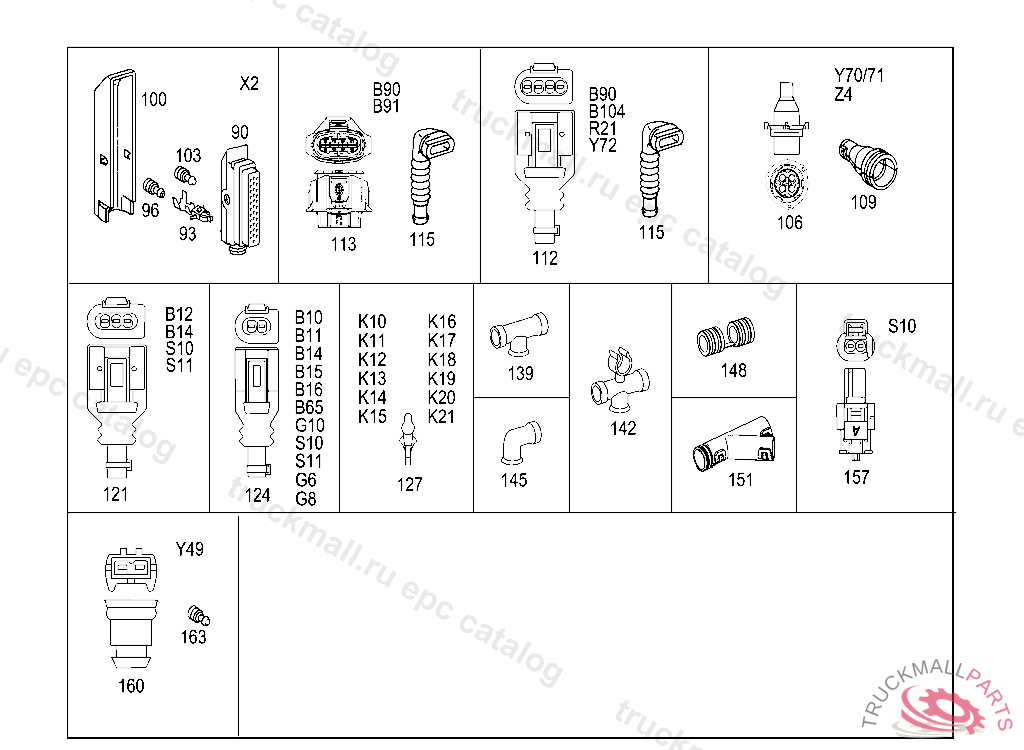

90
PIN BUSHING HOUSING WITH FIFTY-FOUR PINS,ABS ELEKTRONIK
93
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
96
CABLE SEAL. GASKET CONTROL-UNIT PLUG-CONNECTION
100
CAP PIN BUSHING HOUSING,FIFTY-FOUR PIN
103
STOP PLUG. PLUG CONTROL-UNIT PLUG-CONNECTION
106
PARTS KIT PLUG CONNECTION,TACHOGRAPH SENSOR X36, 4PIN, TO BE ADAPTED DURING ASSEMBLY
109
BOOT
112
PLUG CHARGE AIR TEMPERATURE SENSOR
113
TS PLUG OIL PRESSURE COMBINATION SENSOR
115
BOOT HEATER FLANGE CONNECTOR COVER
115
BOOT
115
BOOT OIL COMBINATION SENSOR
121
TS PLUG START-STOP SWITCH
124
TS PLUG REFRIGERANT TEMPERATURE SENDER UNIT
127
CABLE SHOE
139
DISTRIBUTOR17/10/13
139
DISTRIBUTOR I.D.: 17/10/13,103337
139
DISTRIBUTOR I.D.: 10/7,5/7,5
139
DISTRIBUTOR I.D.: 17/7,5/13,202739
139
DISTRIBUTOR
142
DISTRIBUTOR I.D.: 17
145
CONNECTOR I.D.: 13, 90°,202739
148
DISTRIBUTOR13/10
151
DISTRIBUTOR I.D.: 17/22/17
157
PLUG AGN HWL TANK HEATER
160
PARTS KIT TWO PIN JACK CONNECTOR
160
PLUG HOUSING. PLUG BIPOLAR
163
STOP PLUG. PLUG CONTROL-UNIT PLUG-CONNECTION
