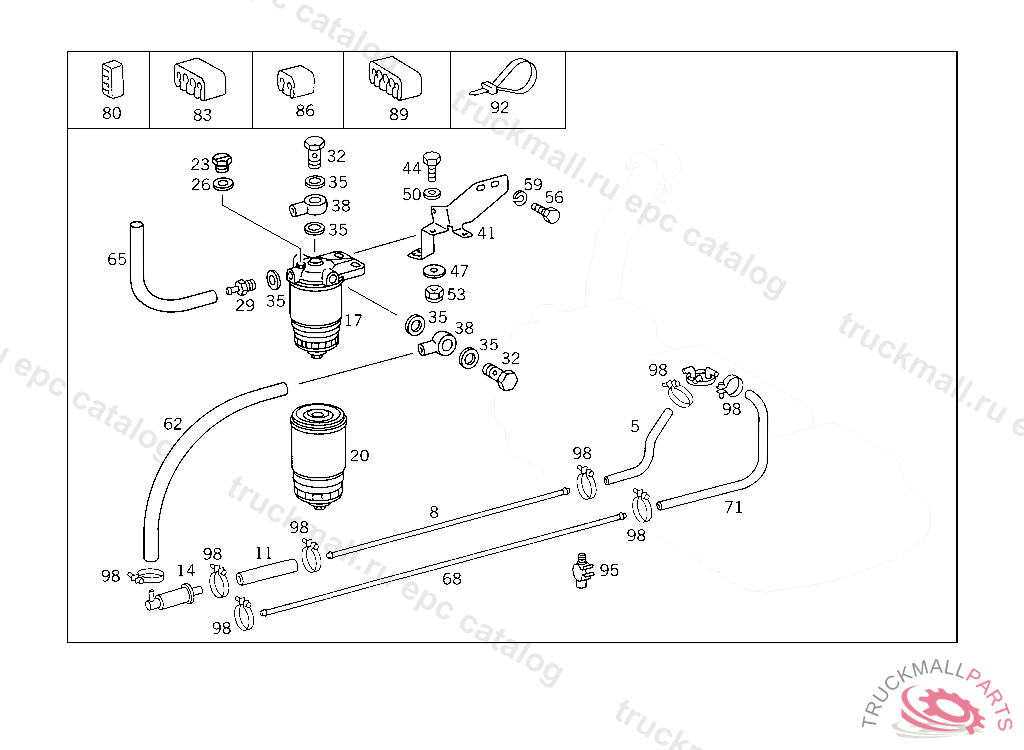

Поз.
Артикул
Описание
5
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
8
LINE FEED LINE 3190 MM
11
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
14
FUEL FILTER
14
FUEL FILTER
62
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
68
LINE RETURN LINE 3390 MM
71
HOSE , Replaced By: A4614760226
71
HOSE BETWEEN RETURN LINE AND FUEL TANK TO A 461 470 00 40
83
DAMPING STRIP
86
RUBBER SECTION20 MM, ORDER BY THE METER
89
DAMPING STRIP BRAKE LINE TO FRAME
92
LOOM TIE LINE MOUNTING 280 MM
95
BRACKET LINE MOUNTING 11 MM
98
LOOM TIE
