Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 320
›
463.245 TO CHASSIS 144225
›
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›

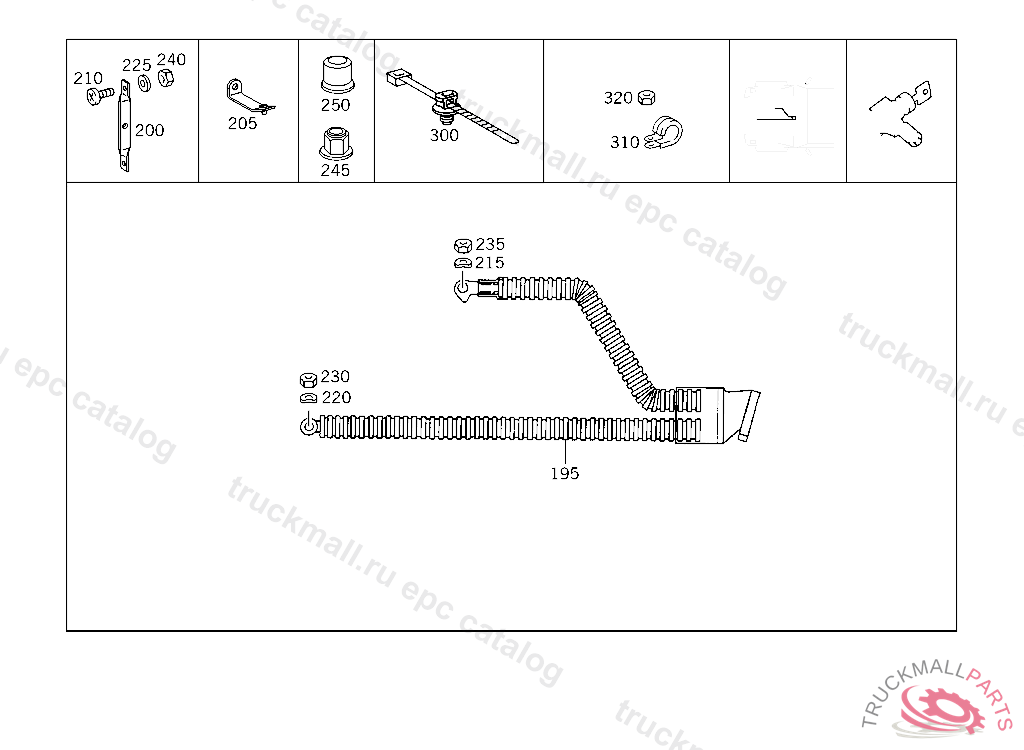

030 BATTERY,STARTER/ALTERNATOR CABLE IL. 2
Mercedes N910112006001 - Гайка M6
G 320 463.245 TO CHASSIS 144225
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 030 BATTERY,STARTER/ALTERNATOR CABLE IL. 2
Поз.
Артикул
Описание
195
A4635401930
POSITIVE CABLE STARTING MOTOR CABLE HARNESS PLUGCONNECTION
200
A4635458940
BRACKET STARTING CABLE TO TRANSMISSION
210
N007985005149
SCREW JUNCTION BOX TO BRACKET
215
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
220
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
225
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
230
N304032006004
NUT SPRING-LOADED PUSH ROD
235
N304032008006
NUT
240
N910113005001
NUT HOOK TO BRACKET
245
A0005480472
NUT CABLE TO ALTERNATOR,TERMINAL 30
250
N913018013201
PROTECTION CAP , Replaced By: A0008310929
250
A0008310929
CAP SCREW HEAD COVERING
300
A0059976290
CABLE STRAP LINE MOUNTING 260X3.3MM
310
N916016016201
CLAMP OIL DIPSTICK TO BRACKET
320
N910112006001
NUT , Replaced By: N913023006001
