Поз.
Артикул
Описание

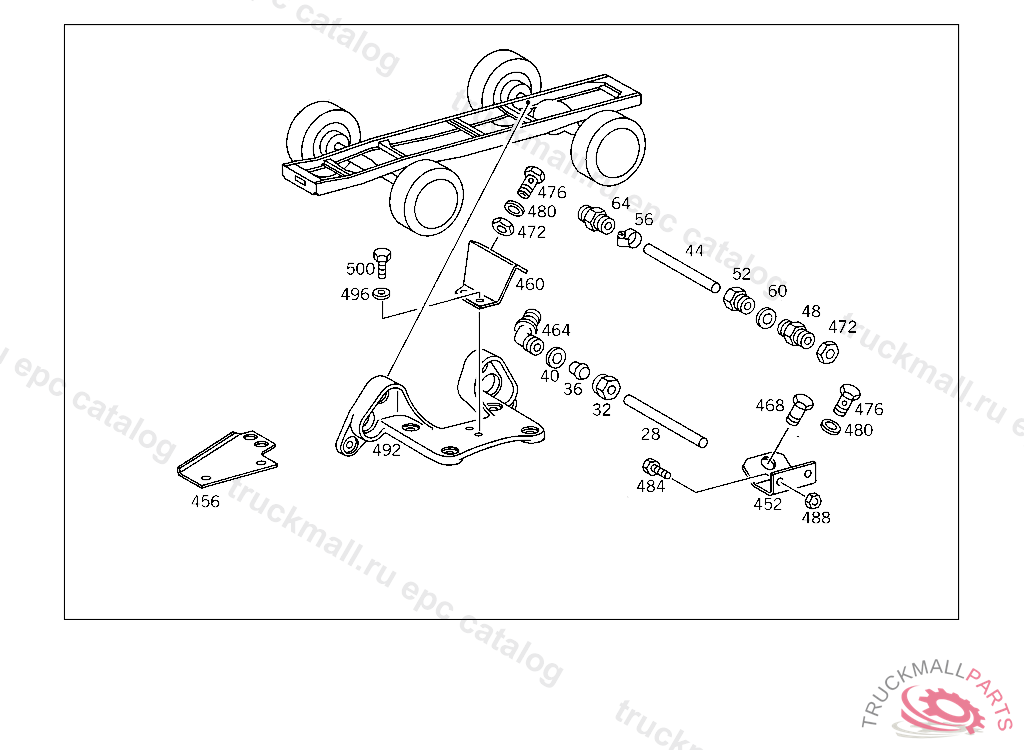

28
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
32
UNION NUT LINE CONNECTION
32
UNION NUT BUTT SCREW CONNECTION
36
GLAND LINE CONNECTION
40
THRUST RING BUTT SCREW CONNECTION
44
HOSE FRONT/REAR AXLE BRAKE HOSE 13X22 MM, ORDER BY THE METER
48
FITTING BRAKE HOSE,5 418584
52
UNION NUT FEED LINE
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP , Replaced By: N000000000667
60
SEAL RING , Replaced By: N007603012121
60
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
64
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
64
FITTING , Replaced By: A0029971172
64
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
452
BRACKET LINE MOUNTING, NOT USED
456
BRACKET LINE MOUNTING, NOT USED
460
BRACKET LINE MOUNTING
464
ELBOW FITTING , Replaced By: A0004294638
464
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
468
ADAPTER FITTING LINE MOUNTING M 22X1,5,5 418584
468
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
472
NUT CHECK VALVE TO AIR RESERVOIR
472
NUT BRACKET TO SIDE MEMBER
476
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
480
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
484
SCREW EXHAUST PIPE TO BRACKET
484
SCREW , Replaced By: A4609900601
488
NUT , Replaced By: N913004008001
488
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
492
BEARING BRACKET COMBINATION CYLINDER
496
WASHER WORM AND SHAFT TO BRACKET
500
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING LINE MOUNTING
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
VALVE (TWO-/TWO-WAY VALVE)
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING ,5 418584
999
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
SWITCH RELAY VALVE,CONNECTIONS: "2" ,6-7BAR
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
999
VALVE (THROTTLE VALVE)
999
FITTING , NOT USED
999
SEAL RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
FITTINGNO.II, 12 MM
999
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
999
SOCKET WRENCH
999
BEARING BRACKET , Replaced By: A6164200178
999
BRACKET TRAILER BRAKE VALVE,5 276599
999
BRACKET SOLENOID VALVE
999
BRACKET BRAKE HOSE MOUNTING
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 281547, Replaced By: A6154311440
999
BRACKET LINE MOUNTING
999
BEARING BRACKET COMBINATION CYLINDER
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
STRAP , Replaced By: A6214900242
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
STRAP , Replaced By: A6554900942
999
STRAP PARTICLE FILTER
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
VALVE CAP
999
VALVE INSERT. VALVE CAP 3/2-WAY VALVE,CONNECTION: "2"
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N913004008001
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
