Поз.
Артикул
Описание

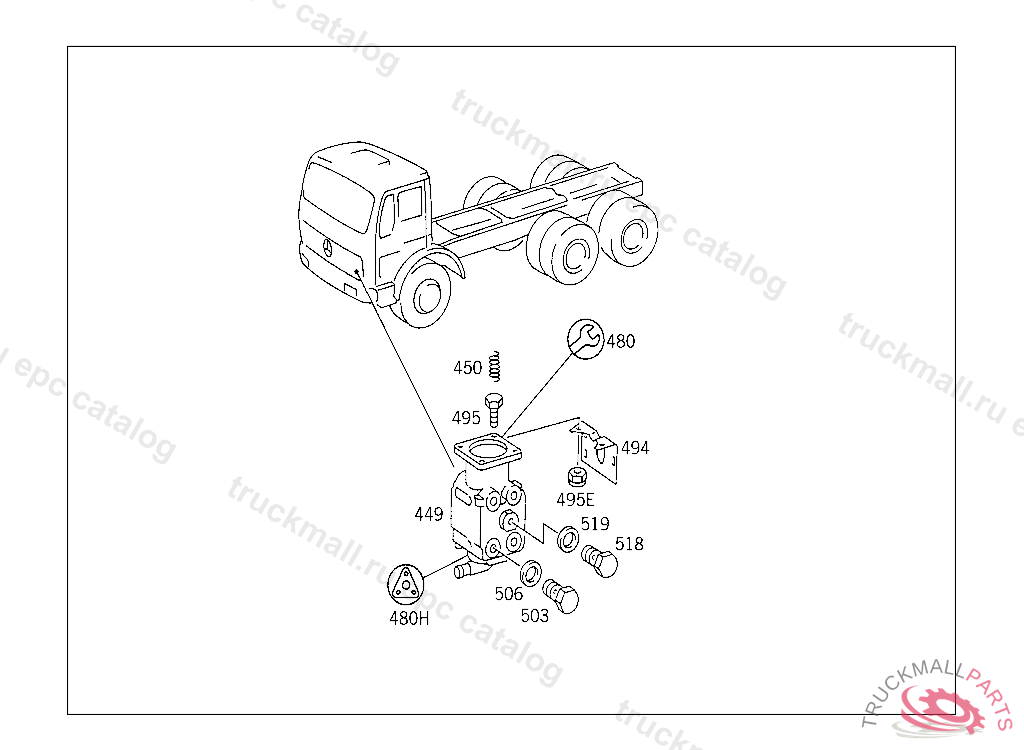

449
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
449
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH
449
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
480
REPAIR KITTO 002 431 06 05,WABCO
480
REPAIR KIT , Replaced By: A0004308206
480
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306360
495
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
495
SCREW , Replaced By: N304017008027
506
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
518
HOLLOW SCREW HEATING CONNECTION
519
SEAL RING LINE CONNECTION
999
GUIDE , Replaced By: N071752014000
999
CUP , Replaced By: A0004215286
999
CUPWABCO
999
CUPTO 008 420 97 18, 008 420 90 18, BOSCH
999
PROTECTIVE CAPTO 008 420 62 18,KNORR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE TAPPETTO 002 429 96 44,VOSS
999
FILTER ELEMENT MAJOR TO 000 429 27 95,WABCO
999
FILTER ELEMENT MINOR TO 000 429 27 95,WABCO
999
THRUST WASHERTO 003 429 12 44,SCHAEFER
999
SEAL CONETO 003 429 12 44,SCHAEFER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RINGTO 002 429 96 44,VOSS
999
AIR CLEANERGRAU
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT , Replaced By: A0014308460, +001A0004303506
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KITTO 001 431 93 06,BOSCH 62201,K 087820
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
REPAIR KIT VALVE BOSCH
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
999
REPAIR KIT SEAL RING BOSCH,209
999
GASKET34X2X6 MM,GRAU
999
VALVE DISC , Replaced By: A0004312781
999
VALVE DISCTO 001 431 43 05,BOSCH-TEVES
999
VALVE DISCTO 001 431 43 05,BOSCH-TEVES
999
VALVE SEATGRAU
999
DIAPHRAGMTO 007 420 42 18,KNORR
999
DIAPHRAGMBOSCH,K 262627
999
VALVEWABCO
999
CUPTO 001 431 43 05,BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SEALING CORDTO 000 429 27 95, WABCO
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR REPAIR SIZE
999
SPRING , Replaced By: A0009935205
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HANDLEKNORR
999
PLUG
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
GASKET KITBOSCH
999
REPAIR KIT TRISTOP CYLINDER TO 008 420 90 18, BOSCH
999
PROTECTIVE CAPTO WABCO
999
PROTECTIVE CAPTO BOSCH
999
PROTECTIVE CAPKNORR
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
T-FITTING RIGHT SPRING LOAD ACCUMULATOR BRAKE CYLINDER,CONNECTION "1"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KITTO BOSCH
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 433281
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
SEAL RING , Replaced By: A0289972348
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SPRINGTO 000 429 27 95,WABCO
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
999
SEAL RING , Replaced By: A0049972248
999
SEAL RING , Replaced By: A0009870746
999
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RINGTO 000 429 25 95,BOSCH
999
SEAL RINGTO 000 429 27 95, WABCO
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET LINE MOUNTING,4 4389724 691315
999
BRACKET HEAT SHIELD
999
LOCK BRAKE HOSE TO ANGLE
999
BRACKET , Replaced By: A6164290140
999
COVERING CHECK VALVE,5 298639
999
BRACKET AIR CLEANER,5 088361
999
BRACKET PRESSURE RATIO VALVE,5 180559
999
BRACKET PRESSURE RATIO VALVE,5 180559
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER BRACKET TO CROSS MEMBER
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW , Replaced By: N304017008039
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
WASHER STRAP TO SUPPORT
999
CLAMPING SLEEVEKNORR
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
NUT CHECK VALVE TO AIR RESERVOIR
999
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT STRAP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
