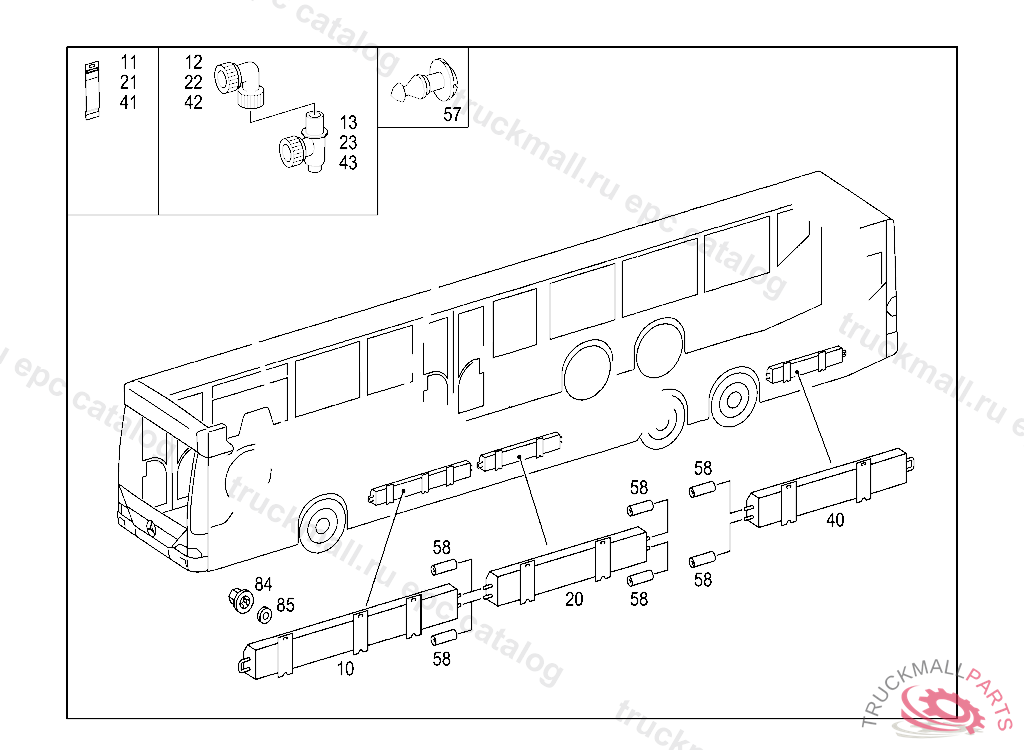

O 530 N3 LANG EURO 2 - 628.101 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
10
HEATER FRONT LEFT 2400 MM
11
BRACKET
12
CONNECTION FITTING
12
PIPE SOCKET
13
PIPE SOCKET
20
HEATER FRONT RIGHT 1450MM
21
BRACKET
40
HEATER REAR LEFT 1050MM
41
BRACKET
42
CONNECTION FITTING
42
PIPE SOCKET
43
PIPE SOCKET
57
PINTO A 628 830 44 61 / A 628 830 46 61
58
HOSE SILICONE 18 X 27 X 275 MM, TO BE ADAPTED DURING ASSEMBLY
58
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
58
PIPE LINE
84
NUT COVERING TO CAB FIRE WALL
85
WASHER HANDLE TO FENDER
