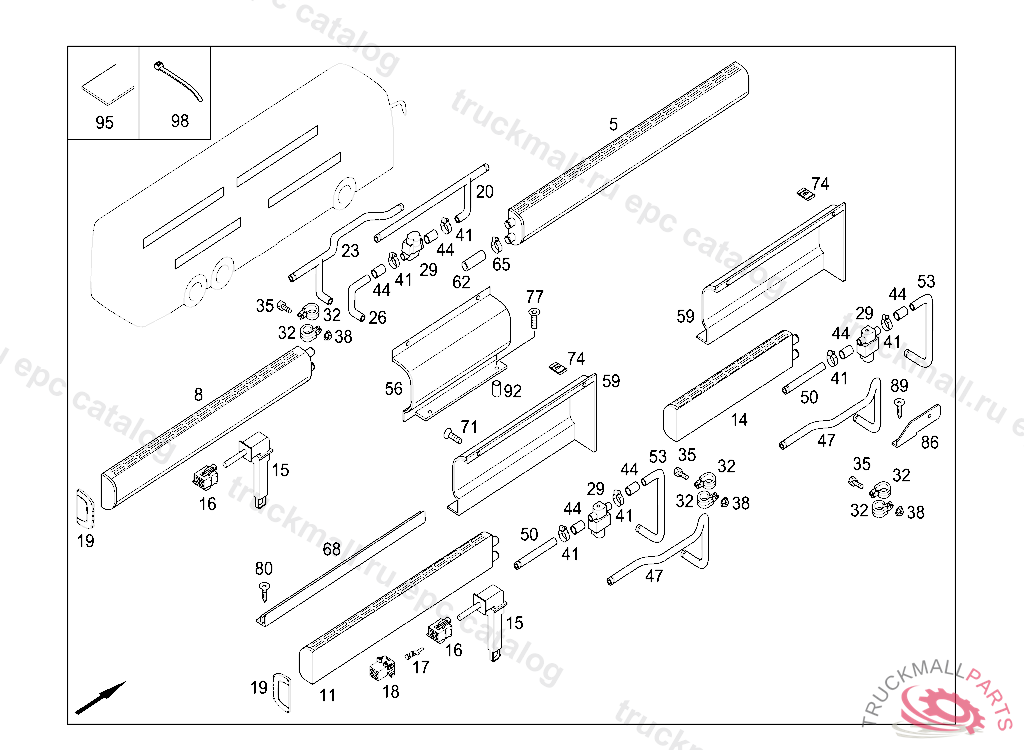

Поз.
Артикул
Описание
5
HEATER UNITLG4160
8
HEATER UNITLG5740
11
HEATER UNITL4140MM
11
HEATER UNITLG4490
14
HEATER UNITLG3890MM
14
HEATER UNITLG3240
14
HEATER UNIT4090MM
14
HEATER UNITLG2890MM
15
TEMPERATURE SENSOR
16
PIN BUSHING HOUSING 4-POLE
17
FLAT PLUG TERMINAL
18
PLUG HOUSING 4-POLE
19
COVER MOLDING
20
HEATING PIPE
23
HEATING RETURN
26
HEATINGD15MM,L215MM
29
WATER VALVE TWO-WAY VALVE WABCO
32
CLAMP LINE MOUNTING
35
SCREW BRACKET AND CLAMP M6X20
38
NUT , Replaced By: N913023006001
41
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
41
CLAMP25-40X13 MM
44
HOSE18X27X60MM
47
HEATINGD15/625MM
50
HEATINGD22/185MM
53
HEATINGD15/320MM
56
COVERING CENTRAL
59
COVERING LEFT
59
COVERING LEFT, EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A6338360102
62
HOSE
62
HOSE22X31X100MM
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
68
RAIL
71
SCREW W SOCKET DRIVEM6X16
71
SCREWM6X12, Replaced By: N000000002436
71
HEXALOBULAR BOLTM6X16
74
BRACKET
77
SCREWM5 X 16 MM
80
COUNTERSUNK WOOD SCREW4,1X16MM
86
BRACKET
89
SHEET METAL SCREW BRACKET TO SUPPORT
92
BUSHING
95
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
CABLE TIE , Replaced By: A0049971890
