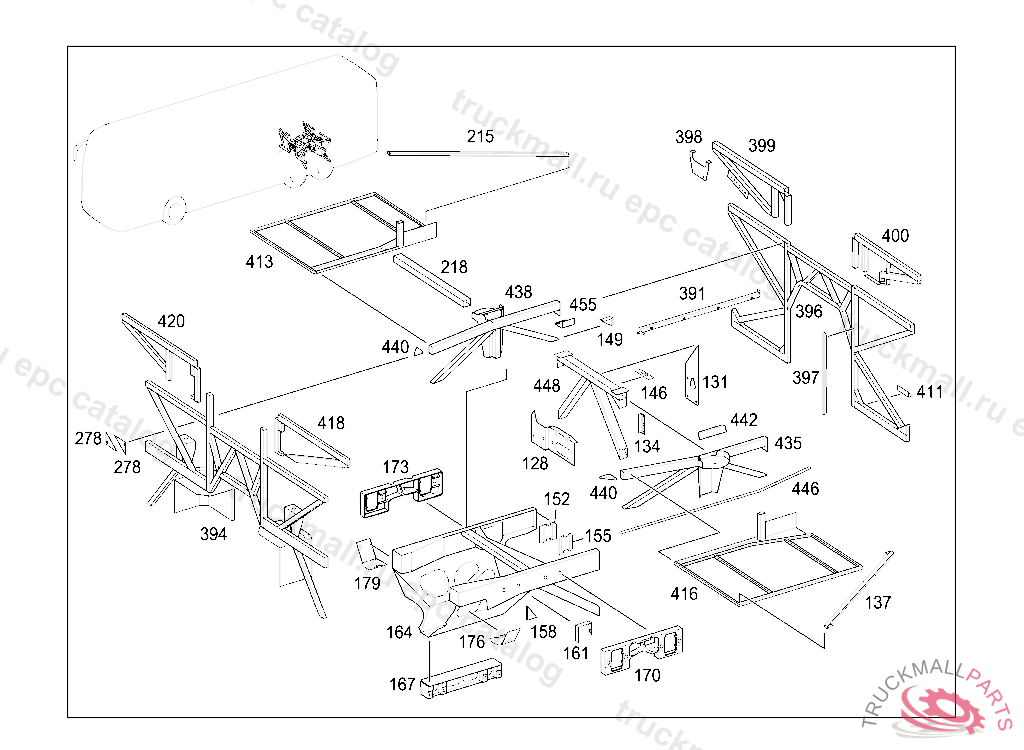

TOURISMO 16 RHD - 632.035 - 61 SUBSTRUCTURE

Поз.
Артикул
Описание
128
A6326120536
BRACKET
131
A6326124024
BRACKET
134
A6296110682
ANGLE BEHIND REAR AXLE
137
A6296100927
DIAGONAL GIRDER
146
A6296115511
PLATE
149
A6296122325
REINFORCEMENT
152
A6296112951
WEB
155
A6296113051
WEB
158
A6296114156
PLATE
161
A6296125124
BRACKET
164
A6296100430
CONSOLE
167
A6296101130
CONSOLE
170
A6286110547
TAKE-UP DEVICE
173
A6286110647
TAKE-UP DEVICE
176
A6296119756
PLATE
179
A6296119856
PLATE
215
A6296101027
DIAGONAL GIRDER
218
A6296100232
CONNECTION
278
A6326123611
FASTENING PLATE
391
A6326112082
ANGLE
394
A6326102217
CROSS MEMBERQT 8
394
A6326100417
CROSS MEMBER8
396
A6326103117
CROSS MEMBER
396
A6326100517
CROSS MEMBER
396
A6326102317
CROSS MEMBERQT NLA
397
A6296160193
SUPPORT ANGLE
398
A6326100236
BRACKET
399
A6326100932
CONNECTION RIGHT
400
A6326100832
CONNECTION LEFT
411
A6343178340
BRACKET
413
A6326105407
FLOOR CARRIER RIGHT
416
A6326105507
FLOOR CARRIER LEFT
418
A6326101532
CONNECTION LEFT
420
A6326101732
CONNECTION RIGHT
435
A6296102007
LONGITUDINAL MEMBER LEFT
438
A6296102107
LONGITUDINAL MEMBER
440
A6296112016
REINFORCEMENT
442
A6326110851
WEB , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 21.09.2009
446
A6296117514
BRACKET RIGHT
448
A6296102207
FRAME GIRDER
455
A6326101200
BRACKET
