Поз.
Артикул
Описание

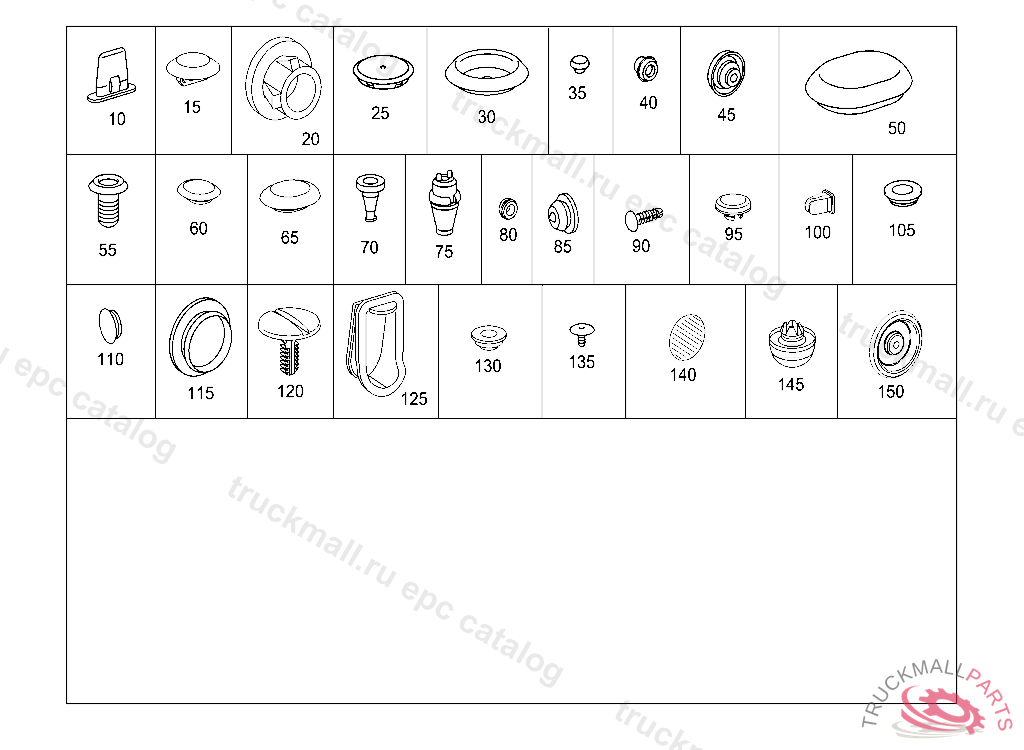

10
TREENAIL ENTRANCE LEDGE TO BODY
15
PLUG BRAKE CABLE 20 MM
15
STOP PLUG
20
PLUG INSTRUMENT CLUSTER/SPEEDOMETER
20
PLUG ,051010
30
EXPANSION PLUG
30
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
35
PLUG8.2 MM
40
EXPANSION PLUG
45
PLUG TO PLUG THE BORES
50
PLUG TO PLUG THE BORES
55
SCREW SRREW PLUG
60
STOP PLUG SIDE MEMBER
65
STOP PLUG SIDE MEMBER
65
GASKET. BLIND PLUG AT REAR PORTAL
70
GROMMET SIDE MEMBER 10 MM
75
GROMMET SIDE MEMBER 10 MM
80
GROMMET BATTERY CASE
85
EXPANSION PLUG IN FRONT PANEL PILLAR,OUTSIDE, FOR SLIDING ROOF HOSE
90
CLIP
100
TREENAIL BRACKET TO FIRE WALL
100
ADHESIVE TAPE PIPING
105
BOOT FIRE WALL
105
EXPANSION PLUG AT BRACKET
105
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
110
PLUG AT FIRE WALL
115
PLUG REAR RIGHT 40 MM
115
STOP PLUG35 MM
115
PLUG , Replaced By: A1239870444
115
COVER
120
STOP PLUG ROOF RAILING OMITTED, 05287920040331 16384720050617
120
THREADED PLUG WATER DEFLECTOR TO ROOF, 05287820040331
125
VALVE
130
EXPANSION PLUG IN FLOOR,FRONT
135
STOP PLUG SUSPENSION OF COVER IN BACKREST FITTING
140
ADHESIVE TAPE
140
ADHESIVE TAPE PIPING
145
STOP PLUG JACK TAKE-UP DEVICE
145
STOP PLUG JACK TAKE-UP DEVICE, Replaced By: A6395830046
150
PLUG
