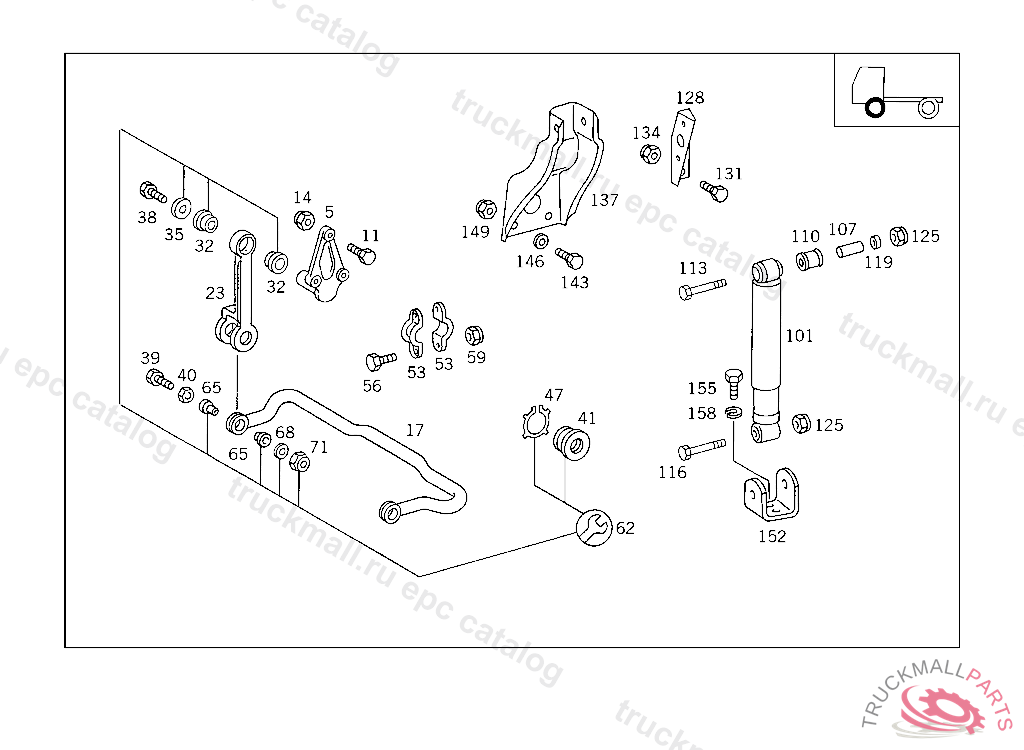

Поз.
Артикул
Описание
5
BEARING BRACKET SHACKLE TO FRAME
5
BEARING BRACKET SHACKLE TO FRAME
11
SCREW , Replaced By: N308676012015
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
14
NUT SUPPORT TO SIDE MEMBER
17
TORSION BAR
17
TORSION BAR FRONT AXLE,5 903514
17
TORSION BAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 5215065 903513, Replaced By: A6523230765
23
LINK TORSION BAR,FRONT,5 903513
23
LINK TORSION BAR,FRONT,5 903514
32
BUSHING SHACKLE TO BEARING BRACKET
35
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904661
35
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
38
SCREW SHACKLE TO CONSOLE
39
SCREW TORSION BAR TO BEARING BRACKET,5 904661
40
NUT TORSION BAR TO BEARING BRACKET,5 904661
41
RUBBER MOUNTING SHACKLE TO TORSION BAR
47
LOCK RING SHACKLE TO TORSION BAR
53
BRACKET TORSION BAR
56
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
56
SCREW , Replaced By: N308676012012
59
NUT SUPPORT TO SIDE MEMBER
62
REPAIR KIT TORSION BAR MOUNTING
65
BUSHING TORSION BAR TO BEARING BRACKET
68
WASHER TORSION BAR TO BEARING BRACKET
68
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
71
NUT , Replaced By: N910113016001
71
NUT CONSOLE TO SUPPORT
101
SHOCK ABSORBER FRONT AXLE
101
SHOCK ABSORBER FRONT AXLE
107
BUSHINGTO 004 323 52 00
107
SPACER RINGTO 002 323 86 00,003 323 03 00,
110
RUBBER MOUNTINGTO 003 326 46 00
110
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
110
RUBBER BUFFER , Replaced By: A0003233144
110
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
113
SCREW SHOCK ABSORBER TO TOP BRACKET
116
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
116
SCREW , Replaced By: N000960016250
119
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
125
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
125
NUT COMBINATION CYLINDER TO BEARING BRACKET
137
BEARING BRACKET SHOCK ABSORBER,TOP RIGHT
137
BEARING BRACKET SHOCK ABSORBER,TOP LEFT
143
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
143
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
143
SCREW , Replaced By: N308676012012
143
SCREW , Replaced By: N308676012026
146
WASHER , Replaced By: N007349013005
146
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
149
NUT SUPPORT TO SIDE MEMBER
152
BEARING BRACKET SHOCK ABSORBER,BOTTOM
155
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
155
SCREW , Replaced By: N308676012012
158
LOCK WASHER FITTING TO BRACKET
