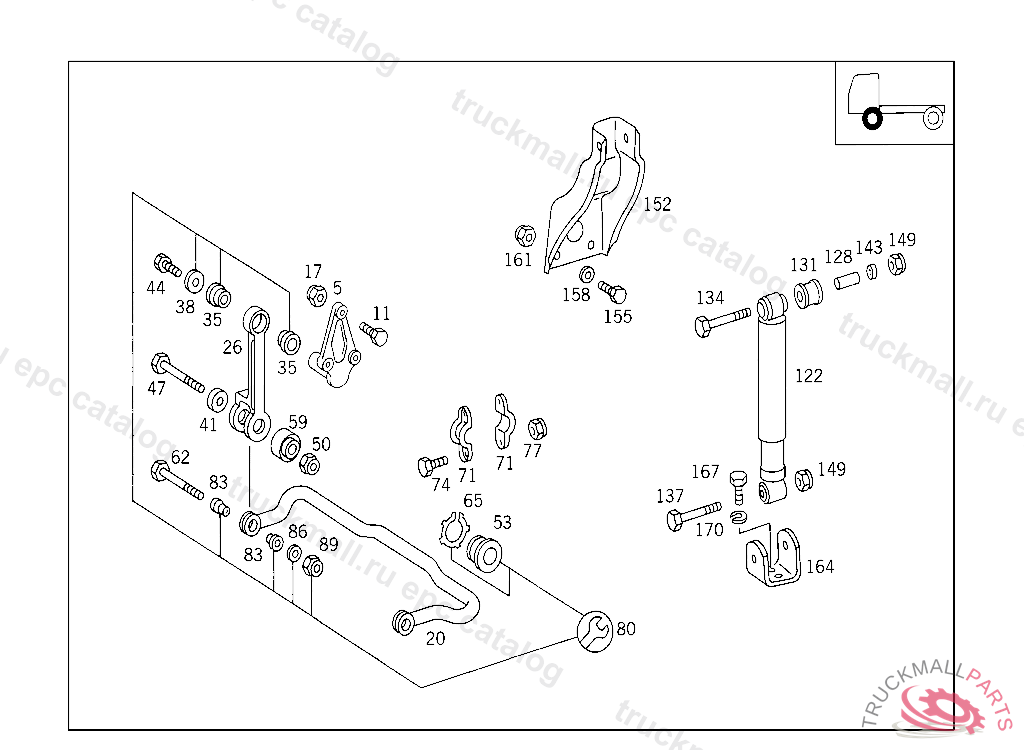

Поз.
Артикул
Описание
5
BEARING BRACKET SHACKLE TO FRAME
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
11
SCREW , Replaced By: N308676012015
17
NUT SUPPORT TO SIDE MEMBER
20
TORSION BAR FRONT AXLE,5 903514
26
LINK TORSION BAR,FRONT,5 903514
38
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904661
41
SPACER WASHER TORSION BAR TO BEARING BRACKET,5 904661
44
SCREW SHACKLE TO CONSOLE
47
SCREW TORSION BAR TO BEARING BRACKET,5 904661
50
NUT TORSION BAR TO BEARING BRACKET,5 904661
59
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
59
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 904661
59
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
59
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
59
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
62
SCREW TORSION BAR TO SHACKLE,5 903514
62
SCREW ,5 903514, Replaced By: N000960012353
122
SHOCK ABSORBER FRONT
122
SHOCK ABSORBER FRONT AXLE,K 075883
122
SHOCK ABSORBER FRONT
128
BUSHINGTO 004 323 52 00
128
SPACER RINGTO 002 323 86 00,003 323 03 00,
131
RUBBER MOUNTINGTO 003 326 46 00
131
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
131
RUBBER BUFFER , Replaced By: A0003233144
131
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
134
SCREW SHOCK ABSORBER TO TOP BRACKET
137
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
137
SCREW , Replaced By: N000960016250
143
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
149
NUT COMBINATION CYLINDER TO BEARING BRACKET
149
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
152
BEARING BRACKET SHOCK ABSORBER,TOP LEFT
152
BEARING BRACKET SHOCK ABSORBER,TOP RIGHT
155
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
155
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
155
SCREW , Replaced By: N308676012012
155
SCREW , Replaced By: N308676012026
158
WASHER , Replaced By: N007349013005
158
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
161
NUT SUPPORT TO SIDE MEMBER
164
BEARING BRACKET SHOCK ABSORBER,BOTTOM
167
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
167
SCREW , Replaced By: N308676012012
170
LOCK WASHER FITTING TO BRACKET
