Поз.
Артикул
Описание

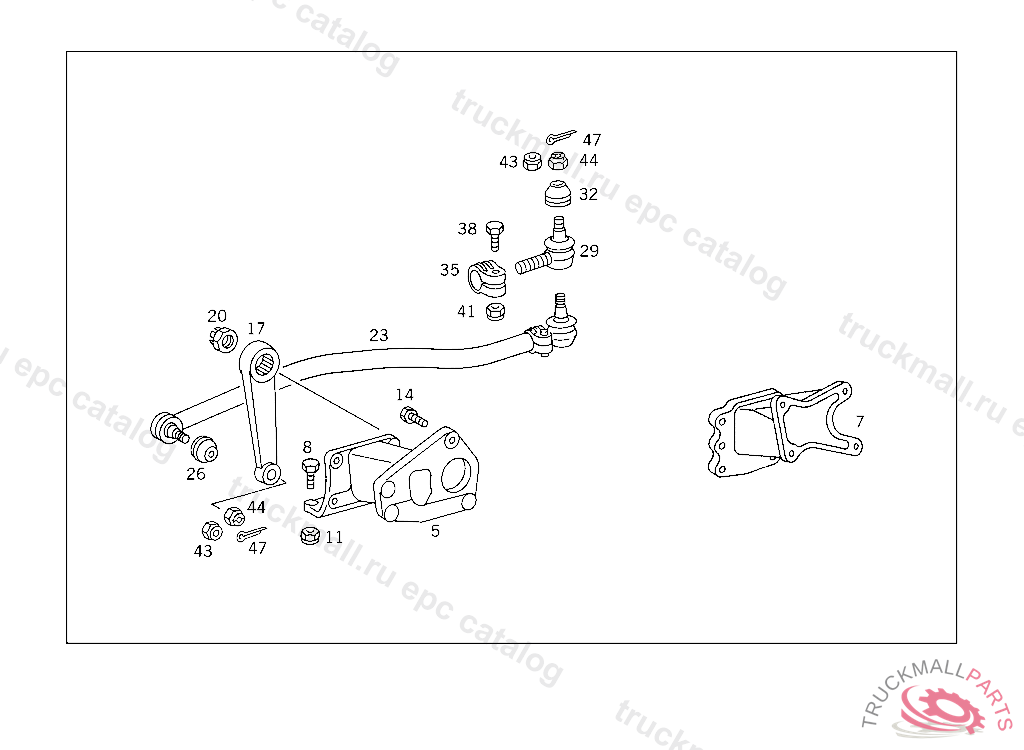

5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT AT FRAME
8
SCREW STEERING SUPPORT TO FRAME
11
NUT CONSOLE TO SUPPORT
14
FITTED SCREW STEERING BRACKET TO FRAME
14
SCREW BRACKET TO REAR AXLE M 20X1.5X45
17
PITMAN ARM ,5 158233
17
PITMAN ARM AT STEERING GEAR,K 072178
20
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
23
DRAG LINK ,K 072178
23
DRAG LINKLEMFOERDER
23
DRAG LINKEHRENREICH
23
DRAG LINK ,K 072178
26
BOOT DRAG LINK
32
BOOT DRAG LINK
35
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
35
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
38
SCREW , Replaced By: N308676012017
38
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
41
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
41
NUT , Replaced By: N910113012003
43
NUT DRAG LINK TO LEVER
44
NUT DRAG LINK TO LEVER
47
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
