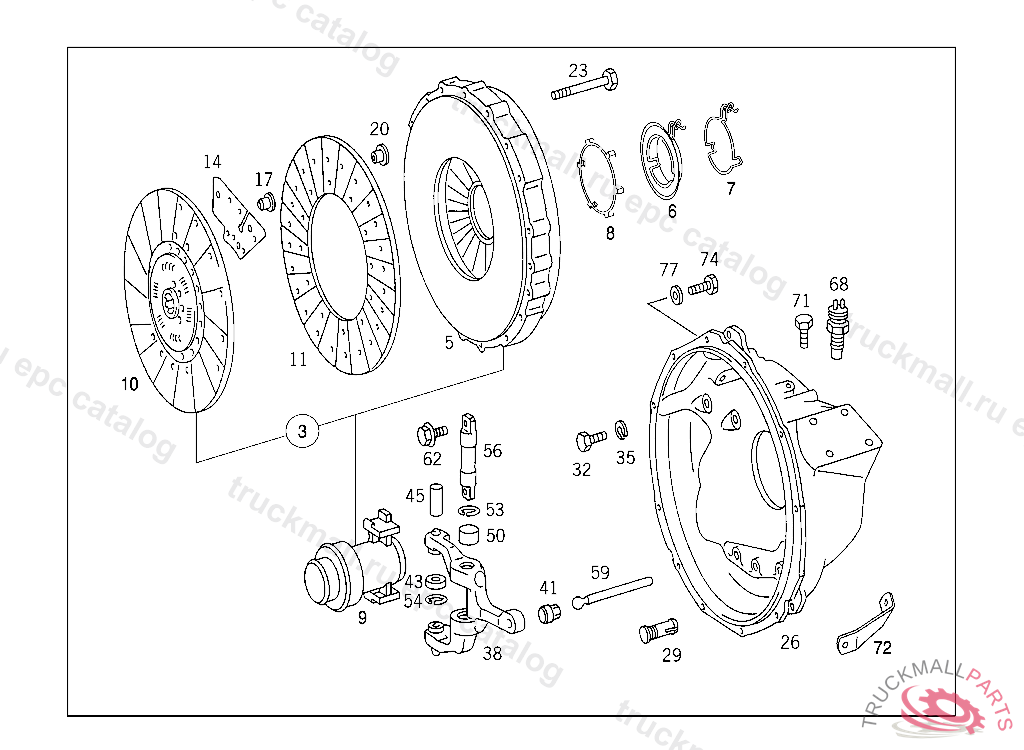

Поз.
Артикул
Описание
3
CLUTCH PARTS KIT F&S,K 017132
5
CLUTCH PRESSURE PLATEVALEO, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATEFICHTEL&SACHS,K 017132 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATE ,K 017131, Replaced By: A0052508304, +001A0012508615
6
RELEASE RING REPAIR KIT TO 005 250 83 04
6
RELEASE RING REPAIR KIT TO 004 250 88 04
7
LOCKTO 004 250 88 04, MUST NOT BE EXCHANGED INDIVIDUALLY, USE 000 252 03 46 RANGE OF DELIVERY
8
SPRINGTO 004 250 88 04
9
RELEASE BEARING
9
RELEASE BEARING
9
RELEASE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0012509715
9
RELEASE BEARING , PLAESE REFER TO NOTE IN FDOK
9
RELEASE BEARING , PLAESE REFER TO NOTE IN FDOK, Replaced By: A0012506215
9
RELEASE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0012506215, +001A6502503113, +001A6502540006
9
RELEASE BEARING , Replaced By: A0012504715
10
CLUTCH DISC ASBESTOS-FREE LINING, COMPONENT PARTS NOT AVAILABLE
10
CLUTCH DISC ASBESTOS-FREE LINING, COMPONENT PARTS NOT AVAILABLE
10
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
CLUTCH DISC , Replaced By: A0112500403
10
CLUTCH DISC , Replaced By: A0112500403
10
CLUTCH DISC , Replaced By: A0162502703
10
CLUTCH DISC , Replaced By: A0132502603
10
CLUTCH DISC , Replaced By: A0112500403
10
CLUTCH DISC , Replaced By: A0082505103
10
CLUTCH DISC , Replaced By: A0112500403
11
CLUTCH LINING ASBESTOS-FREE
11
CLUTCH LINING , Replaced By: A0012528410
14
LEAF SPRING ,5 563495
17
RIVET LEAF SPRING TO CLUTCH DISC
20
RIVET LINING WITH CLUTCH DISC
20
RIVET , Replaced By: A0002524875
23
SCREW CLUTCH TO FLYWHEEL
26
BELL HOUSING
26
BELL HOUSING , Replaced By: A6502510301
29
PLUG BELL HOUSING
32
SCREW VIBRATION ABSORBER TO CONSOLE
35
LOCK WASHER BELL HOUSING TO TRANSMISSION
38
RELEASE LEVER
38
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 281331, Replaced By: A6502503913
38
RELEASE LEVER , Replaced By: A6502503213
38
RELEASE LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6502501413
41
BEARING TOP
43
ROLLER RELEASE LEVER,K 281332
43
ROLLER
45
PIN RELEASE LEVER,K 281331
50
BUSHING FRONT AND REAR
53
SNAP RING FRONT AND REAR
54
SNAP RING FRONT AND REAR,K 281331
56
SPINDLE
59
PIN RELEASE LEVER
62
SCREW RELEASE LEVER TO BELL HOUSING
68
SENDER UNIT LIMITATION OF ENGINE SPEED
74
SCREW RADIATOR M 10X45
77
WASHER RADIATOR TO RUBBER MOUNTING
77
WASHER , Replaced By: N000125010532
999
RELEASE RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0002520346
