Поз.
Артикул
Описание
5

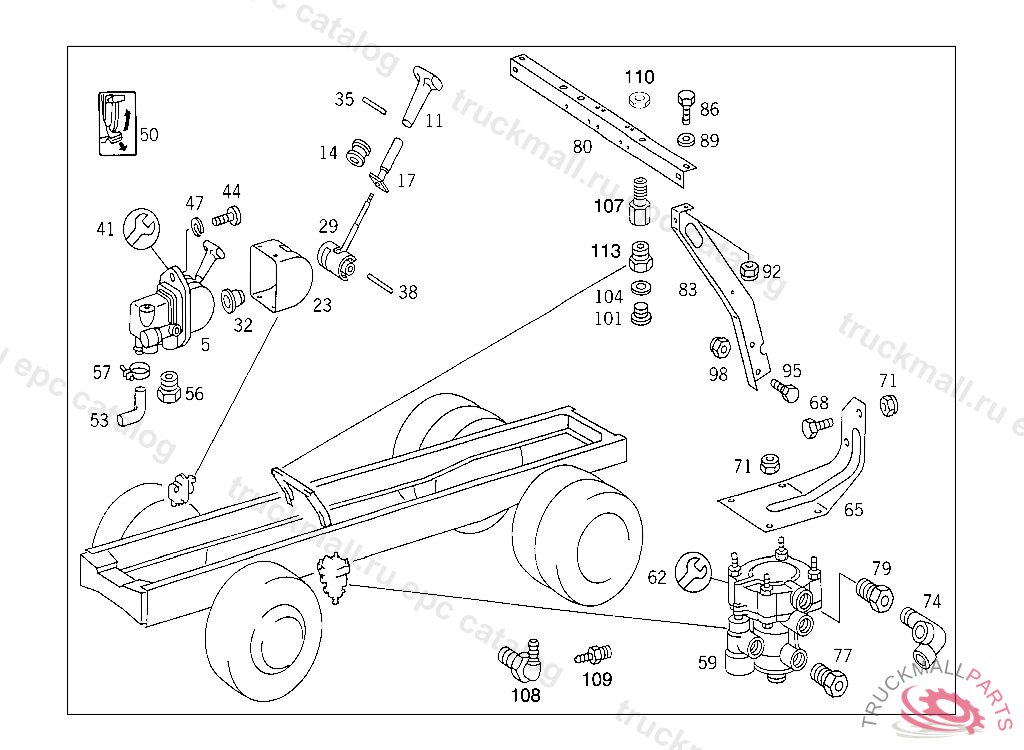

VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "KNORR"
11
HANDLETO 002 430 93 81
11
HANDLE"WABCO"
14
BUSHING"WABCO"
14
BUSHING , Replaced By: A4421440050
17
BUSHINGTO 002 430 93 81
23
PROTECTIVE CAPTO 002 430 93 81
23
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
29
LEVERTO 002 430 93 81
32
SPRING RETAINERTO 002 430 93 81
35
PINTO 002 430 90 81
38
PINTO 002 430 93 81
41
REPAIR KIT HAND BRAKE VALVE "WABCO"
41
REPAIR KITBOSCH,TO 002 430 93 81
44
SCREW PARKING BRAKE VALVE TO WINDOW SILL
47
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
50
GUMMED LABEL PARKING BRAKE ACTUATION
53
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30"
53
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30", Replaced By: A6554310273
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
57
CLAMP HOSE TO PARKING BRAKE VALVE
59
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
59
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
59
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
59
BRAKE VALVE (TRAILER CONTROL VALVE) "GRAU", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
62
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
62
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
65
BRACKET TRAILER CONTROL VALVE
68
SCREW , Replaced By: N304017008034
68
SCREW BRACKET TO CROSS CONNECTION STRUT
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
NUT , Replaced By: N913004008001
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
77
SCREW. UNION SCREW LINE CONNECTION
77
SCREW. UNION SCREW , Replaced By: A0009973734
79
SCREW. UNION SCREW LINE CONNECTION
80
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
83
ANGLE SUPPORT,LEFT
86
SCREW , Replaced By: N304017008034
86
SCREW , Replaced By: N304017008021
86
SCREW BRACKET TO CROSS CONNECTION STRUT
86
SCREW PIPE CLAMP
89
WASHER EXHAUST MUFFLER TO STRAP
89
WASHER , Replaced By: N000125008443
92
NUT , Replaced By: N913004008001
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
92
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
95
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
95
SCREW , Replaced By: N308676014020
98
NUT , Replaced By: N910113014001
98
NUT BRACKET TO SIDE MEMBER
101
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
ADAPTER FITTING LINE CONNECTION TO ENGINE
108
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
109
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
110
NUT BRACKET TO SIDE MEMBER
113
SCREW. UNION SCREW LINE CONNECTION
