Поз.
Артикул
Описание
5

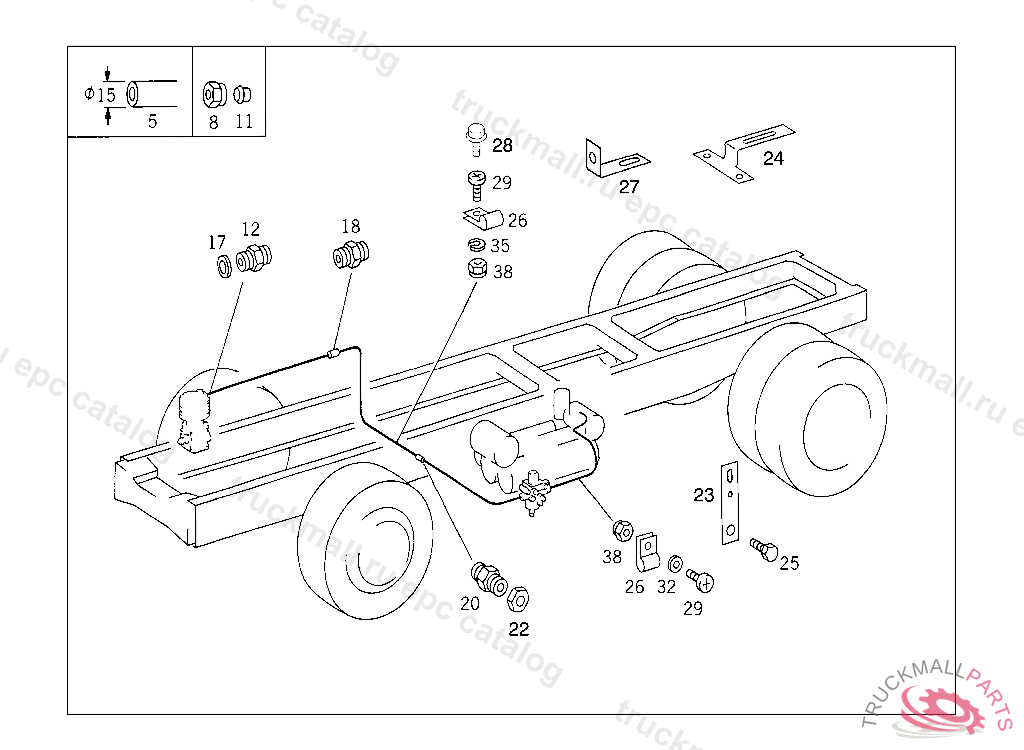

LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
12
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
BULKHEAD FITTING THROUGH SIDE MEMBER
22
NUT CHECK VALVE TO AIR RESERVOIR
23
BRACKET LINE MOUNTING
24
BRACKET , Replaced By: A6534291840
24
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 131522
25
SCREW BRACKET TO SUPPORT M 16X20
25
SCREW BRACKET TO SUPPORT M 16X16
26
CLAMP DELIVERY AND SUCTION LINES TO STEERING
26
CLAMP , Replaced By: A6739950001
27
BRACKET COMPRESSED AIR LINE TO ENGINE
28
SCREW AT FILTER BRACKET
29
SCREW CLAMP MOUNTING M 6X16
29
SCREW , Replaced By: N000000001146
32
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
WASHER COMPRESSED AIR LINE TO BRACKET
35
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
999
BRACKET COMPRESSED AIR LINE TO ENGINE
