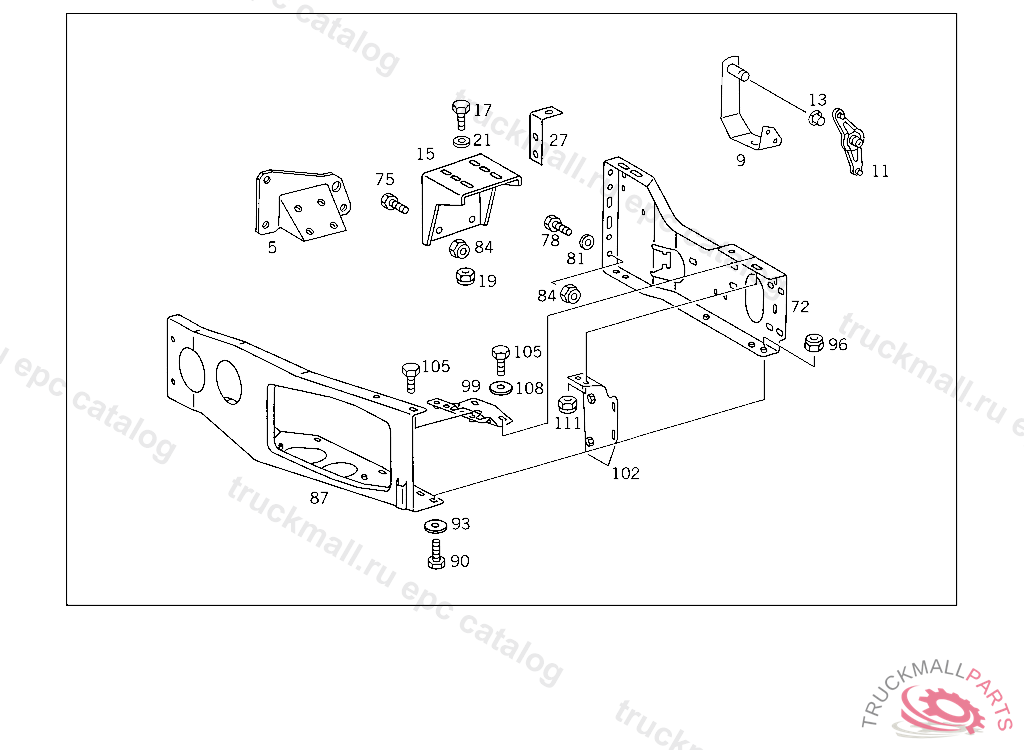

Поз.
Артикул
Описание
5
BEARING BRACKET RIGHT FRONT RUBBER MOUNTING,K 137001
5
BEARING BRACKET LEFT FRONT RUBBER MOUNTING,K 137001
9
BEARING BRACKET INTERMEDIATE LEVER,5 943507
9
BEARING BRACKET INTERMEDIATE LEVER,5 943507
11
LEVER (INTERMEDIATE LEVER),5 943507
11
LEVER (INTERMEDIATE LEVER),5 943507
13
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
15
CONSOLE CAB SUSPENSION,FRONT
15
CONSOLE CAB SUSPENSION,FRONT
15
CONSOLE CAB SUSPENSION,FRONT
17
SCREW CONSOLE AND STRUT TO FRAME
17
SCREW APPARATUS SUPPORT TO FRAME
17
SCREW SUPPORT TO SIDE MEMBER M 14X45
17
SCREW CONSOLE AND STRUT TO FRAME
17
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
17
SCREW , Replaced By: A9429901304
17
SCREW , Replaced By: N308676014012
17
SCREW , Replaced By: N308676016013
19
NUT , Replaced By: N910113014000
19
NUT , Replaced By: N910113016001
19
NUT STEERING SUPPORT TO FRAME
19
NUT CONSOLE TO SUPPORT
19
NUT TORSION BAR TO BEARING BRACKET,5 904661
21
WASHER CONSOLE AND STRUT TO FRAME
21
WASHER CONSOLE AND STRUT TO FRAME
27
BRACKET RIGHT RUBBER BUFFER
27
BRACKET RIGHT RUBBER BUFFER
72
STRUT BUMPER,LEFT
72
STRUT BUMPER,RIGHT
72
STRUT BUMPER,RIGHT
72
STRUT BUMPER,LEFT
75
SCREW APPARATUS SUPPORT TO FRAME
75
SCREW , Replaced By: A9429901304
78
SCREW , Replaced By: N308676014012
78
SCREW SUPPORT TO SIDE MEMBER M 14X45
81
WASHER SPARE WHEEL CARRIER
84
NUT , Replaced By: N910113014000
84
NUT STEERING SUPPORT TO FRAME
87
STRUT FRONT RIGHT
87
STRUT FRONT RIGHT
87
STRUT FRONT LEFT
87
STRUT FRONT LEFT
90
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
93
WASHER BRACKET TO COVERING
93
WASHER
93
WASHER , Replaced By: N009021010209
96
NUT , Replaced By: N910113010000
96
NUT STRAP TO BRACKET
99
PLATE RIGHT REINFORCEMENT
99
PLATE LEFT REINFORCEMENT
99
PLATE LEFT REINFORCEMENT
99
PLATE RIGHT REINFORCEMENT
102
BRACKET LEFT ROCKER PANEL, INAPPLICABLE TO TYP 652.146
102
BRACKET RIGHT STEP, INAPPLICABLE TO TYP 652.146
105
SCREW CENTRAL LOCK TO CAB M 10X16
105
SCREW END PIECE TO EXHAUST PIPE M 10X25
108
WASHER BRACKET TO COVERING
108
WASHER , Replaced By: N009021010209
111
NUT , Replaced By: N910113010000
111
NUT STRAP TO BRACKET
