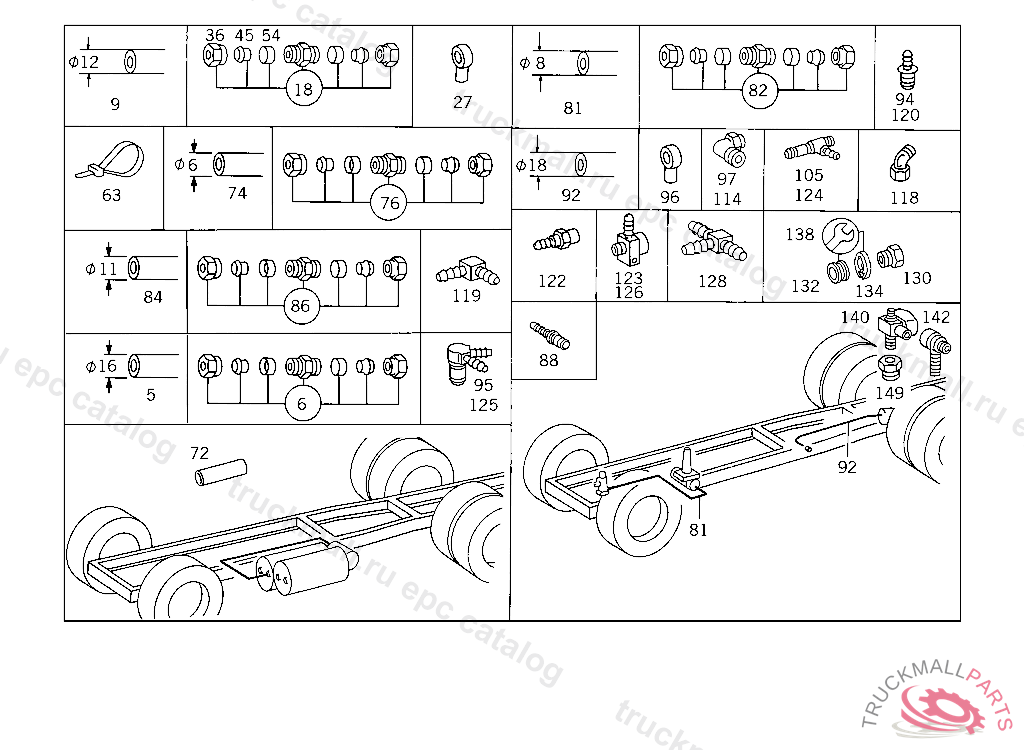

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872927
5
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
6
FITTING (PARTS KIT),LINE RUPTURE
9
HOSE , Replaced By: A0009872827
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
18
FITTING , Replaced By: A0029906171
18
FITTING (PARTS KIT),LINE RUPTURE
27
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
36
UNION NUT LINE CONNECTION, Replaced By: N000000006239
36
UNION NUT LINE CONNECTION
45
GLAND , Replaced By: A0019901967
45
SEAL CONE LINE CONNECTION
54
SLEEVE LINE CONNECTION
63
LOOM TIE LINE MOUNTING 280 MM
72
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
72
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
74
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
74
PLASTIC PIPE RISING PIPE 4X6 MM
76
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
81
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
82
FITTING (PARTS KIT),LINE RUPTURE
82
FITTING , Replaced By: A0029905971
84
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
84
PLASTIC PIPE RISING PIPE 4X6 MM
84
PLASTIC PIPE RISING PIPE 4X6 MM
84
PLASTIC PIPE RISING PIPE 4X6 MM
86
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
88
CONNECTOR , Replaced By: A0029905478
88
CONNECTOR HOSE WIDTH, 6 MM,TO M16
92
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
94
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
94
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
95
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
95
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
96
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
96
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
97
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
97
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
97
ELBOW FITTING , Replaced By: A0049905371
97
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
97
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
97
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
97
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
97
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
97
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
97
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
105
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
114
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
114
T-FITTING HOSE WIDTH, 6 MM
118
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
118
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
119
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
120
CONNECTOR HOSE WIDTH, 6 MM, TO M22
120
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
120
CONNECTOR HOSE WIDTH, 6 MM, TO M22
120
CONNECTOR HOSE WIDTH, 6 MM, TO M22
122
CONNECTOR , Replaced By: A6739900278
122
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
123
CONNECTOR DISTRIBUTOR TO FRAME
123
CONNECTOR , Replaced By: A0019903978
123
CONNECTOR DISTRIBUTOR TO FRAME
123
CONNECTOR DISTRIBUTOR TO CAB
124
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
124
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
124
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
125
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
125
T-FITTING , Replaced By: A0059903370
126
CONNECTOR HOSE WIDTH, 9 MM,TO M22
126
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
126
CONNECTOR , Replaced By: A0009908878
128
DISTRIBUTOR
128
DISTRIBUTOR HOSE WIDTH, 9 MM,TO M 22
128
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
128
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
128
DISTRIBUTOR
130
SCREW. UNION SCREW LINE CONNECTION
130
SCREW. UNION SCREW LINE CONNECTION
130
SCREW. UNION SCREW LINE CONNECTION
130
SCREW. UNION SCREW LINE CONNECTION
130
SCREW. UNION SCREW , Replaced By: A0009973734
132
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
132
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
132
LOCK RING LINE CONNECTION
132
LOCK RING LINE CONNECTION
132
SEAL RING , Replaced By: A0009940747
134
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
134
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
134
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
134
LOCK LINE CONNECTION
134
LOCK LINE CONNECTION
134
LOCK , Replaced By: A0009945448
138
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
138
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
138
REPAIR KIT , Replaced By: A0309971748
140
T-FITTING PRESSURE RATIO VALVE,CONNECTION: "10",8 004623
140
T-FITTING PRESSURE RATIO VALVE,CONNECTION: "10",8 004623
142
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
142
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
142
FITTING RIGHT TRISTOP CYLINDER, REAR AXLE I, CONNECTION: "11"
142
FITTING RIGHT TRISTOP CYLINDER, REAR AXLE I, CONNECTION: "11"
142
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
142
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
142
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
142
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
149
SCREW. UNION SCREW LINE CONNECTION
149
SCREW. UNION SCREW LINE CONNECTION
149
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR BLEEDING
999
RESERVOIR , Replaced By: A0034321401
999
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
999
RESERVOIR , Replaced By: A0034321201
999
PLUGTO 008 420 59 18,KNORR
999
VALVE REPAIR KIT
999
VALVE (PRESSURE LIMIT VALVE)
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
BRACKET TRAILER CONTROL VALVE
999
GUIDE SIGN
999
LOCK FRONT AXLE RELAY VALVE
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 585845
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 359430
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
GUIDE SIGN LOAD-DEPENDING BRAKE
