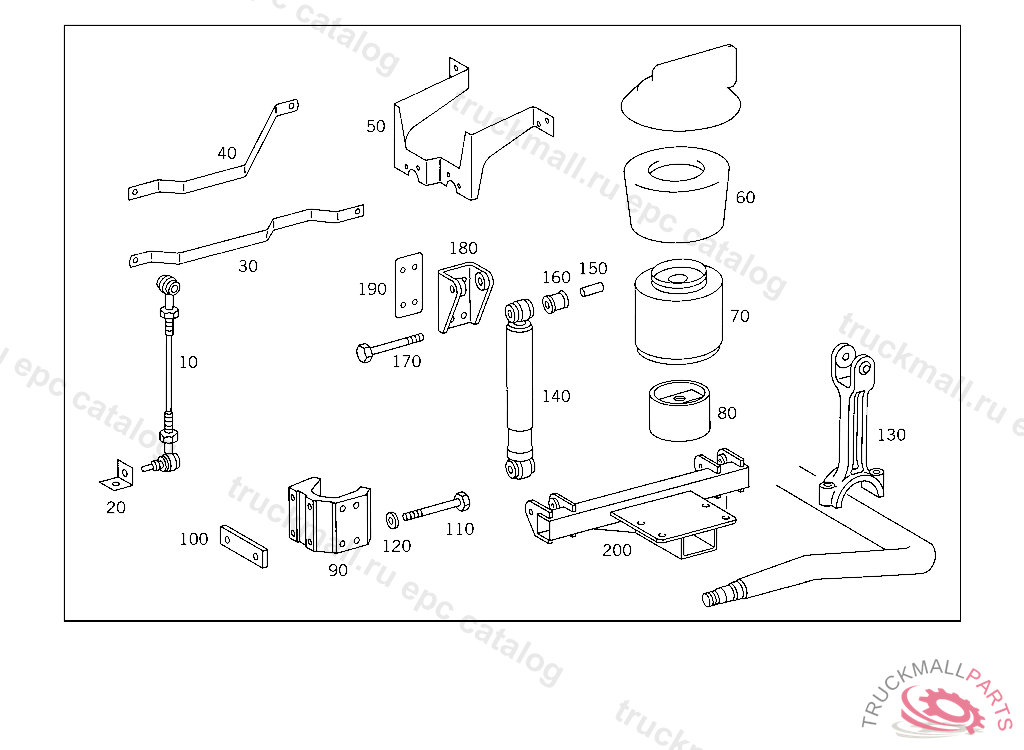

Поз.
Артикул
Описание
10
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
10
BALL JOINT TRAVEL SENSOR
10
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008426
20
ANGLE LINE MOUNTING
30
LEVER LEFT
40
LEVER RIGHT
50
BRACKET TOP
60
AIR SPRING BELLOWS PNEUMATIC SUSPENSION
70
PISTON REAR AXLE
70
PISTON PNEUMATIC SUSPENSION
70
PISTON PNEUMATIC SUSPENSION
70
PISTON PNEUMATIC SUSPENSION
80
SHIM PISTON TO CROSS MEMBER
80
SHIM PISTON TO AIR-SPRING-BELLOWS SUPPORT
80
SHIM PNEUMATIC SUSPENSION
90
BEARING BODY LEFT
90
BEARING BODY RIGHT
100
SHIM SUPPORT TO SIDE MEMBER
100
SHIM BEARING BODY
110
SCREW APPARATUS SUPPORT TO FRAME
110
SCREW , Replaced By: A9429901304
120
WASHER CONTROL ARM TO BEARING BODY
130
LINK TORSION BAR TO BRACKET
130
LINK TORSION BAR TO BRACKET
130
LINK TORSION BAR TO BRACKET
140
SHOCK ABSORBER REAR AXLE
140
SHOCK ABSORBER REAR AXLE
150
SPACER RINGTO 002 323 86 00,003 323 03 00,
160
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
170
SCREW SHOCK ABSORBER TO TOP BRACKET M 16X125
180
BRACKET SHOCK ABSORBER,TOP
190
SHIM SHOCK ABSORBER,TOP
200
CONSOLE SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT,RIGHT
200
CONSOLE SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT,LEFT
999
STRUT LEFT AND RIGHT
999
CROSS MEMBERNO.4A
999
BEARING BRACKET CENTRAL BEARING
999
GUSSET PLATE RIGHT BEARING BRACKET
999
GUSSET PLATE LEFT BEARING BRACKET
999
BRACKET
