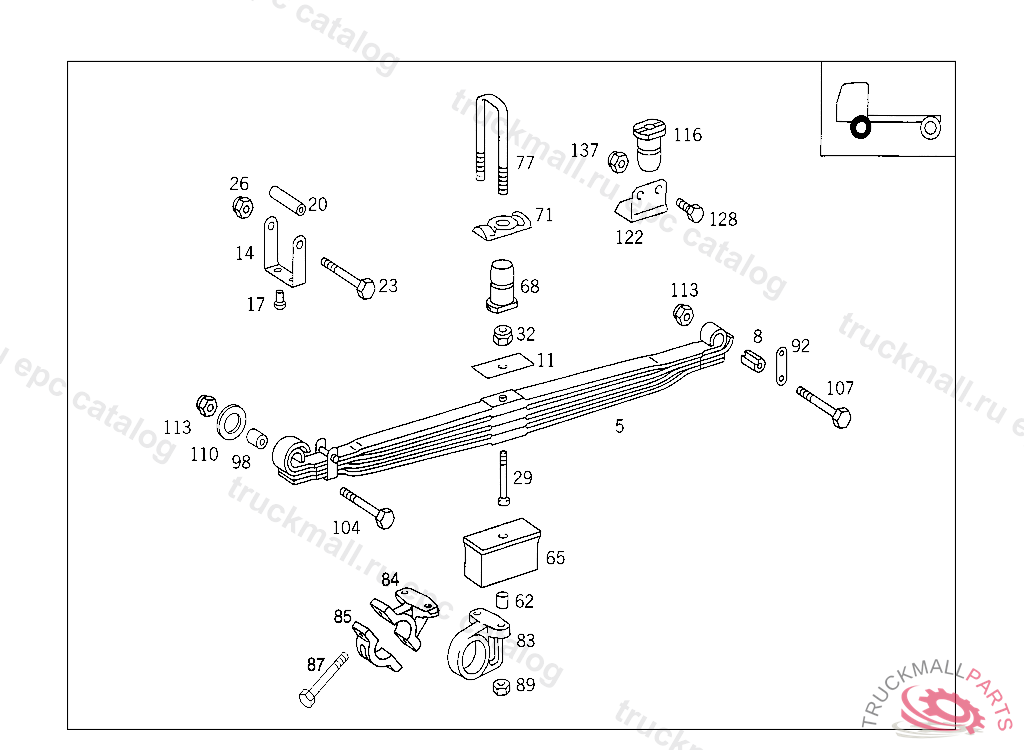

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
8
RUBBER MOUNTING
8
RUBBER MOUNTING
11
SHIM
14
SPRING CLAMP ,5 484790
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
20
SPACER TUBE SPRING CLAMP
23
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
23
SCREW FOR SPRING CLAMPS,5 484789
23
SCREW , Replaced By: N308765012007
26
NUT SUPPORT TO SIDE MEMBER
29
SPRING BOLT
32
HEXAGON NUT. NUT SPRING BOLT
32
NUT , Replaced By: N910113012005
62
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
65
SHIM FRONT AXLE TO FRONT SPRINGS
68
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
71
PLATE , Replaced By: A6203310026
71
PLATE FRONT SPRINGS TO FRONT AXLE
77
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
77
U-BOLT FRONT SPRINGS TO FRONT AXLE 210 MM
83
BEARING BRACKET TORSION BAR,FRONT,5 903513
84
BEARING BRACKET TORSION BAR,FRONT,5 903514
85
BEARING SHELL TORSION BAR,FRONT,5 903514 NO.7390I I I I II
85
BEARING SHELL ,5 903514 NO.7390I I I I II, Replaced By: A9413230221, +002N910105012015
87
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
87
SCREW TORSION BAR TO SHACKLE,5 903514
89
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
92
SHACKLE OUTSIDE
98
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
104
SCREW REAR SPRING TO REAR SPRING FRONT BRACKET
107
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
110
WASHER NO LONGER REQUIRED,5 768541
113
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
116
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
122
BRACKET HELPER SPRING
128
SCREW REAR EXHAUST PIPE TO MUFFLER
137
NUT STRAP TO BRACKET
137
NUT , Replaced By: N910113010000
999
SPRING CLAMP ,5 940410
999
SCREW ,5 903514, Replaced By: N000960012353
