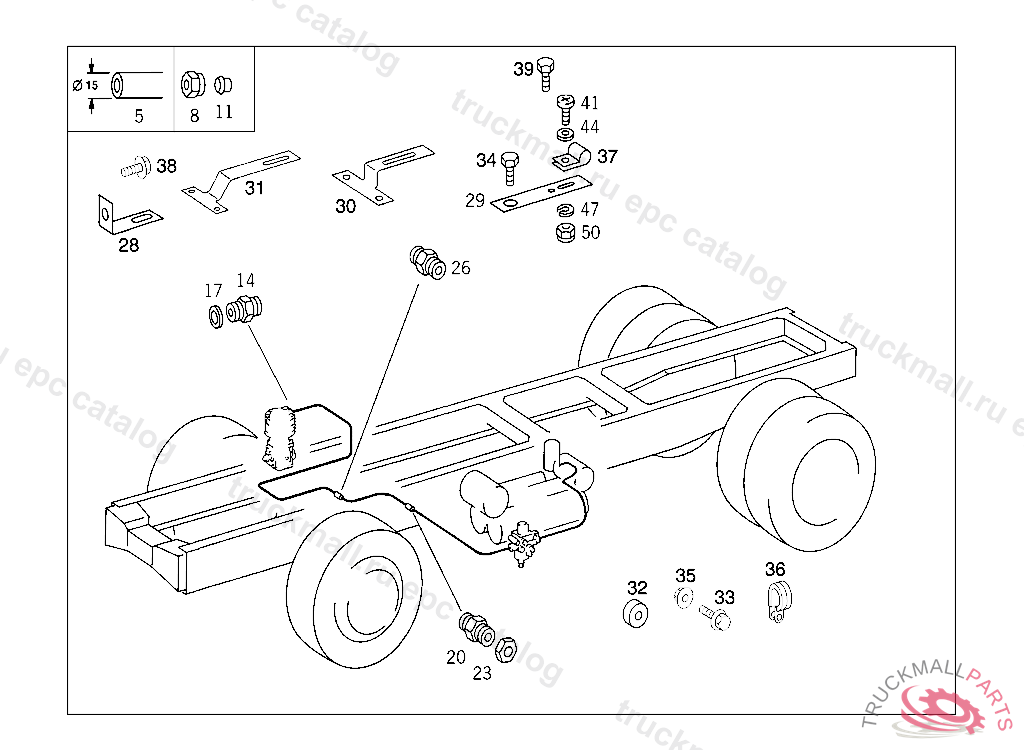

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
20
BULKHEAD FITTING THROUGH SIDE MEMBER
23
NUT CHECK VALVE TO AIR RESERVOIR
26
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
28
BRACKET COMPRESSED AIR LINE TO ENGINE
29
BRACKET LINE MOUNTING
30
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 131522
30
BRACKET , Replaced By: A6534291840
33
SCREW VERTICAL TAIL PIPE BEHIND CAB
34
SCREW BRACKET TO SUPPORT M 16X20
34
SCREW BRACKET TO SUPPORT M 16X16
35
NUT PARTICLE FILTER M14
36
CLAMP AT BRACKET
37
CLAMP DELIVERY AND SUCTION LINES TO STEERING
37
CLAMP , Replaced By: A6739950001
38
SCREW AT FILTER BRACKET
41
SCREW CLAMP MOUNTING M 6X16
41
SCREW , Replaced By: N000000001146
44
WASHER , Replaced By: N009021006208
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
WASHER COMPRESSED AIR LINE TO BRACKET
44
WASHER COMPRESSED AIR LINE TO BRACKET
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
999
BRACKET AT LEFT SIDE MEMBER
999
BRACKET COMPRESSED AIR LINE TO ENGINE
