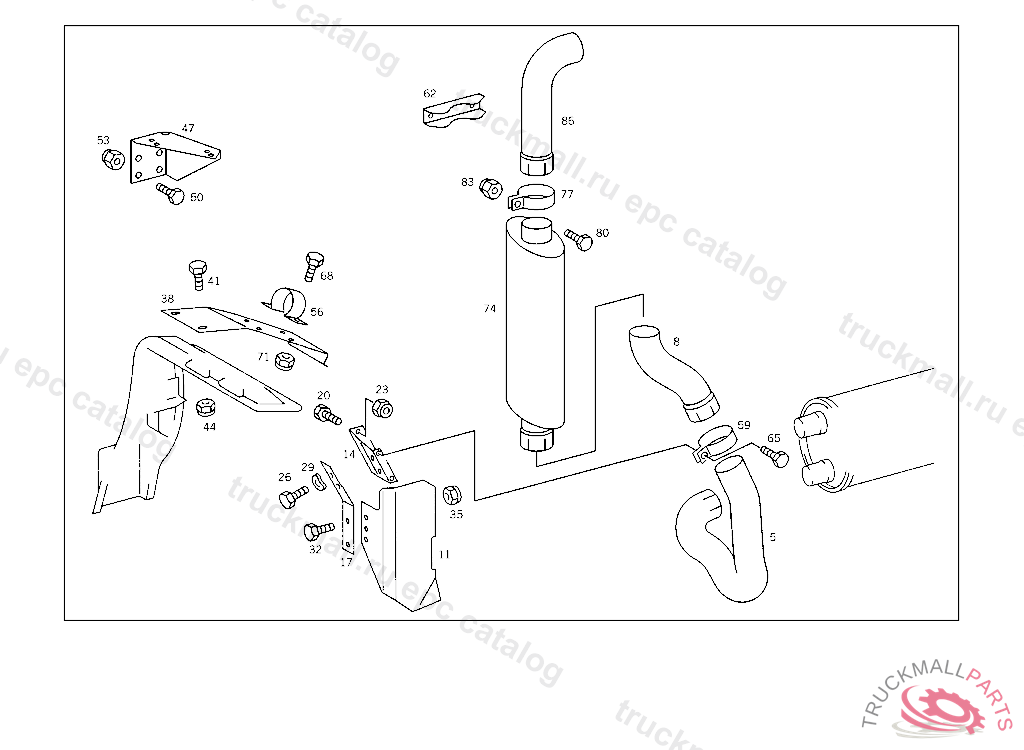

Поз.
Артикул
Описание
5
CONNECTOR FROM EXHAUST PIPE TO SEPARATION POINT,K 081848
5
CONNECTOR FROM EXHAUST PIPE TO SEPARATION POINT,K 081848
5
CONNECTOR FROM EXHAUST PIPE TO SEPARATION POINT,K 081849
5
CONNECTOR FROM EXHAUST PIPE TO SEPARATION POINT,K 081849
5
CONNECTOR FROM EXHAUST PIPE TO SEPARATION POINT
5
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
8
REAR EXHAUST PIPE
8
REAR EXHAUST PIPE BEHIND CAB,UPWARD
11
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
11
PROTECTIVE PLATE (HEAT SHIELD)
14
BRACKET AT SIDE MEMBER
14
BRACKET TAIL PIPE
17
BRACKET EXHAUST PIPE SUSPENSION
17
BRACKET HEAT SHIELD TO FRAME
20
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
23
NUT , Replaced By: N910113014001
23
NUT BRACKET TO SIDE MEMBER
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW , Replaced By: N304017008034
29
SPRING WASHER , Replaced By: N000137008212
29
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW PIPE CLAMP
32
SCREW , Replaced By: N304017008021
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
BRACKET INTERMEDIATE PIECE TO FRAME
38
BRACKET , Replaced By: A6554927941
38
BRACKET TAIL PIPE
41
SCREW , Replaced By: N304017008027
41
SCREW , Replaced By: N304017008034
41
SCREW , Replaced By: N304017010002
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
41
SCREW BRACKET TO CROSS CONNECTION STRUT
41
SCREW BRACKET TO SIDE MEMBER
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
47
BRACKET , Replaced By: A6524903440
47
BRACKET BRACKET TO CAB CONSOLE
50
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
53
NUT BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113014001
56
CLAMP , Replaced By: A6524900241
56
CLAMP HEAT SHIELD TO TAILPIPE
59
CLAMP EXHAUST PIPE
62
BASE PLATE HEAT SHIELD TO TAILPIPE
65
SCREW BRACKET TO SIDE MEMBER
65
SCREW , Replaced By: N304017010002
68
SCREW , Replaced By: N304017008021
68
SCREW , Replaced By: N304017008027
68
SCREW , Replaced By: N304017008034
68
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
68
SCREW BRACKET TO CROSS CONNECTION STRUT
68
SCREW PIPE CLAMP
71
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER , Replaced By: N000125008443
74
NUT , Replaced By: N910113010000
74
NUT STRAP TO BRACKET
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
77
NUT , Replaced By: N913004008001
80
EXHAUST MUFFLER (POSTERIOR MUFFLER)
83
CLAMP , Replaced By: A6554920340
83
CLAMP EXHAUST PIPE
83
CLAMP EXHAUST PIPE
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW , Replaced By: N304017010002
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
END PIECE (TAIL PIPE)
999
PROTECTIVE PLATE SCREENING PLATE,5 547064
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
CONNECTOR ,K 081849
