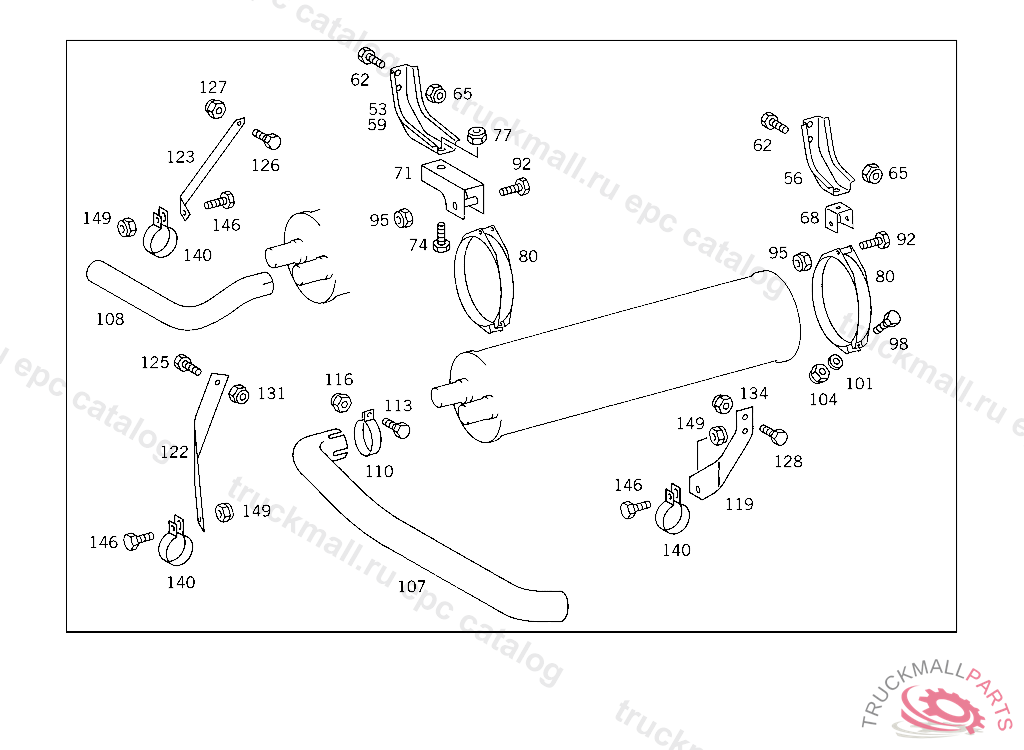

Поз.
Артикул
Описание
53
CONSOLE REAR EXHAUST MUFFLER 132 MM
56
CONSOLE EXHAUST MUFFLER,FRONT
62
SCREW CONSOLE TO SIDE MEMBER
65
NUT SUPPORT TO SIDE MEMBER
68
BRACKET REAR EXHAUST PIPES
74
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
NUT STRAP TO BRACKET
77
NUT , Replaced By: N910113010000
80
STRAP , Replaced By: A6204900042, +001N000933008165
80
STRAP EXHAUST MUFFLER TO BRACKET
92
SCREW STRAP TO BRACKET
92
SCREW STRUT TO SUPPORT
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
98
SCREW , Replaced By: N910143008021
98
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
101
WASHER EXHAUST MUFFLER TO STRAP
101
WASHER , Replaced By: N000125008443
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
END PIECE TAIL PIPE ON THE RIGHT
107
END PIECE , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 093235, Replaced By: A6554923414
107
END PIECE (TAIL PIPE)
110
CLAMP EXHAUST PIPE TO BRACKET
113
SCREW BRACKET TO SIDE MEMBER
113
SCREW , Replaced By: N304017010002
116
NUT , Replaced By: N910113010000
116
NUT STRAP TO BRACKET
119
BRACKET TAIL PIPE TO SIDE MEMBER
122
BRACKET , Replaced By: A6524920741
125
SCREW , Replaced By: N308676014020
125
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
128
SCREW , Replaced By: N304017010002
128
SCREW BRACKET TO SIDE MEMBER
131
NUT , Replaced By: N308673014001
131
NUT PARTICLE FILTER M14
134
NUT , Replaced By: N910113010000
134
NUT STRAP TO BRACKET
140
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
140
CLAMP , Replaced By: N071555100501
140
CLAMP EXHAUST PIPE
146
SCREW , Replaced By: N304017010002
146
SCREW BRACKET TO SIDE MEMBER
149
NUT STRAP TO BRACKET
149
NUT , Replaced By: N910113010000
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
