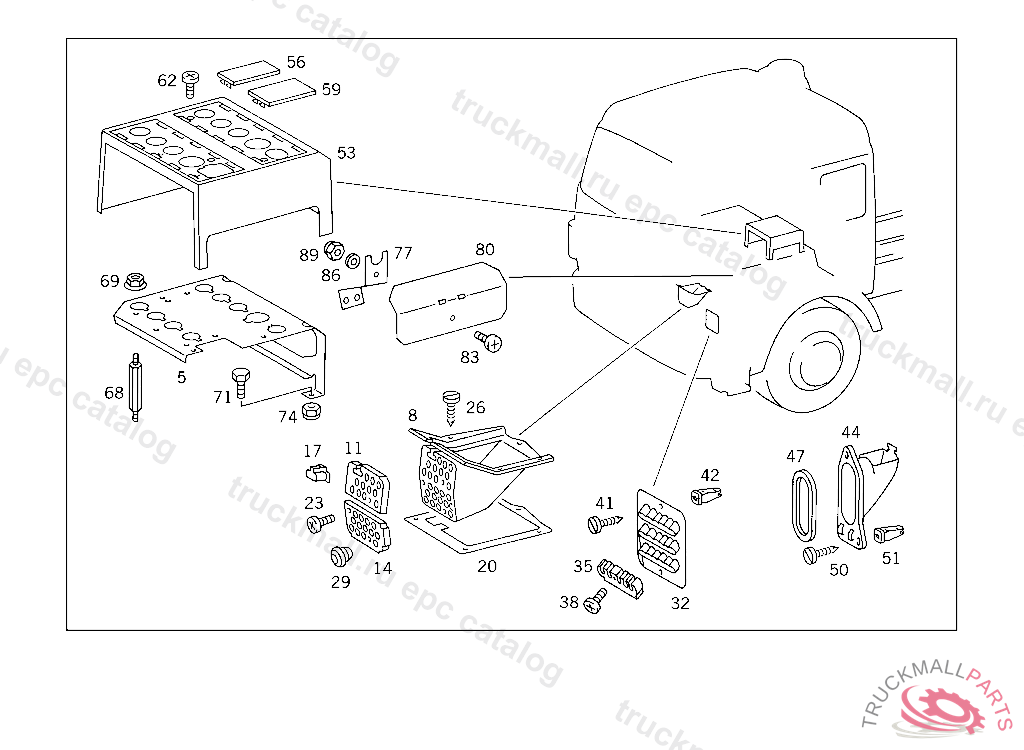

Поз.
Артикул
Описание
5
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
5
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
8
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
11
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
14
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
17
GASKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
20
GASKET BETWEEN BRACKET AND CAB FLOOR
23
SCREW PLATE TO BRACKET
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE
29
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
32
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
32
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
35
PLATE COMPRESSED AIR LINE MOUNTING
38
SCREW PLATE TO BRACKET, Replaced By: N007985006590
38
SCREW PLATE TO BRACKET, Replaced By: N000000001481
38
SCREW PLATE TO BRACKET
41
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
41
SHEET METAL SCREW BRACKET TO FIRE WALL
42
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
42
TREENAIL BRACKET TO FIRE WALL
44
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
44
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
47
GASKET BRACKET
50
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
50
SHEET METAL SCREW BRACKET TO FIRE WALL
51
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
51
TREENAIL BRACKET TO FIRE WALL
53
COVERING BRACKET, Replaced By: A6554300162
53
PROTECTIVE PLATE BRACKET, Replaced By: A6554300562
53
PROTECTIVE PLATE BRACKET
53
COVERING BRACKET, Replaced By: A6554300262
53
PROTECTIVE PLATE BRACKET, Replaced By: A6554300662
53
PROTECTIVE PLATE BRACKET
56
COVERING IN PLACE OF SWITCH 82X44,5 MM
59
COVERING IN PLACE OF SWITCH 82X56,5 MM
62
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
68
PIN BRACKET TO ENGINE TUNNEL
71
SCREW , Replaced By: N304017006034
71
SCREW COVER PLATE TO COVER PLATE M 6 X 10
74
NUT , Replaced By: N913004006001
74
NUT PUMP TO BRACKET
77
BRACKET HEAT SHIELD MOUNTING
80
COVERING EXHAUST PIPE
83
SCREW , Replaced By: N000000001146
83
SCREW CLAMP MOUNTING M 6X16
86
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
86
WASHER COMPRESSED AIR LINE TO BRACKET
89
NUT , Replaced By: N913004006001
89
NUT PUMP TO BRACKET
