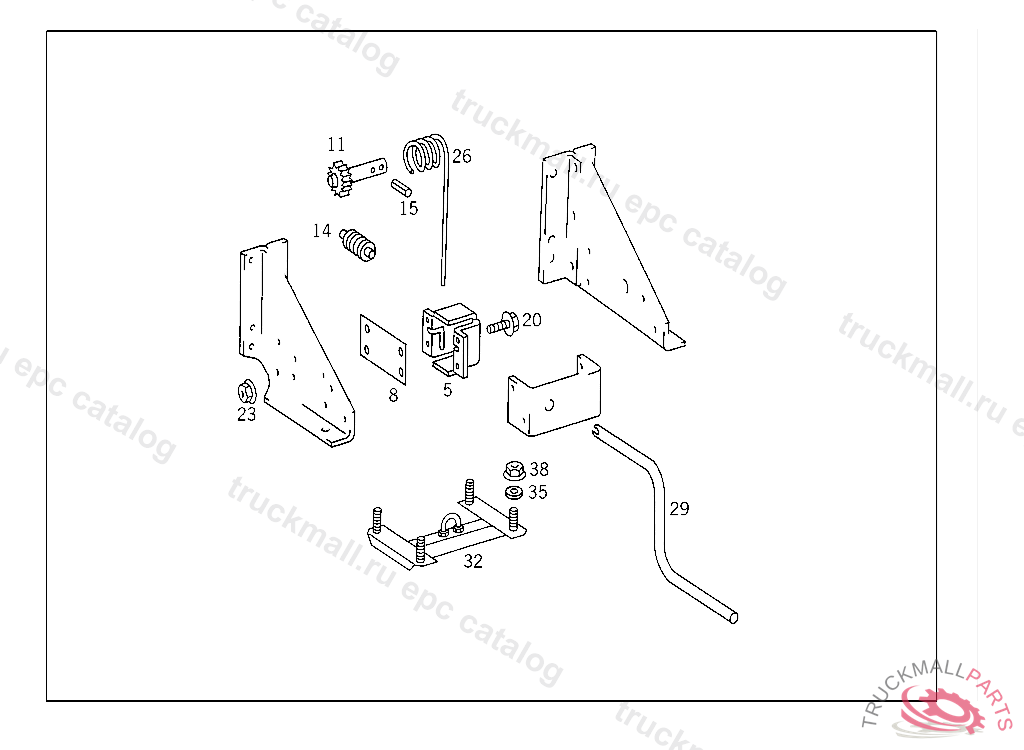

2635 S/LS,3535 S,2648 S 2650 S - 659.136 - 40 WHEELS
Поз.
Артикул
Описание
5
BEARING BRACKET AT BRACKET
8
PLATE AT BRACKET
11
STOP GEAR SPARE WHEEL CARRIER,5 127460
14
WORM
15
CLAMPING SLEEVE WORM AND SHAFT TO BRACKET 6X26 MM
20
SCREW , Replaced By: N910105010011
23
NUT EXHAUST PIPE TO SIDE MEMBER
26
WIRE CABLE
29
CRANK SPARE WHEEL HOIST 340MM
32
BRACKET SPARE WHEEL
35
WASHER , Replaced By: N000125015019
38
NUT JOINT TO SHIFTING ROD M 14X1.5
