Поз.
Артикул
Описание

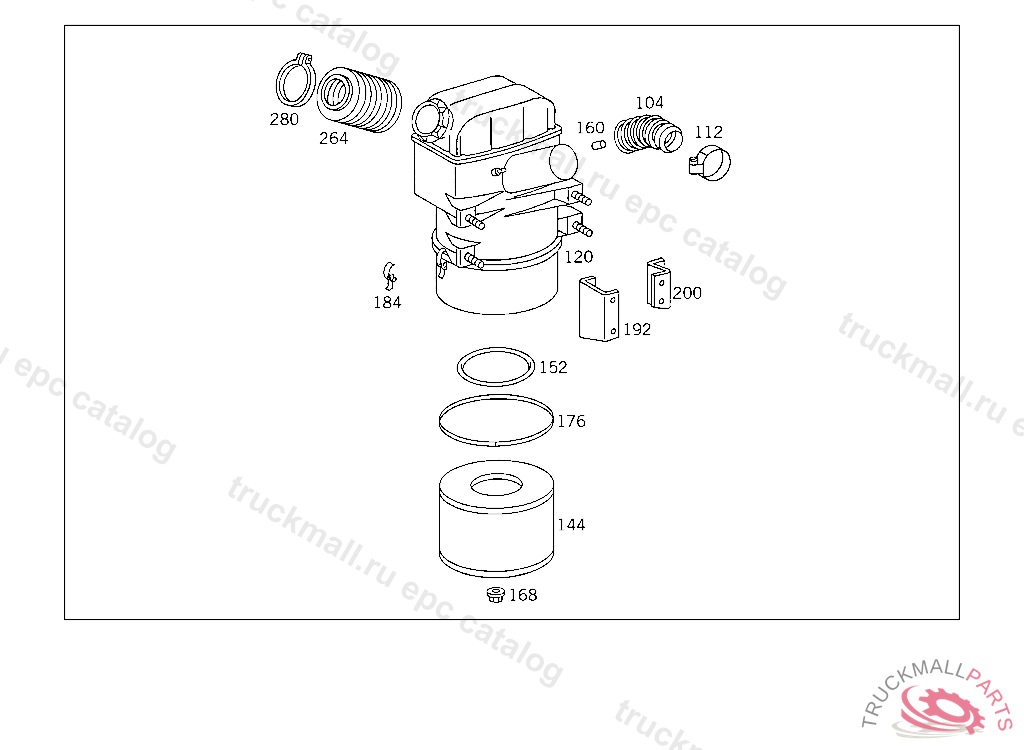

104
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
104
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
112
CLAMP FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
112
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
112
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
112
CLAMP AIR INTAKE
112
CLAMP FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
112
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
112
CLAMP , Replaced By: N000000000678
120
AIR CLEANER
144
FILTER ELEMENT AIR CLEANER
144
FILTER ELEMENT AIR CLEANER
152
SEAL RING AIR CLEANER ELEMENT
160
WASHER FELT
168
NUT
176
GASKET AIR CLEANER BOWL
176
GASKET AIR CLEANER
184
FASTENER
192
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
200
BRACKET AIR CLEANER,REAR
264
BOOT
264
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
280
CLAMP BOOT TO INTAKE PIPE
999
FILTER BOWLTO 015 094 83 02
999
GASKET AIR CLEANER BOWL TO 015 094 83 02
999
SUPPORT BOOT
999
PIPE ELBOW OIL REFILLING
999
PIPE ELBOW , Replaced By: A6565200106
999
HOSE PIPE ELBOW
999
BRACKET OI DIPSTICK GUIDE TUBE
999
PIPE ELBOW FROM OIL FILTER NECK TO ENGINE
999
HOSE AIR INTAKE PIPE TO ENGINE
999
ANGLE LEFT
999
ANGLE RIGHT
999
AIR INTAKE PIPE FROM AIR CLEANER TO INTAKE PIPE
999
SUPPORT AIR CLEANER
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
CLAMP , Replaced By: N000000000671
