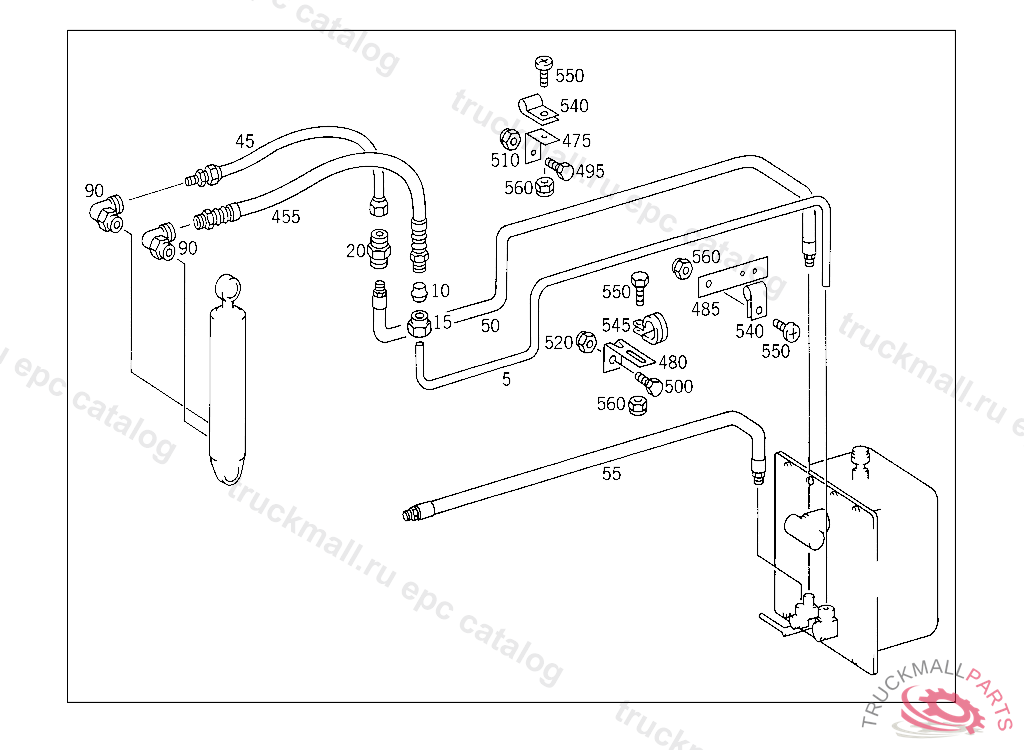

Поз.
Артикул
Описание
5
TUBE FROM HIGH PRESSURE HOSE TO STEERING
10
SEAL CONE LINE CONNECTION
10
GLAND , Replaced By: A0019901967
15
UNION NUT LINE CONNECTION, Replaced By: N000000006239
15
UNION NUT LINE CONNECTION
20
FITTING (PARTS KIT),LINE RUPTURE
45
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER,K 301549
45
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
50
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
50
HOSE CAB LOCKING MECHANISM
55
HOSE CAB LOCKING MECHANISM
55
HOSE FROM CYLINDER TO PUMP
55
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
55
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
90
ELBOW FITTING DELIVERY LINE TO PUMP
90
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
90
FITTING FROM PUMP TO CYLINDER
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
475
BRACKET HEATING WATER LINE
475
ANGLE LINE MOUNTING
475
BRACKET OIL LINE MOUNTING
475
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
475
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
475
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
475
BRACKET , Replaced By: A3604292940
480
BRACKET , Replaced By: A3872950240
480
BRACKET OIL LINE MOUNTING
480
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
480
BRACKET BATTERY CABLE MOUNTING,5 193595
480
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
480
BRACKET OIL LINES TO FRAME SIDE MEMBERS
485
BRACKET HEATING WATER LINE
495
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
495
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
495
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
495
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
495
SCREW , Replaced By: N308676012012
495
SCREW , Replaced By: N308676012026
495
SCREW , Replaced By: N308676014020
500
SCREW , Replaced By: N304017008027
500
SCREW , Replaced By: N304017010043
500
SCREW BRACKET TO CONSOLE
500
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
500
SCREW , Replaced By: N304017008034
510
NUT BRACKET TO SIDE MEMBER
510
NUT SUPPORT TO SIDE MEMBER
510
NUT STRAP TO BRACKET
510
NUT , Replaced By: N910113010000
510
NUT , Replaced By: N910113014001
520
NUT , Replaced By: N913004008001
520
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
540
CLAMP LINE MOUNTING
545
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
545
CLAMP ,K 147121, Replaced By: N000000000319
545
CLAMP SENSOR CABLE TO FRONT AXLE
550
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
550
SCREW , Replaced By: N000000001146
550
SCREW CLAMP TO BRACKET
550
SCREW COVER PLATE TO BRACKET
550
SCREW CLAMP MOUNTING M 6X16
560
NUT PUMP TO BRACKET
560
NUT , Replaced By: N913004006001
999
PIN PULL TO FASTENER
999
BUSHING LEVER TO CAB
999
ROD CENTRAL LOCK
999
SEAL ROD THRU CAB
999
BRACKET ROD THRU CAB
999
CONSOLE ADDITIONAL WORK ON FRAME
999
HANDLE CAB LOCKING MECHANISM
999
LEVER CAB LOCKING MECHANISM
999
SUPPORT
999
SHIM BEARING BRACKET TO FRAME
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP LINE MOUNTING
