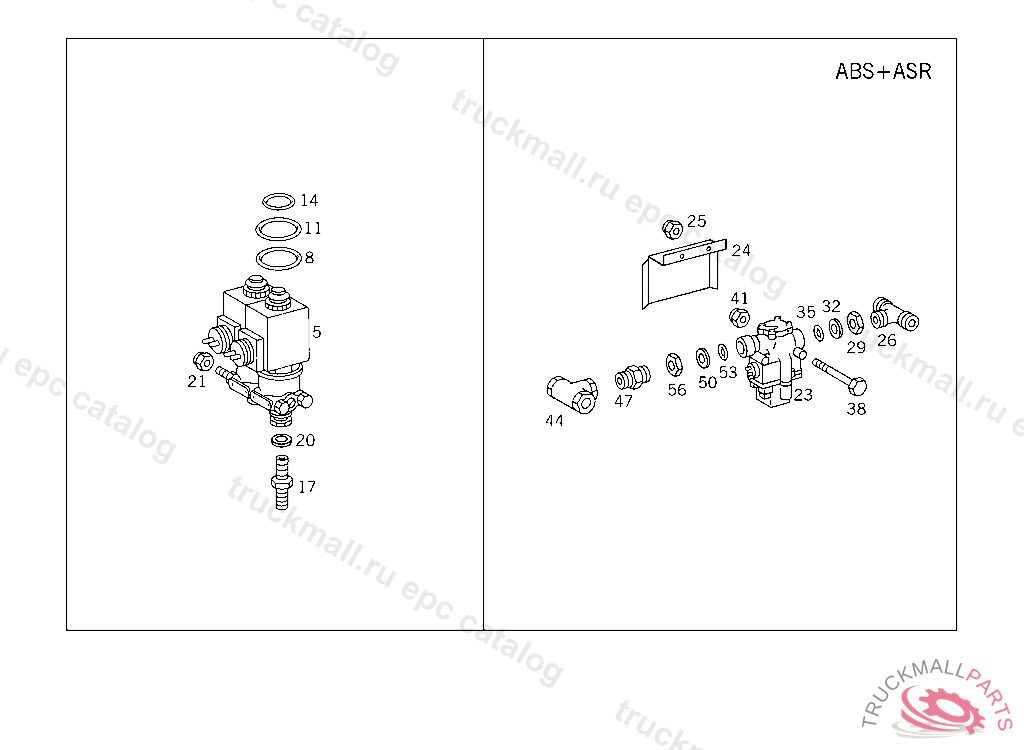

Поз.
Артикул
Описание
5
VALVE REAR AXLE 3/2-WAY VALVE ABS/ASR
5
VALVE 3/2-WAY
8
SEAL RINGWABCO
11
SEAL RINGWABCO
14
SEAL RINGWABCO
17
FITTING LINE CONNECTION
20
SEAL RING 3/2-WAY VALVE
21
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
21
NUT HORN TO BRACKET M8
23
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
23
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
24
COVERING REGULATING SOLENOID VALVE TRAILING AXLE
25
NUT HORN TO BRACKET M8
26
T-FITTING AIR DEHYDRATOR,CONNECTION:21"
29
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
32
THRUST RING CHECK VALVE TO AIR RESERVOIR
32
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
32
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
35
O-RING CHECK VALVE TO AIR RESERVOIR
38
HEXAGON HEAD BOLTM8X85
38
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
38
SCREW , Replaced By: N910143008010
41
NUT HORN TO BRACKET M8
44
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
47
FITTING TWO-WAY VALVE,CONNECTION: "2"
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
53
O-RING CHECK VALVE TO AIR RESERVOIR
56
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
