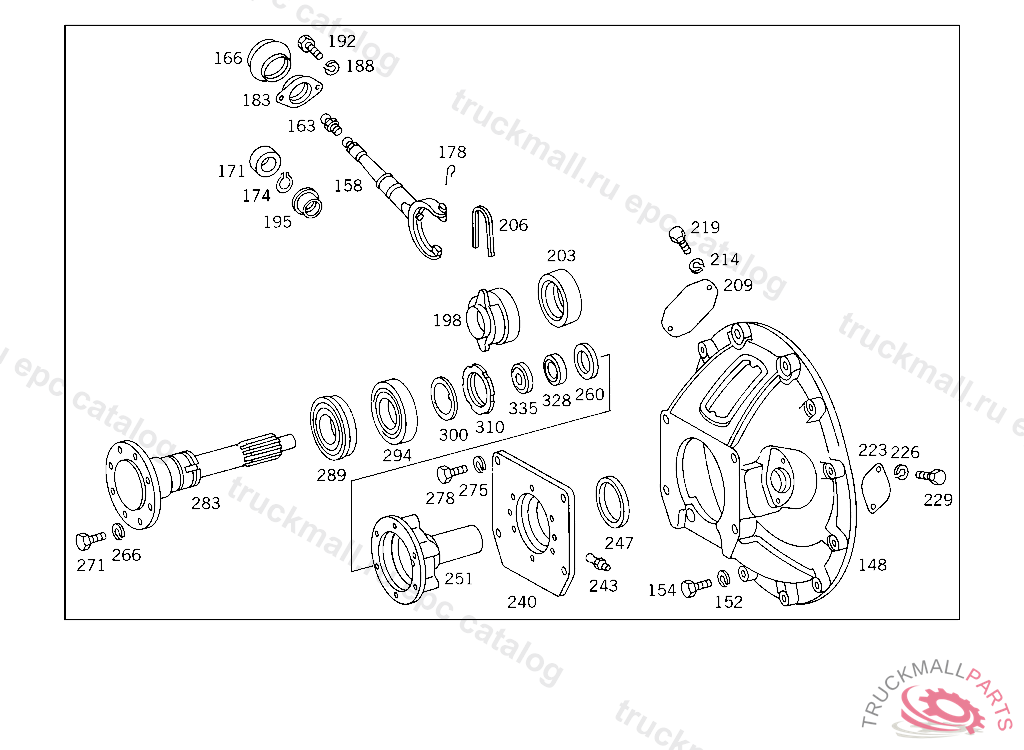

Поз.
Артикул
Описание
148
BELL HOUSING
148
BELL HOUSING , Replaced By: A3552510101
152
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
154
SCREW EXHAUST PIPE TO BRACKET
158
RELEASE LEVER , Replaced By: A3272540308, +001A3029910015
163
BALL PIVOT RELEASE YOKE
163
BALL PIVOT RELEASE YOKE
166
SNAP RING BEARING TO RELEASE YOKE
166
BOOT INSIDE
171
JOINT BEARING
174
LOCK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: N912009029100
178
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
183
COVER RELEASE YOKE TO BEARING BRACKET
188
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
192
SCREW , Replaced By: N304017008016
192
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
195
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
195
BOOT , UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION, Replaced By: A3142540197
198
RELEASE BEARING CLUTCH
203
BALL BEARING
206
STRIP RELEASE BEARING TO 340 250 02 15, UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
206
STRIP ,KB846165
209
END COVER TOP,4 696330
214
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
219
SCREW COVER PLATE TO COVER PLATE M 6 X 12
219
SCREW , Replaced By: N304017006018
223
FLANGE CLUTCH BRAKE
226
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
229
SCREW , Replaced By: N304017008016
229
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
FLANGE
243
GREASE NIPPLE PROTECTIVE TUBE
247
RADIAL SEAL RING
251
TRANSMISSION CASE COVER FRONT, FROM IDENT NO.797910-4 473926 FROM IDENT NO.4 473927 SEE MICROFICHE, MODEL 714.0
260
SEAL RING
266
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
271
SCREW , Replaced By: N304014008002
271
SCREW VALVE TO BRACKET
275
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
278
SCREW BRACKET TO TELESCOPIC TUBE,K 131522
283
CLUTCH SHAFT
289
CYLINDR. ROLLER BEARING STANDARD
294
ANGULAR CONTACT BEARING DRIVE SHAFT
300
SEAL RING , Replaced By: A3022620162, +001A3859900351
300
SEAL RING BEARING TO DRIVE SHAFT
310
NUT BEARING TO DRIVE SHAFT
328
SELF-ALGN. ROLLER BEARING
335
COVER RING
999
THREADED PIN
999
KEY
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
999
COTTER PIN LEVER TO ROD
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
TRANSMISSION CASE COVER , Replaced By: A3522610118
999
RELEASE LEVER
999
CLUTCH SHAFT
999
NUT , Replaced By: A3859900351, +001A3022620162
999
THRUST WASHER. SEAL RING AS REQUIRED 3,74 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,66 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,58 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,50 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,42 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,34 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,26 MM
999
SEAL RING AS REQUIRED 3,18 MM
999
THRUST WASHER. SEAL RING AS REQUIRED 3,10 MM
999
SEAL HOLDER
999
RELEASE BEARING , Replaced By: A3052500615
999
CLUTCH DISC , Replaced By: A0042509003
999
ANGULAR CONTACT BEARING DRIVE SHAFT
999
CLUTCH PRESSURE PLATE , Replaced By: A0032501604
999
CLUTCH PRESSURE PLATE
999
ANGULAR CONTACT BEARING DRIVE SHAFT
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 370 MM,TO 001 250 74 04,003 250 35 04
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524419, +002A0002523975
999
SCREW RELEASE LEVER,BRACKET
999
NUT , Replaced By: A0002523372
999
SPRING CLUTCH PRESSURE PLATE
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
CLAMP RELEASE FLANGE TO RELEASE LEVER
999
LEAF SPRING , Replaced By: A0002523419
999
RIVET LEAF SPRING TO CLUTCH DISC
999
CLAMP , Replaced By: A0002523227
999
RIVET , Replaced By: A0002522075
999
FLANGE CLUTCH PRESSURE PLATE
999
PRESSURE PLATE
999
LOCK , Replaced By: A0002521173
