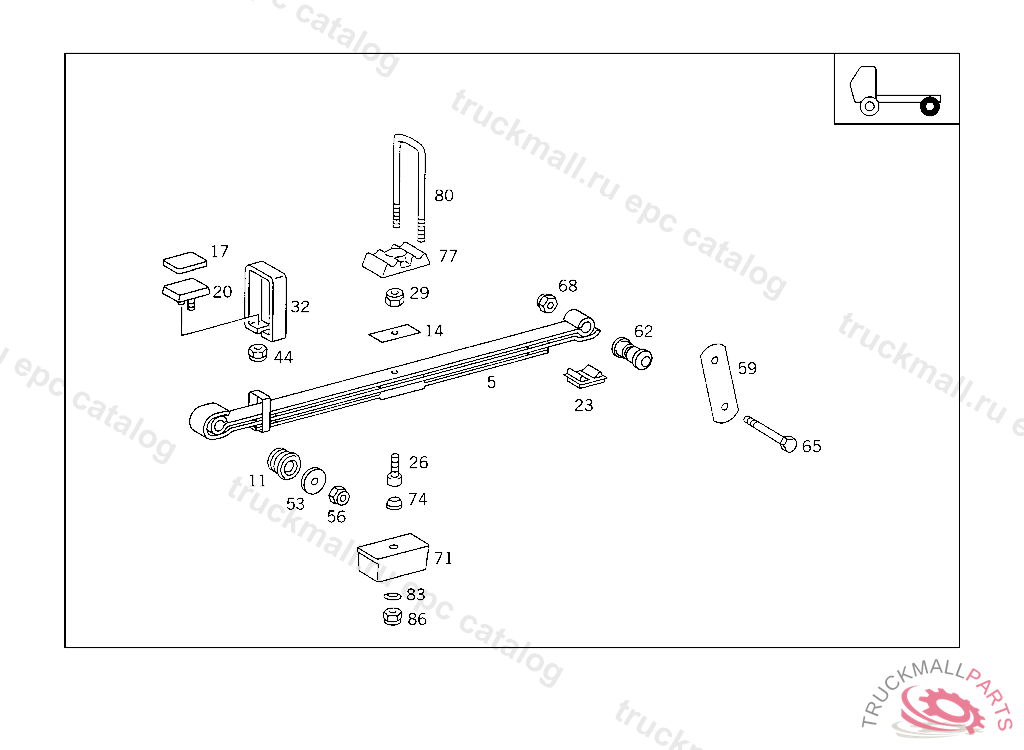

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
11
BUSHING SPRING EYE,FRONT
11
BUSHING SPRING EYE,REAR
14
SHIM , Replaced By: A9703210184
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM , Replaced By: A9703210184
17
SHIM BETWEEN THE SPRING LEAVES
20
RUBBER BUFFER
23
RUBBER BUFFER BETWEEN THE SPRING EYES
26
SPRING BOLT
29
NUT BRACKET TO BEARING BRACKET
32
SPRING CLAMP AT SPRING LEAF NO.5
44
NUT BRACKET TO BRACKET
53
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
56
NUT TORSION BAR TO BEARING BRACKET,5 904661
59
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
62
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
65
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
68
NUT TORSION BAR TO BEARING BRACKET,5 904661
71
SHIM REAR SPRING
74
CENTERING BOLT (CENTERING CONE),5 361887
74
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
77
PLATE REAR SPRING TO REAR AXLE
80
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
83
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
86
NUT FRONT SPRINGS TO FRONT AXLE
