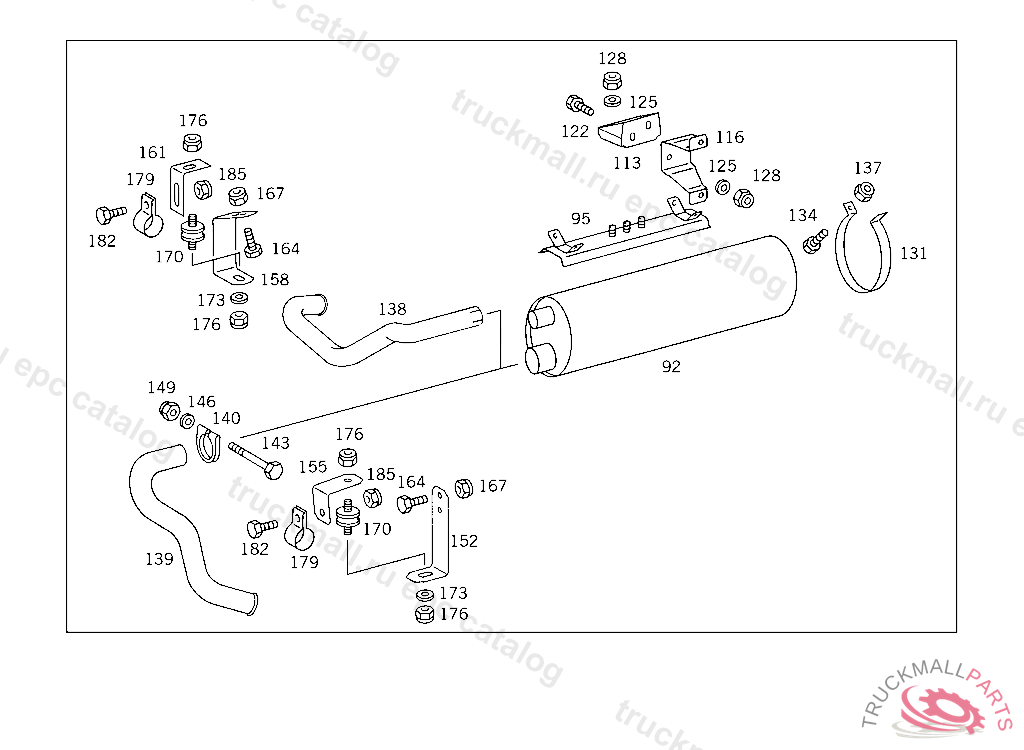

Поз.
Артикул
Описание
92
EXHAUST MUFFLER , NOT USED
95
SUPPORT EXHAUST MUFFLER TO BRACKET
113
BRACKET EXHAUST MUFFLER TO BRACKET
116
BRACKET EXHAUST MUFFLER
122
SCREW EXHAUST PIPE TO SIDE MEMBER
125
WASHER , Replaced By: N007349010007
125
WASHER STRUT TO CROSS MEMBER
125
WASHER STRUT TO CROSS MEMBER
128
NUT , Replaced By: N913023010002
128
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
128
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
131
BRACKET , Replaced By: A6744914541
131
STRAP EXHAUST MUFFLER TO SIDE MEMBER
134
SCREW , Replaced By: N910105010009
134
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
137
NUT , Replaced By: N913023010002
137
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
138
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
139
REAR EXHAUST PIPE (TAIL PIPE), RECOMMENDED FOR TAKING ON STOCK
140
CLAMP REAR EXHAUST PIPE TO MUFFLER
143
SCREW , Replaced By: N910143008014
143
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
146
WASHER EXHAUST MUFFLER TO STRAP
146
WASHER , Replaced By: N000125008443
149
NUT BRACKET TO BRACKET
152
BRACKET , Replaced By: A3524920141
152
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
155
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
158
BRACKET BRACKET TO FILTER BRACKET
161
BRACKET FUEL LINES TO TRANSMISSION
164
SCREW BRACKET TO BRACKET
164
SCREW BRACKET TO BRACKET
164
SCREW , Replaced By: N910142008001
167
NUT BRACKET TO BRACKET
167
NUT BRACKET TO BRACKET
170
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
173
WASHER , Replaced By: N006902011100
173
WASHER , Replaced By: N006902011102
173
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
176
NUT , Replaced By: N913023010002
176
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
179
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
182
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
182
SCREW , Replaced By: N910105010011
185
NUT , Replaced By: N913023010002
185
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
