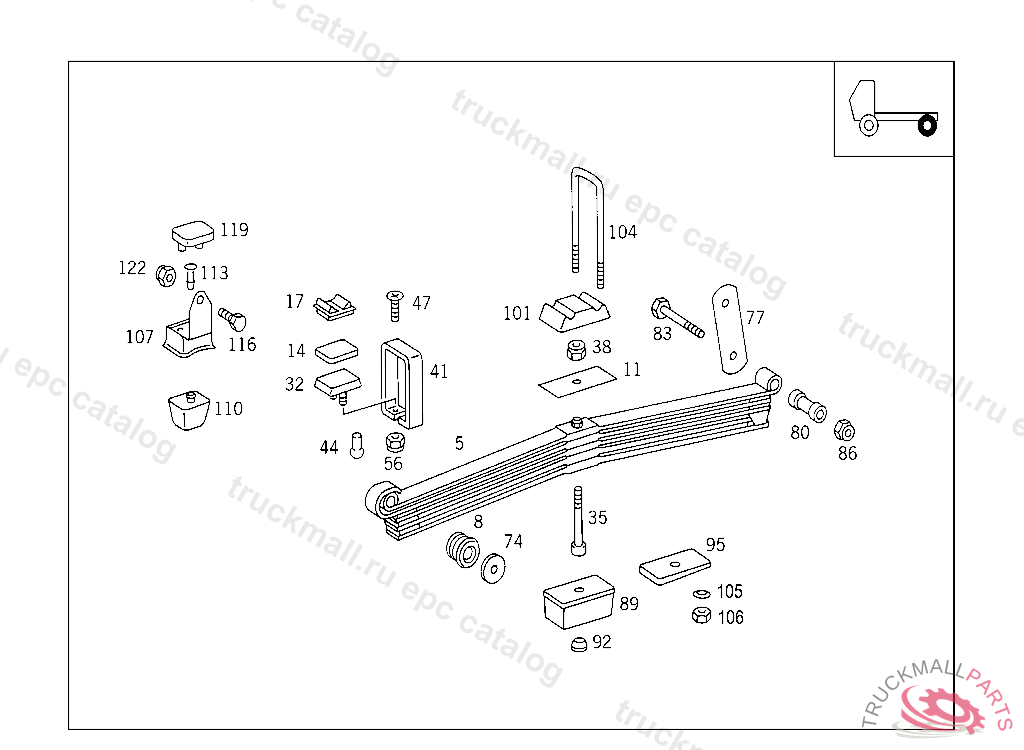

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),5 LEAVES
8
BUSHING SPRING EYE,REAR
8
BUSHING SPRING EYE,FRONT
11
SHIM , Replaced By: A9703210184
11
SHIM , Replaced By: A9703210184
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM BETWEEN THE SPRING LEAVES
17
RUBBER BUFFER BETWEEN THE SPRING EYES
32
RUBBER BUFFER BETWEEN THE SPRING LEAVES
35
SPRING BOLTM 12X120X14
38
NUT BRACKET TO BEARING BRACKET
41
SPRING CLAMP AT SPRING LEAF NO.5
44
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
47
SCREW SPRING CLAMP
56
NUT BRACKET TO BRACKET
74
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
77
SHACKLE (SPRING SHACKLE)
80
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
83
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
86
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
86
NUT , Replaced By: N910113018004
89
SHIM , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9703210184
89
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
101
PLATE REAR SPRING TO REAR AXLE
104
U-BOLT REAR SPRING TO REAR AXLE 320 MM
105
WASHER REAR SPRING TO REAR AXLE
106
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
107
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733200243
107
BRACKET AXLE STOP
110
HELPER SPRING RUBBER BUFFER
113
PIN RUBBER BUFFER
116
SCREW EXHAUST PIPE TO SIDE MEMBER
119
SHIM BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
122
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
122
NUT , Replaced By: N913023010002
