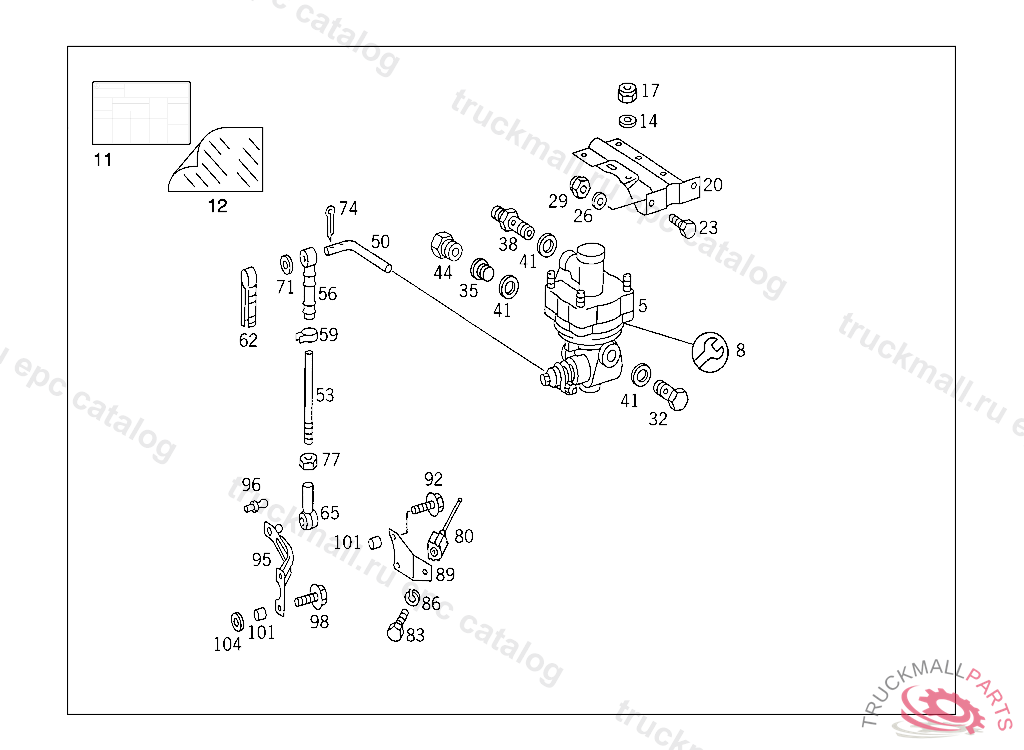

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
11
GUIDE SIGN LOAD-DEPENDING BRAKE
12
ADHESIVE FOIL GUIDE SIGN
14
WASHER EXHAUST MUFFLER TO STRAP
14
WASHER , Replaced By: N000125008443
17
NUT , Replaced By: N913004008001
20
BRACKET BRAKE POWER REGULATOR
23
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
23
SCREW LEFT AND RIGHT CONSOLES TO CAB
23
SCREW , Replaced By: N308676012015
26
WASHER BRACKET TO FRAME
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
29
NUT SUPPORT TO SIDE MEMBER
44
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
44
SCREW. UNION SCREW LINE CONNECTION
50
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
53
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
56
CONNECTOR PULL ROD TO LEVER
59
CLAMP , Replaced By: N000000000665
59
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
62
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
65
BALL SOCKET PULL ROD
65
BALL SOCKET PULL ROD, Replaced By: A0009918222
71
WASHER , Replaced By: N000125008443
71
WASHER EXHAUST MUFFLER TO STRAP
74
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
77
NUT
95
BRACKET ,5 936365
96
BALL PIVOT
98
SCREW METAL SPRING BELLOWS TO BRACKET M 12X28
104
WASHER LEFT AND RIGHT CONSOLES TO CAB
