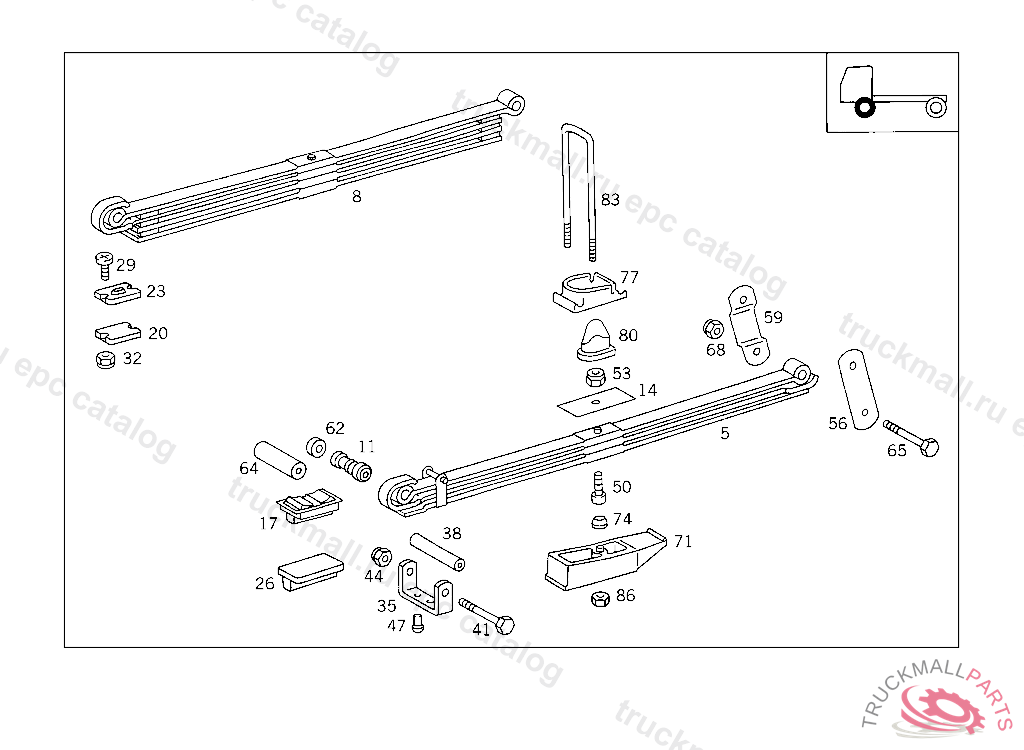

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
8
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
8
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753205002
8
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 050015, Replaced By: A6753207402
11
BUSHING
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
RUBBER BUFFER BETWEEN THE SPRING EYES
26
SHIM BETWEEN THE SPRING LEAVES
35
SPRING CLAMP FRONT SPRING,5 533058 TO BE ADAPTED DURING ASSEMBLY
35
SPRING CLAMP , Replaced By: A6173210333
35
SPRING CLAMP , Replaced By: A6173210333
35
SPRING CLAMP ,5 940410
38
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
38
SPACER TUBE SPRING CLAMP
41
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
41
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
44
NUT END PIECE TO EXHAUST PIPE
47
RIVET SPRING CLAMP TO SPRING LEAF
50
SPRING BOLT
50
SPRING BOLT
53
HEXAGON NUT. NUT SPRING BOLT
53
NUT , Replaced By: N910113012005
56
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
59
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
62
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358488
65
HEXAGON HEAD BOLT. SCREW TORSION BAR TO BRACKET
65
SCREW , Replaced By: N308765016004
65
SCREW SPACER TUBE TO MOUNTING
68
NUT , Replaced By: N910113016001
68
NUT CONSOLE TO SUPPORT
71
SHIM FRONT SPRING TO FRONT AXLE,RIGHT,5 256347
71
SHIM FRONT SPRINGS TO FRONT AXLE
71
SHIM FRONT SPRINGS TO FRONT AXLE
71
SHIM FRONT SPRING TO FRONT AXLE,LEFT
74
DOWEL PIN (CENTERING CONE),5 361886
74
CENTERING BOLT (CENTERING CONE),5 361887
74
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
74
DOWEL PIN , Replaced By: A6749910060
77
PLATE FRONT SPRINGS TO FRONT AXLE
80
HELPER SPRING FRONT SPRING STOP
83
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
83
U-BOLT , Replaced By: A3143510725
83
U-BOLT , Replaced By: A3163510025
83
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
83
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
86
NUT FRONT SPRINGS TO FRONT AXLE
