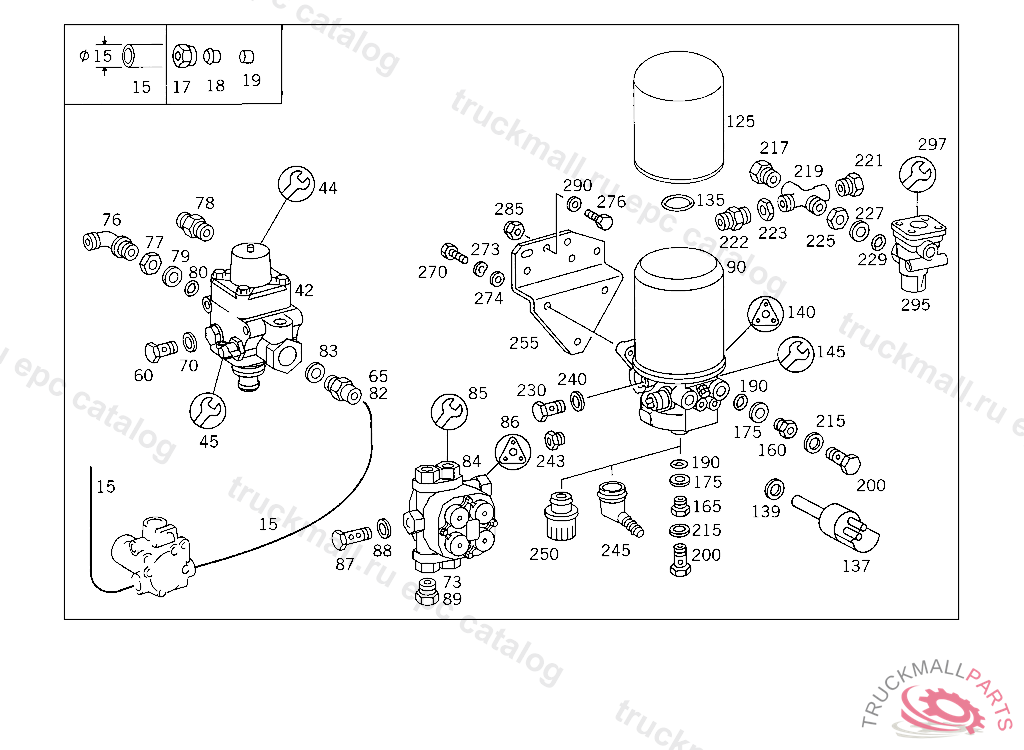

Поз.
Артикул
Описание
15
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
17
UNION NUT LINE MOUNTING,5 9363655 812730
17
UNION NUT LINE CONNECTION
18
GLAND LINE CONNECTION
18
GLAND LINE MOUNTING,5 9363655 812730
19
SLEEVE LINE CONNECTION
42
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
42
PRESSURE REGULATORKNORR
42
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
42
PRESSURE REGULATORWABCO
42
PRESSURE REGULATORKNORR
42
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
42
PRESSURE REGULATORWABCO, Replaced By: A0034313806
42
PRESSURE REGULATORWABCO
44
REPAIR KIT PRESSURE REGULATOR KNORR
44
REPAIR KIT PRESSURE REGULATOR BOSCH,241
44
REPAIR KIT DIAPHRAGM PART BOSCH,209
44
REPAIR KIT PRESSURE REGULATOR WABCO
44
REPAIR KIT PRESSURE REGULATOR KNORR
45
REPAIR KIT SEAL RING BOSCH,209
60
HOLLOW SCREW HEATING CONNECTION
65
FITTING LINE CONNECTION
70
SEAL RING LINE CONNECTION
73
SCREW. UNION SCREW LINE CONNECTION
73
SCREW. UNION SCREW , Replaced By: A0009973734
76
ELBOW FITTING ,5 433281
76
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
77
NUT CHECK VALVE TO AIR RESERVOIR
78
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
79
THRUST RING CHECK VALVE TO AIR RESERVOIR
79
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
80
O-RING CHECK VALVE TO AIR RESERVOIR
82
FITTING LINE CONNECTION
83
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
84
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
84
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
84
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
84
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
84
VALVE , Replaced By: A0034314706
84
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034314106
85
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
86
REPAIR KIT , Replaced By: A0004304706
86
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
86
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
87
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
88
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
88
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SCREW. UNION SCREW LINE CONNECTION
89
SCREW. UNION SCREW LINE CONNECTION
89
SCREW. UNION SCREW , Replaced By: A0009973734
90
AIR DEHYDRATOR , Replaced By: A0014310515
90
AIR DEHYDRATORKNORR,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014310415, +001A0004292139
90
AIR DEHYDRATORWABCO,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014312215, +001A0004292139
90
AIR DEHYDRATORBOSCH,5 9375855 937586, Replaced By: A0014310715, +001A0004292139
90
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
90
AIR DEHYDRATORKNORR, Replaced By: A0024317115
90
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
90
AIR DEHYDRATORWABCO
90
AIR DEHYDRATORBOSCH,5 937586
90
AIR DEHYDRATOR , Replaced By: A0014310815, +001A0004292139
90
AIR DEHYDRATORBOSCH
90
AIR DRIERKNORR
90
AIR DRIERKNORR,5 937586
90
AIR DEHYDRATOR , Replaced By: A0014310515, +001A0004292139
90
AIR DEHYDRATOR , Replaced By: A0014312115, +001A0004292139
90
AIR DEHYDRATOR"BOSCH",5 502947
90
AIR DEHYDRATOR"WABCO",5 502947
90
AIR DEHYDRATOR"KNORR",5 502947
125
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
125
AIR CLEANER COMPLETE TO BOSCH,KNORR
125
FILTER ELEMENT , Replaced By: A0004293695
125
FILTER ELEMENT , Replaced By: A0004293795
125
AIR CLEANER , Replaced By: A0004293695
125
FILTER , Replaced By: A0004291297
135
SEAL RINGWABCO
137
HEATERKNORR
137
HEATERWABCO
137
HEATER CARTRIDGEBOSCH
137
HEATERBOSCH, Replaced By: A0005450333
139
SEAL RING , Replaced By: A0005480670
140
GASKET KITBOSCH
140
GASKET KITWABCO
145
GASKET KITKNORR
160
FITTING AIR RESERVOIR,CONNECTION: "11"
160
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
165
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
175
THRUST RING CHECK VALVE TO AIR RESERVOIR
175
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
190
O-RING CHECK VALVE TO AIR RESERVOIR
200
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
215
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
217
SCREW. UNION SCREW LINE CONNECTION
219
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
221
SCREW. UNION SCREW LINE CONNECTION
221
SCREW. UNION SCREW , Replaced By: A0009973734
222
FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
223
NUT CHECK VALVE TO AIR RESERVOIR
225
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
227
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
229
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
229
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
230
HOLLOW SCREW HEATING CONNECTION
240
SEAL RING LINE CONNECTION
243
SCREW. UNION SCREW LINE CONNECTION
243
SCREW. UNION SCREW , Replaced By: A0009973734
245
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
245
CONNECTOR 75 DEGREES
245
CONNECTOR 90 DEG. OFFSET
250
MUFFLER DEHYDRATOR
250
MUFFLER VALVE BLEEDING
255
BRACKET AIR DEHYDRATOR
255
BRACKET AIR DEHYDRATOR
255
BRACKET AIR DEHYDRATOR,5 9363655 812730
255
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
255
BRACKET AIR DEHYDRATOR
255
BRACKET AIR DEHYDRATOR,5 537473
270
SCREW BRACKET TO FRAME SIDE MEMBER
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
270
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
270
SCREW , Replaced By: N308676012012
273
SPRING WASHER CAB FLOOR
273
SPRING WASHER STEERING COLUMN BRACKET TO CAB
274
WASHER RADIATOR TO RUBBER MOUNTING
274
WASHER , Replaced By: N000125010532
276
SCREW , Replaced By: N308676012012
276
SCREW CROSS MEMBER TO FRAME M 10X30
276
SCREW CONSOLE TO SIDE MEMBER
276
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
276
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
276
SCREW , Replaced By: N308676012026
285
NUT SUPPORT TO SIDE MEMBER
285
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
290
WASHER BRACKET TO FRAME
295
VALVE (PRESSURE LIMIT VALVE)
297
REPAIR KIT PRESSURE LIMIT VALVE
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
AIR DEHYDRATOR"WABCO",5 9363665 812731
999
ANTI-FREEZE DEVICEWABCO
999
HEATER , Replaced By: A0005480870
999
HEATER , Replaced By: A0005480670
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
PROTECTIVE CAPWABCO
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
999
RESERVOIR , Replaced By: A0034322001
999
RESERVOIR ,5 934167, Replaced By: A0034320301
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
GASKET KIT SEAL RINGS KNORR,5 937586
999
SEAL HOLDER SEAL RINGS KNORR
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,K 186868
999
GASKET KITKNORR
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0049975736
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
999
SEAL RINGWABCO
999
SEAL RING , Replaced By: A0005480870
999
SEAL RING , Replaced By: A0179978148
999
SEAL RINGKNORR
999
BRACKET SOLENOID VALVE
999
BRACKET , Replaced By: A6764320240
999
BRACKET FLUID RESERVOIR,5 936365
999
SUPPORT FLUID RESERVOIR,5 287295SCHRAUBANSCHLUSS
999
BRACKET 3/2-WAY VALVE TO BRACKET,5 9363655 812730
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW , Replaced By: N304017008043
999
SCREW , Replaced By: N304017006016
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW VALVE TO BRACKET
999
SCREW PUMP TO BRACKET
999
SCREW VALVE TO BRACKET M 8X55
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION HEATING CONNECTION,K 169122
