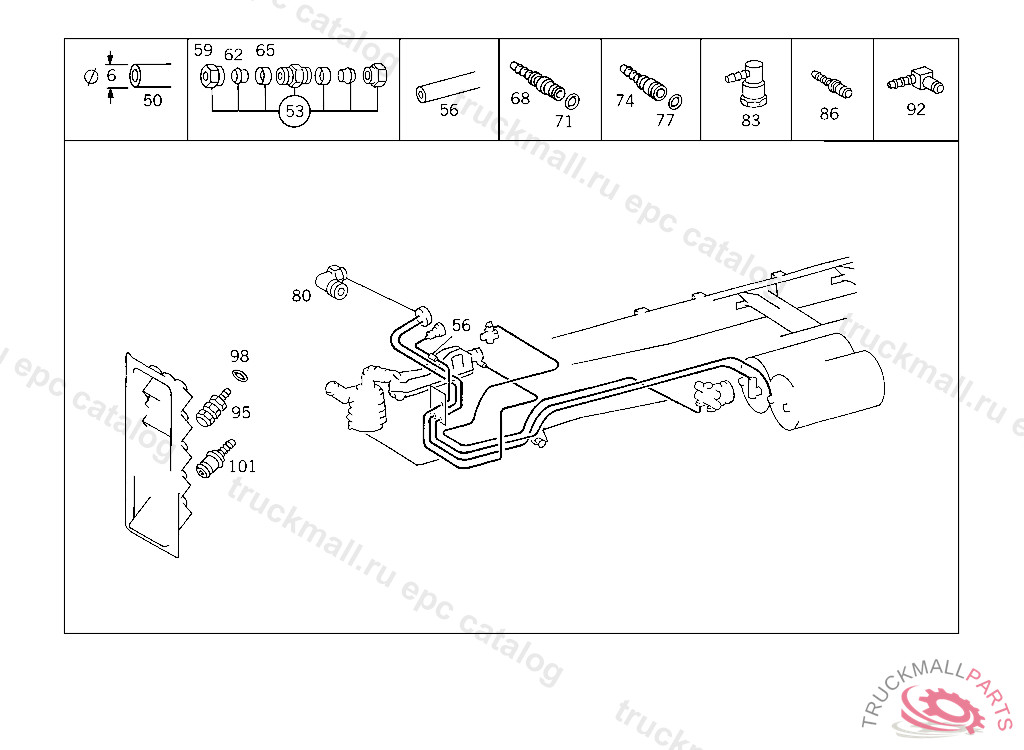

Поз.
Артикул
Описание
50
PLASTIC PIPE RISING PIPE 4X6 MM
50
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
53
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
56
HOSE LEAK LINE, ORDER BY THE METER
59
UNION NUT
62
SEAL CONE
62
GLAND , Replaced By: A0019901667
65
SLEEVE LEAK LINE
68
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
71
SEAL RING
74
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
77
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
80
FITTING FROM PUMP TO CYLINDER
80
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
83
ELBOW FITTING
86
CONNECTOR , Replaced By: A0029905378
86
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
92
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
92
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
CONNECTOR LINE MOUNTING
98
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
101
PLUG BLEEDING,D 013038
