Поз.
Артикул
Описание

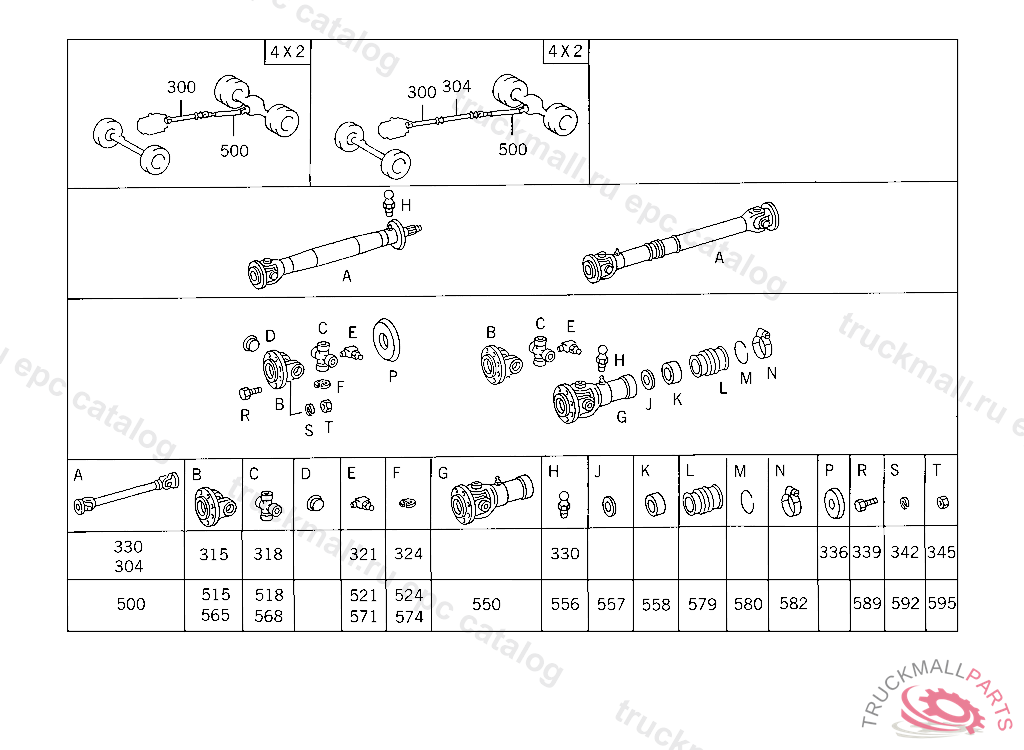

300
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 836 MM
304
PROPELLER SHAFT FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II 972 MM
315
DRIVE FLANGE
318
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
318
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
321
GREASE NIPPLE
321
GREASE NIPPLE
324
SNAP RING2.700 MM
324
SNAP RING2.750 MM
324
SNAP RING2.725 MM
324
SNAP RING2.525 MM
324
SNAP RING2.650 MM
324
SNAP RING2.575 MM
324
SNAP RING2.500 MM
324
SNAP RING2.550 MM
324
SNAP RING2.675 MM
324
SNAP RING2.650 MM
324
SNAP RING2.700 MM
324
SNAP RING2.750 MM
324
SNAP RING2.625 MM
324
SNAP RING2.600 MM
324
SNAP RING2.500 MM
324
SNAP RING2.600 MM
324
SNAP RING2.550 MM
330
GREASE NIPPLE INTERMEDIATE LEVER
336
PROTECTIVE CAP FRONT PROPELLER SHAFT
339
SCREW , Replaced By: A0079901001
339
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
342
LOCK WASHER , Replaced By: N912004010102
345
NUT , Replaced By: N308673010001
500
PROPELLER SHAFT FROM INTERMEDIATE BEARING II TO REAR AXLE 1775 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
518
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
521
GREASE NIPPLE
521
GREASE NIPPLE
524
SNAP RING2.700 MM
524
SNAP RING2.750 MM
524
SNAP RING2.725 MM
524
SNAP RING2.525 MM
524
SNAP RING2.650 MM
524
SNAP RING2.500 MM
524
SNAP RING2.575 MM
524
SNAP RING2.550 MM
524
SNAP RING2.675 MM
524
SNAP RING2.650 MM
524
SNAP RING2.700 MM
524
SNAP RING2.750 MM
524
SNAP RING2.550 MM
524
SNAP RING2.600 MM
524
SNAP RING2.500 MM
524
SNAP RING2.600 MM
524
SNAP RING2.625 MM
550
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
556
GREASE NIPPLE INTERMEDIATE LEVER
557
SEAL RING , PROPELLER SHAFT WITH BOOT
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
568
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
571
GREASE NIPPLE
571
GREASE NIPPLE
574
SNAP RING2.700 MM
574
SNAP RING2.750 MM
574
SNAP RING2.525 MM
574
SNAP RING2.725 MM
574
SNAP RING2.650 MM
574
SNAP RING2.575 MM
574
SNAP RING2.500 MM
574
SNAP RING2.550 MM
574
SNAP RING2.675 MM
574
SNAP RING2.650 MM
574
SNAP RING2.700 MM
574
SNAP RING2.750 MM
574
SNAP RING2.600 MM
574
SNAP RING2.550 MM
574
SNAP RING2.625 MM
574
SNAP RING2.600 MM
574
SNAP RING2.500 MM
579
BOOT
579
BOOT REAR PROPELLER SHAFT
580
WIRE RING , WITH BOOT
582
LOOM TIE. CLAMP
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
589
SCREW , Replaced By: A0079901001
592
LOCK WASHER , Replaced By: N912004010102
595
NUT , Replaced By: N308673010001
