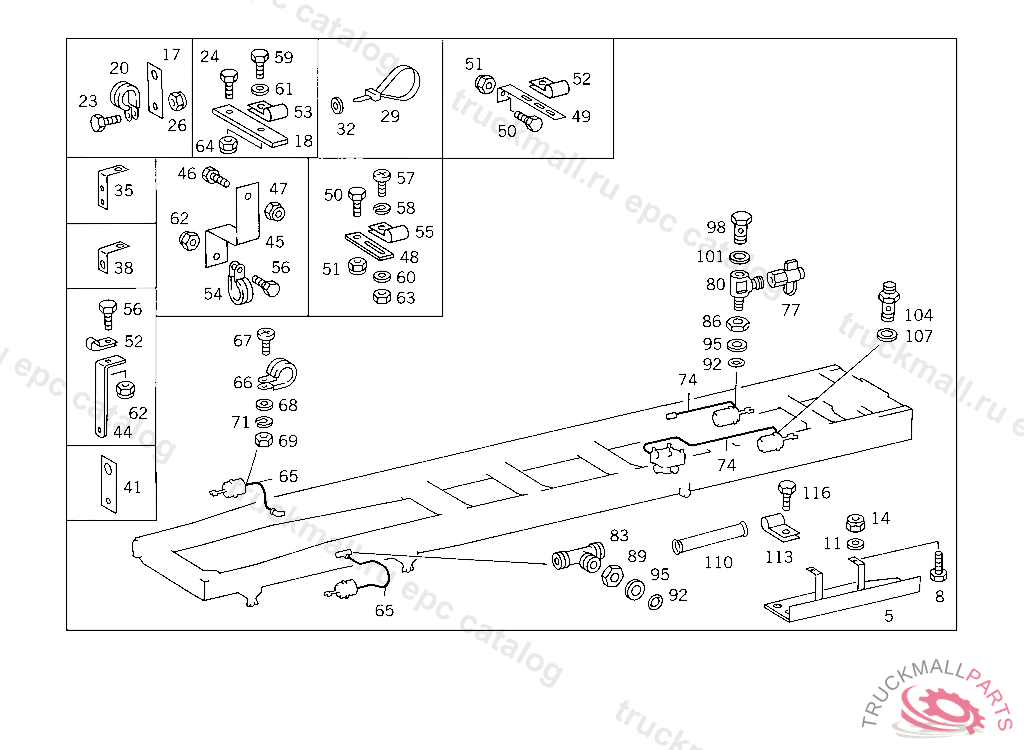

Поз.
Артикул
Описание
5
PROTECTIVE PLATE COMPRESSED AIR LINES
8
SCREW , Replaced By: N304017010002
11
WASHER GROUND CABLE
14
NUT BRACKET TO SIDE MEMBER,XB209706
17
BRACKET PEDAL BRACKET
20
CLAMP
23
SCREW LINES TO BRACKET
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
LOOM TIE ELECTRIC CABLE MOUNTING
29
LOOM TIE LINE MOUNTING
29
LOOM TIE , Replaced By: A3459977390
32
WASHER BRACKET TO LEFT SIDE MEMBER
32
WASHER , Replaced By: A3609902340
35
BRACKET AT CROSS MEMBER,D 030553
38
BRACKET AT BEARING BRACKET
41
BRACKET AT BEARING BRACKET
44
BRACKET AT TRANSMISSION,B 965920
52
CLAMP , Replaced By: A6739950001
56
SCREW CLAMP TO BRACKET
57
SCREW CONTROL UNIT
58
LOCK WASHER CABLE TO FUSE BOX
60
WASHER PLUG SOCKET TO BRACKET
62
NUT PUMP TO BRACKET
63
NUT
65
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
65
BRAKE HOSE , Replaced By: A3844207248
65
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
65
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
65
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
66
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
66
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
66
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
67
SCREW CAP TO BRACKET
68
WASHER PLUG SOCKET TO BRACKET
69
NUT
71
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
74
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030553
74
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER
74
BRAKE HOSE , Replaced By: A3844208148
74
BRAKE HOSE , Replaced By: A3844208248
77
TEST CONNECTION
77
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
77
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
80
T-FITTING AIR RESERVOIR,CONNECTION: "31"
83
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
86
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
89
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
THRUST RING LOCKING VALVE
95
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
98
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
101
SEAL RINGTO 006 997 00 72
104
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
107
SEAL RINGTO 006 997 00 72
