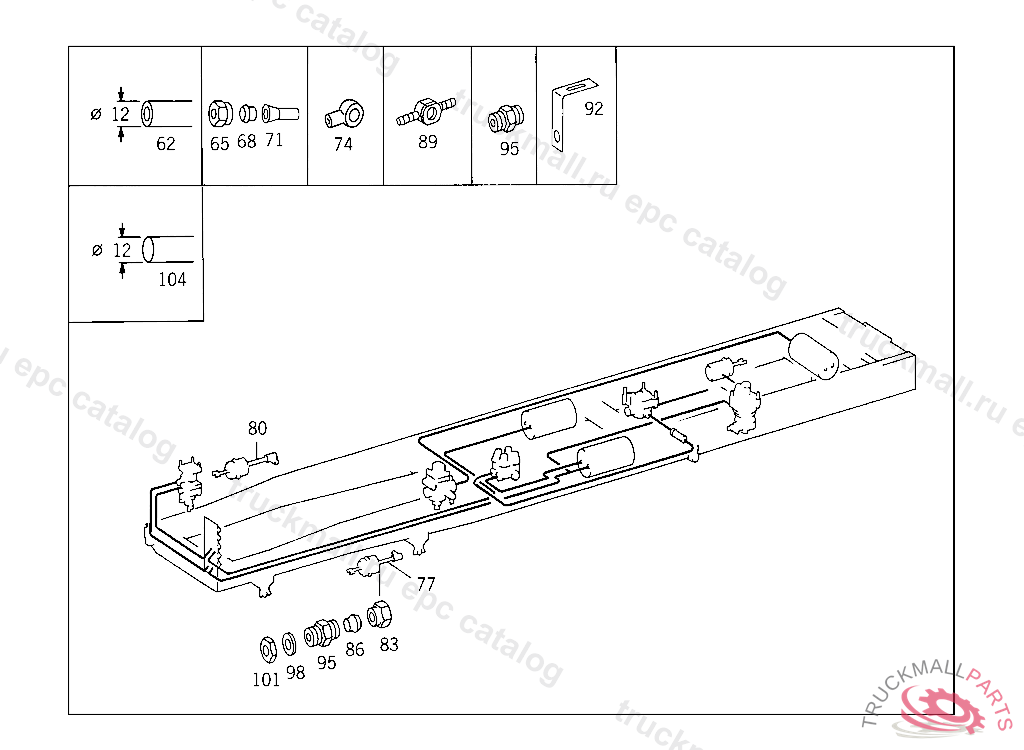

Поз.
Артикул
Описание
62
HOSE , Replaced By: A0009872827
62
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
62
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
65
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
GLAND , Replaced By: A0019901967
71
SLEEVE LINE CONNECTION
74
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
77
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
80
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
83
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
GLAND , Replaced By: A0019901967
89
BANJO UNION
92
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
95
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
95
CONNECTION FITTING
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
104
INSULATING HOSE COLOR CODE GREY,YB227219
104
INSULATING HOSE COLOR CODE BROWN
104
INSULATING HOSE CHECK VALVE,CONNECTION "2"
104
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
104
INSULATING HOSE , ORDER BY THE METER
