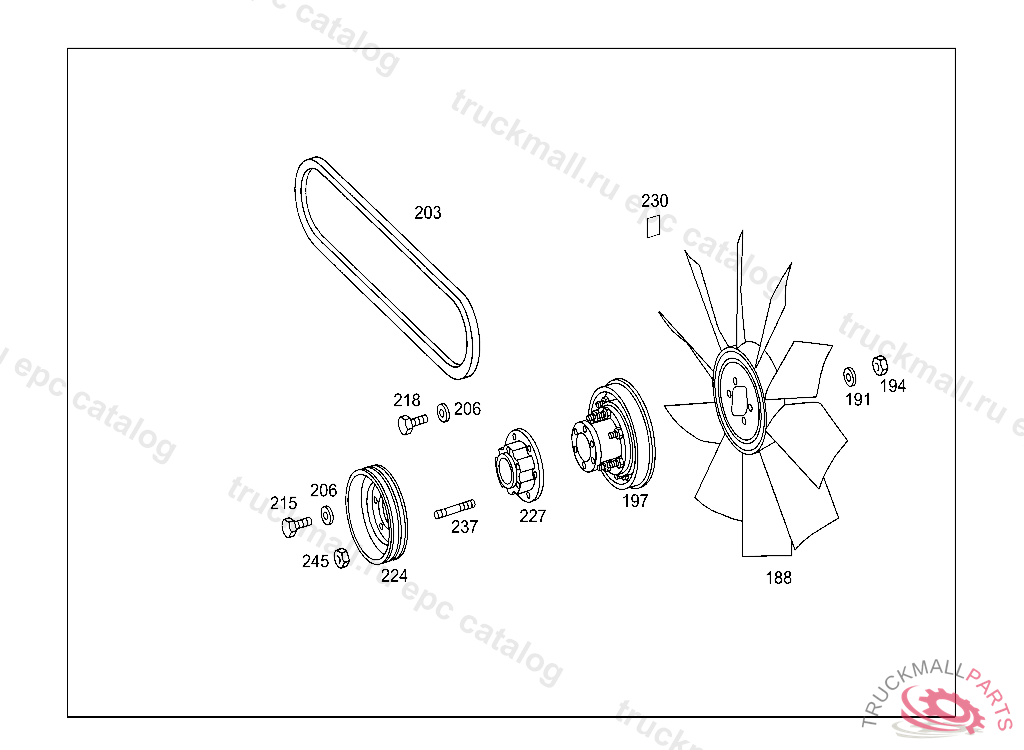

MBO 1019 - 685.510 - 50 RADIATOR
Поз.
Артикул
Описание
188
FAN
191
LOCK WASHER5/16
194
PART NAME MISSING NUT
197
FAN DRIVE FAN COUPLING
203
V-BELT1699MM
203
V-BELT1480MM,M 006539
203
V-BELT1497MM,M 006540M 022990
206
WASHER GROUND CABLE
215
SCREW , Replaced By: A0009903204
218
SCREW RADIATOR TO BUFFER
218
SCREW LINES TO BRACKET
224
227
INTERMEDIATE PIECE
227
INTERMEDIATE PIECE
227
230
TYPE DESIGNATION
237
STUD
237
STUD BOLT CONTROL BLOCK M 10X35
245
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
245
NUT BRACKET TO SIDE MEMBER,XB209706
