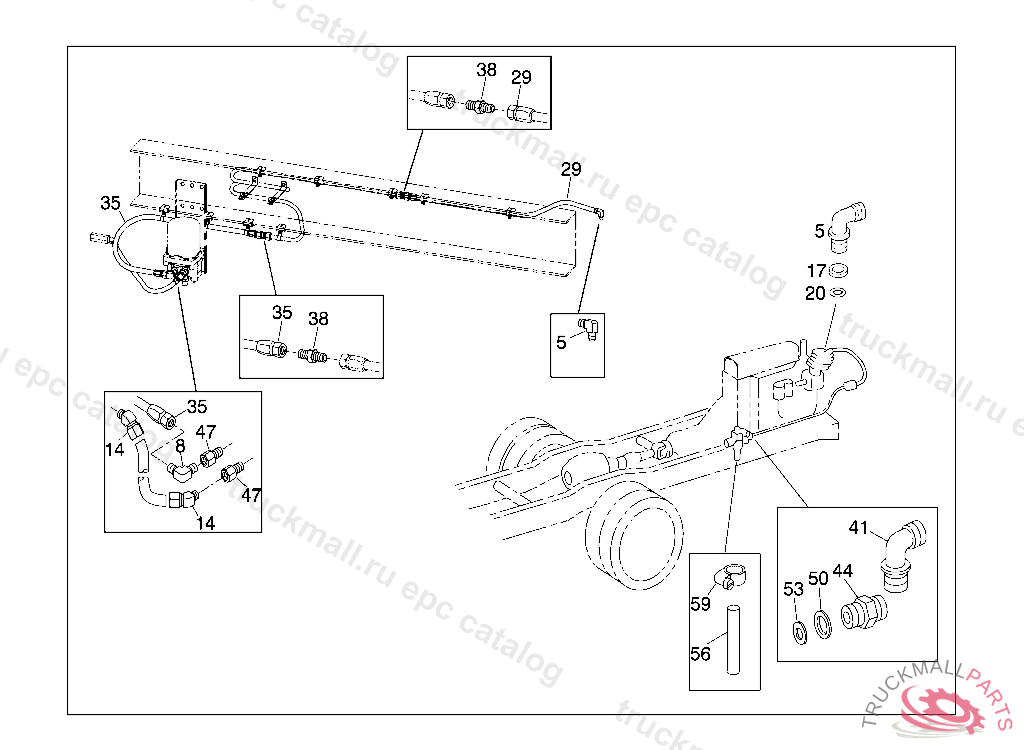

Поз.
Артикул
Описание
5
ELBOW FITTING AT AIR COMPRESSOR
8
ELBOW FITTING1/2 NPT X 7/8-14
14
ELBOW FITTING45GR. NPTFM X 5/8T
17
THRUST RING SUCTION LINE TO OIL PUMP
20
SEAL RING LINE CONNECTION
29
BRAKE HOSE AIR COMPRESSOR LINE
29
LINE AIR COMPRESSOR LINE
29
29
HOSE , Replaced By: A6854290835
35
38
HOSE CONNECTION CONNECTOR
38
FITTING CONNECTOR
38
CONNECTOR AIR COMPRESSOR LINE
41
ELBOW FITTING PRESSURE REGULATOR CONNECTION
44
FITTING PRESSURE REGULATOR CONNECTION
47
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
53
O-RING CHECK VALVE TO AIR RESERVOIR
56
HOSE PRESSURE REGULATOR CONNECTION, ORDER BY THE METER, Replaced By: QT48-00081-075
56
PART NAME MISSING PRESSURE REGULATOR CONNECTION, ORDER BY THE METER
59
CLAMP PRESSURE REGULATOR CONNECTION
59
CLAMP , Replaced By: A6854600258
999
999
CLAMP , Replaced By: QT01-27263-000
999
SCREW BRACKET MOUNTING 1/4 - 20 X 1.75
999
WASHER HAND BRAKE VALVE 1/4
999
ELBOW FITTING
999
CONNECTOR
999
