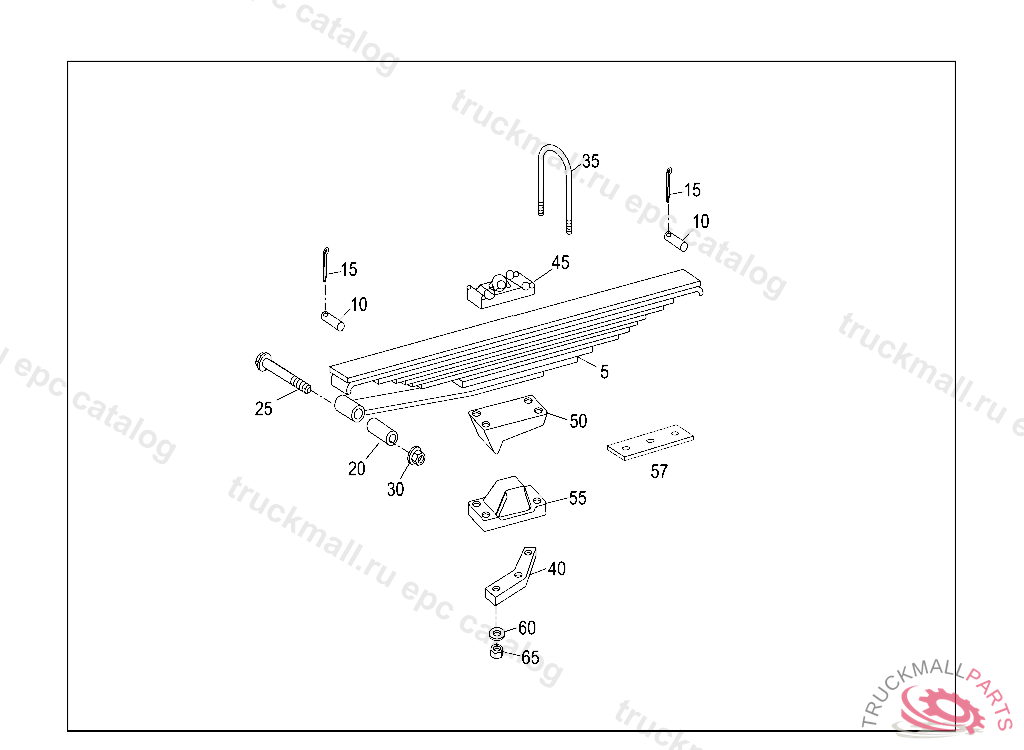

MBO 1019 - 685.510 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
5
10
PIN SPRING TO BEARING
10
SPRING SHACKLE BOLT ,M 036821
15
COTTER PIN1 - 8
20
SPRING SHACKLE BOLT ,M 036821
20
SHIM
25
STUD REAR SPRING 1 - 8X5
30
NUT1-8
35
CLAMP REAR SPRING
35
CLAMP REAR SPRING, Replaced By: A6853220825
40
40
40
40
BRACKET LEFT REAR SPRING LOAD ACCUMULATOR
40
BRACKET RIGHT REAR SPRING LOAD ACCUMULATOR
45
SPACER REAR SPRING
50
55
57
PLATE , Replaced By: A6853250126
60
WASHER SHIM TO AXLE 3/4
65
NUT SHIM TO AXLE 3/4-16
