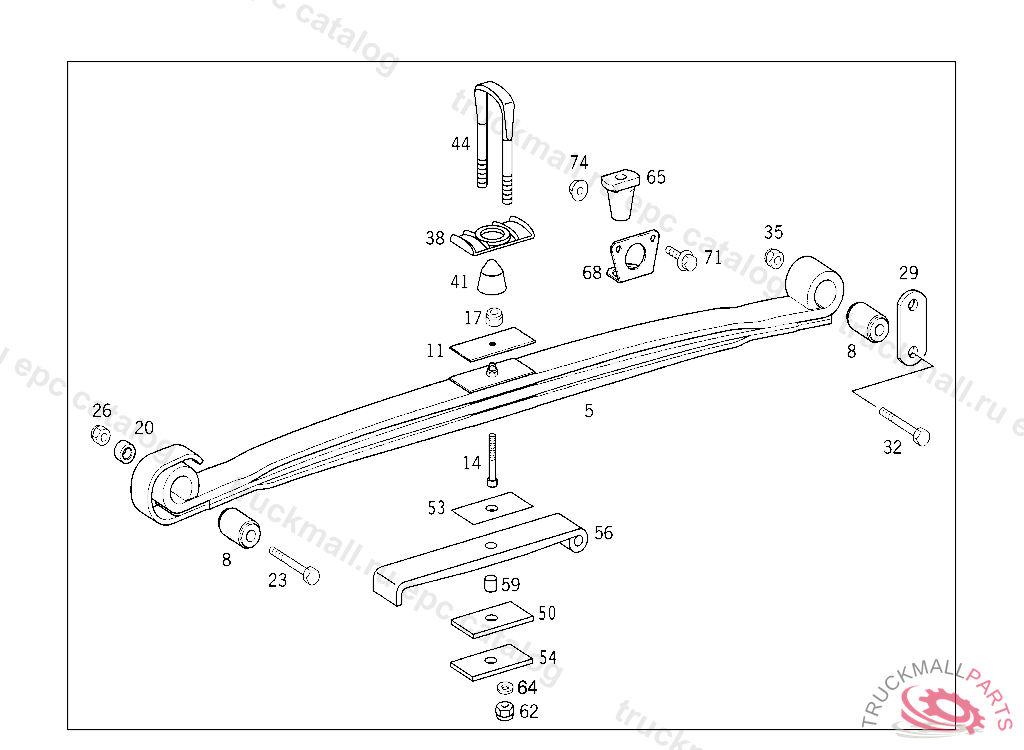

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3", VA I, FOR COMPONENT PARTS SEE SPARE PARTS LIST
8
RUBBER MOUNTING , Replaced By: A0003223285
8
RUBBER MOUNTING , Replaced By: A0003223285
8
RUBBER MOUNTING
8
RUBBER MOUNTING , Replaced By: A0003223285
11
SHIM BETWEEN THE SPRING LEAVES
14
SCREW (SPRING BOLT)
17
NUT STEERING SUPPORT TO FRAME
20
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
23
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
26
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
29
SHACKLE FRONT SPRING,REAR
32
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X150
35
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
38
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
41
RUBBER BUFFER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6553310044
44
U-BOLT , Replaced By: A3203310325
44
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
44
U-BOLT , Replaced By: A3873310925
50
50
53
54
56
59
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
62
NUT REAR SPRING TO REAR AXLE
64
WASHER SPARE WHEEL CARRIER
65
HELPER SPRING , Replaced By: A0003240908, +001A9413210040
65
65
68
BRACKET HELPER SPRING
71
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
74
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
