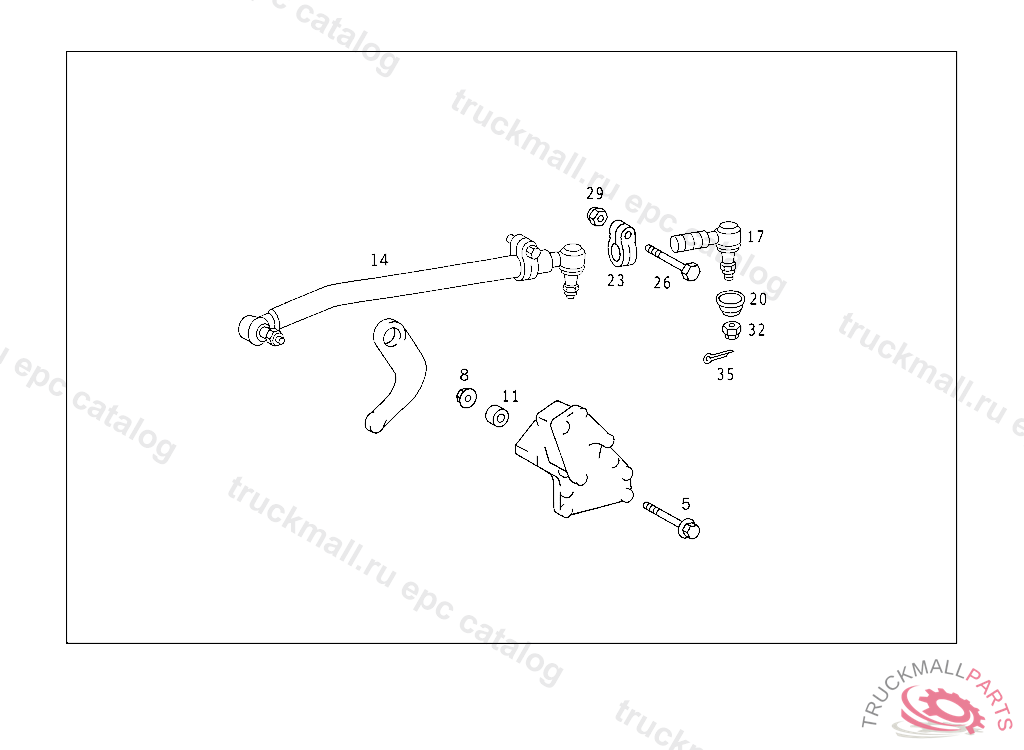

Поз.
Артикул
Описание
5
SCREW STEERING SUPPORT TO FRAME M 20X1.5X200
5
SCREW STEERING SUPPORT TO FRAME M 20X1.5X120
5
HEXAGON HEAD BOLT CABLE WINCH M20X1.5X80, Replaced By: N000000005728
5
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M20X1.5X55
8
NUT TRAILER COUPLING TO REAR CROSS MEMBER
11
BUSHING STEERING SUPPORT TO FRAME
14
DRAG LINK ACTUATING ROD ON PITMAN ARM AND AXLE,D 405108D 335155
14
14
14
DRAG LINK ACTUATING ROD ON PITMAN ARM AND AXLE
17
DRAG LINK END SCREWED PART OF JOINT TO 693 460 70 05
17
DRAG LINK END SCREWED PART OF JOINT TO 695 460 03 05,D 335155
17
DRAG LINK ENDTO A 3824608405
20
DUST CAP SCREWED PART OF JOINT TO 693 460 71 05
23
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
23
CLAMP JOINT TO TIE ROD TO 693 460 70 05
26
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
26
SCREW CLAMP TO 693 460 70 05,71 05
29
NUT BRACKET TO SIDE MEMBER M12X1.5
29
NUT BRACKET TO LEFT SIDE MEMBER
32
NUT SCREWED PART OF JOINT TO 693 460 70 05,71 05
32
NUT DRAG LINK END M 24X1.5
32
NUT DRAG LINK TO LEVER TO 384 460 02 05 / 06 05, Replaced By: A0019905451
35
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
