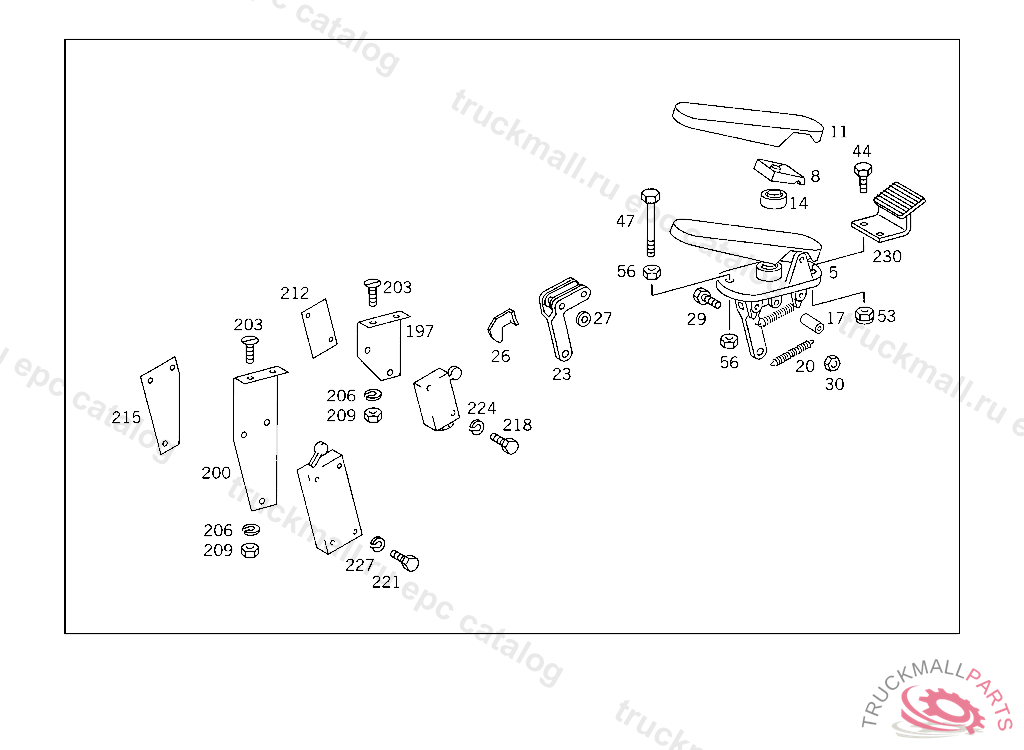

Поз.
Артикул
Описание
5
PEDAL BRAKE
8
BEARING BRAKE PEDAL
11
PAD BRAKE PEDAL
14
BOOT BRAKE PEDAL
17
BUSHING REVERSING LEVER
20
SPRING BRAKE PEDAL RESET
23
26
44
SCREW , Replaced By: N304017008034
47
SCREW BRACKET TO FRAME SIDE MEMBER M 8X75
53
NUT , Replaced By: N913004008001
56
NUT , Replaced By: N304032008006
197
203
SCREW COVER TO BATTERY SUPPORT M 6X16
206
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
209
NUT BALL PIVOT TO LEVER
212
218
SCREW AIR CLEANER TO BRACKET M 4X45
224
LOCK WASHER T-FITTING TO BRACKET
