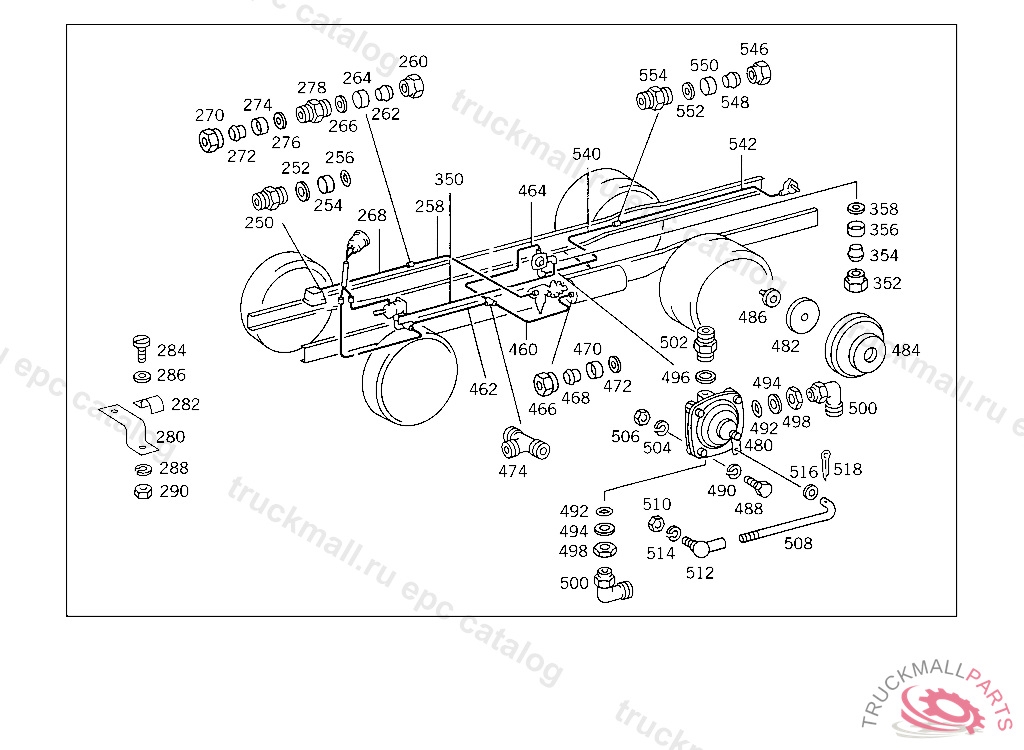

Поз.
Артикул
Описание
250
DOUBLE FITTING ,A 027954
252
SEAL RINGTO 376 131 74 01
254
THRUST RING , Replaced By: N915065018101
256
SEAL RING COMPRESSED AIR LINE TO DOUBLE FITTING
258
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR,A 027955 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
258
LINE , Replaced By: A3414207826
260
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
262
GLAND , Replaced By: A0019901167
264
THRUST RING , Replaced By: N915065018101
266
SEAL RING COMPRESSED AIR LINE TO DOUBLE FITTING
268
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING
268
LINE , Replaced By: A3414207926
270
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
272
GLAND , Replaced By: A0019901167
274
THRUST RING , Replaced By: N915065018101
276
SEAL RING COMPRESSED AIR LINE TO DOUBLE FITTING
278
FITTING LINE CONNECTION
278
FITTING
280
BRACKET COMPRESSED AIR LINE MOUNTING
282
CLAMP
282
CLAMP , Replaced By: A3049950120
284
SCREW LINE TO CROSS AND SIDE MEMBERS
286
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
288
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
290
NUT CLAMP TO BRACKET
350
LINE
352
UNION NUT BUTT SCREW CONNECTION
354
GLAND LINE CONNECTION
356
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
356
THRUST RING BUTT SCREW CONNECTION
358
SEAL RING , Replaced By: N007603012121
460
LINE FROM AIR RESERVOIR TO T-FITTING
462
LINE FROM T-FITTING TO T-FITTING
464
LINE
466
UNION NUT BUTT SCREW CONNECTION
468
GLAND LINE CONNECTION
470
THRUST RING BUTT SCREW CONNECTION
470
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
472
SEAL RING , Replaced By: N007603012121
474
T-FITTING , Replaced By: A0009902370
480
BRAKE VALVE
482
CUPBOSCH
484
CUPBOSCH
486
VALVE DISCTO 000 429 48 30
488
SCREW BRACKET TO CROSS MEMBER
488
SCREW
490
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
492
O-RING CHECK VALVE TO AIR RESERVOIR
494
THRUST RING CHECK VALVE TO AIR RESERVOIR
494
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
496
SEAL RINGTO 376 131 74 01
498
NUT CHECK VALVE TO AIR RESERVOIR
500
ELBOW FITTING
502
DOUBLE FITTING ,376447
504
LOCK WASHER , Replaced By: N912004010102
506
NUT BRACKET TO FRAME
508
ROD
510
NUT TAIL LAMP TO BRACKET
512
ANGLE JOINT SHIFTING CYLINDER TO SHIFT LEVER
514
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
516
WASHER TRAILER PLUG SOCKET TO BRACKET
518
COTTER PIN STRAP TO BRACKET
540
LINE FROM TRUCK-TRACTOR BRAKE VALVE TO DOUBLE FITTING
540
LINE BRAKE VALVE,CONNECTION "A"
542
LINE FROM TRAILER BRAKE VALVE TO SHUT-OFF COCK
542
LINE FROM DOUBLE FITTING TO BRAKE LINE COUPLING
542
LINE FROM FITTING TO BRAKE LINE COUPLING
542
LINE FROM FITTING TO BRAKE LINE COUPLING
546
UNION NUT BUTT SCREW CONNECTION
548
GLAND LINE CONNECTION
550
THRUST RING BUTT SCREW CONNECTION
550
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
552
SEAL RING , Replaced By: N007603012121
554
DOUBLE FITTING ,376447
999
NUT
999
YOKE PISTON ROD
999
ROD PISTON ROD
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SPRING TWO-CIRCUIT BRAKE VALVE
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
VALVE , Replaced By: A0004320807
999
STOP BRAKE PEDAL
999
BRACKET RELEASE SPRING
999
HOSE , Replaced By: A3769978182
999
DRAG LINK , Replaced By: A3454608605
999
DRAG LINK , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
RESERVOIR"1,2",A 069205A 90243
999
SHOULDER RINGTO 341 400 71 02,341 400 72 02
999
SIDE RINGTO 341 400 03 02,341 400 05 02, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
DISC WHEEL (8-HOLE RIM), USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
PIPE ,A 069204
999
BRACKET RIGHT
999
BRACKET LEFT
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
BALL PIVOT
999
DRAG LINK , Replaced By: A3274601605
999
SPHERICAL RING REAR DISC WHEEL
999
VALVE , Replaced By: A0024314006
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
VALVE (RELAY VALVE) WABCO
999
SWITCH RANGE SELECTOR LOCK
999
DUST CAP
999
SPRING
999
BALL SOCKET BOTTOM
999
BALL SOCKET TOP
999
DRAG LINK END
999
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLAMP , Replaced By: A0003380645
